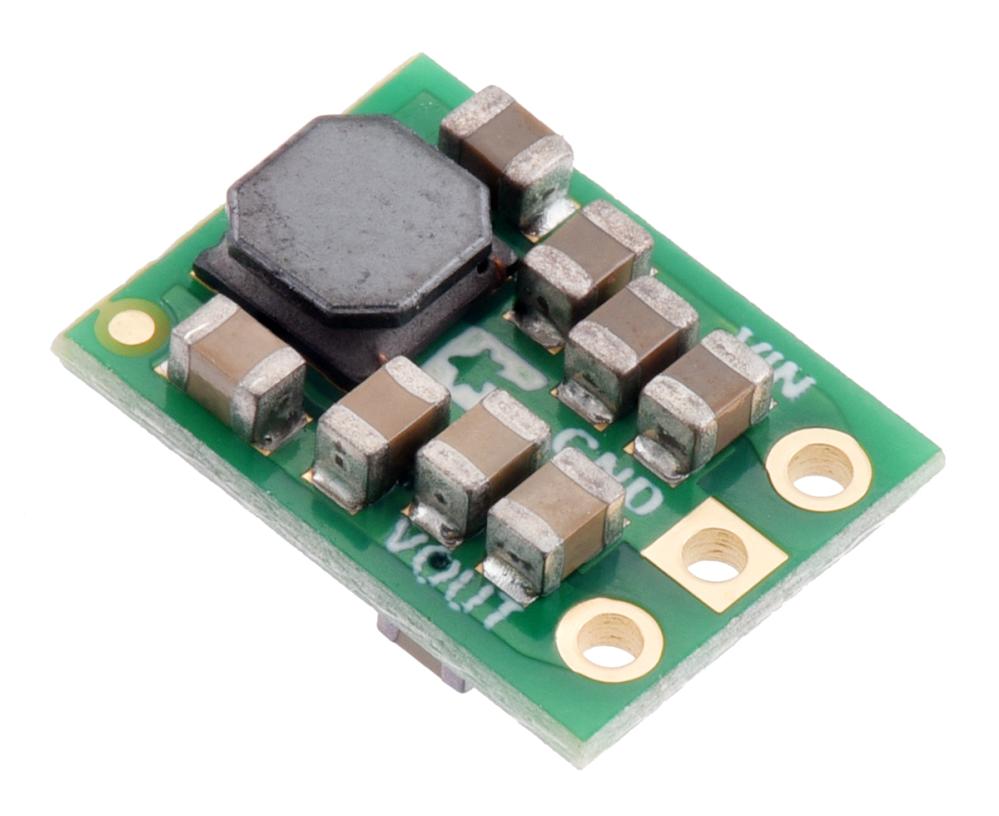

Switchregulator step-up/step-down 5V 1A

Art nr: 41018992 - Pololu
Handla denna produkt Switchregulator step-up/step-down 5V 1A
pris 99 SEK
Inklusive 25% moms
Lagervara, 30 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

The S13VxF5 family of efficient switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters) use a buck-boost topology to convert both higher and lower input voltages to a regulated 5 V output. They take input voltages from 2.8 V to 22 V and increase or decrease them as necessary, offering a typical efficiency of over 85% and typical continuous output currents between 1 A and 3 A . The flexibility in input voltage offered by this family of regulators is especially well-suited for battery-powered applications in which the battery voltage begins above 5 V and drops below as the battery discharges. Without the typical restriction on the battery voltage staying above the required voltage throughout its life, new battery packs and form factors can be considered.

The regulators have under-voltage lockout, output over-voltage protection, and over-current protection. A thermal shutdown feature also helps prevent damage from overheating and a soft-start feature limits the inrush current and gradually ramps the output voltage on startup. The larger 3 A S13V30F5 has reverse-voltage protection up to 20 V, but the S13V10F5, S13V15F5, and S13V20F5 do not.

* Input voltage: 2.8 V to 22 V
* Output voltage: 5 V with 3% accuracy

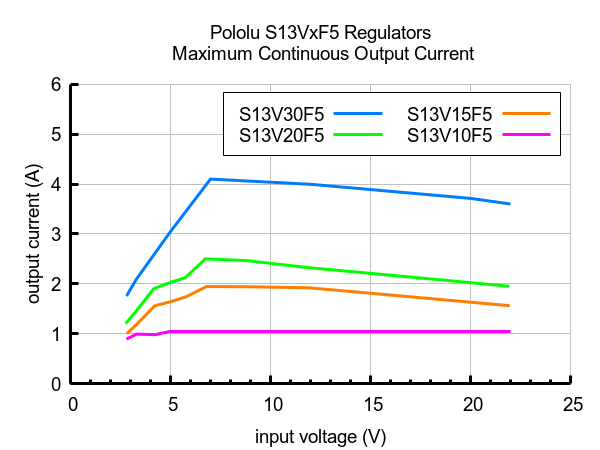

* Typical maximum continuous output current: 1 A (see the maximum continuous output current graph below)

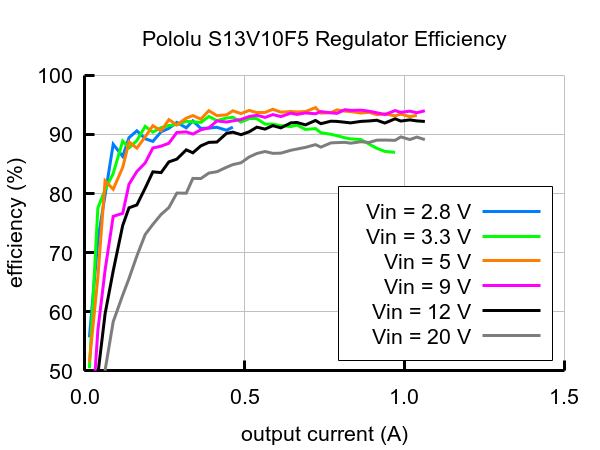

* Typical efficiency of 85% to 95%, depending on input voltage and load (see the efficiency graph below)

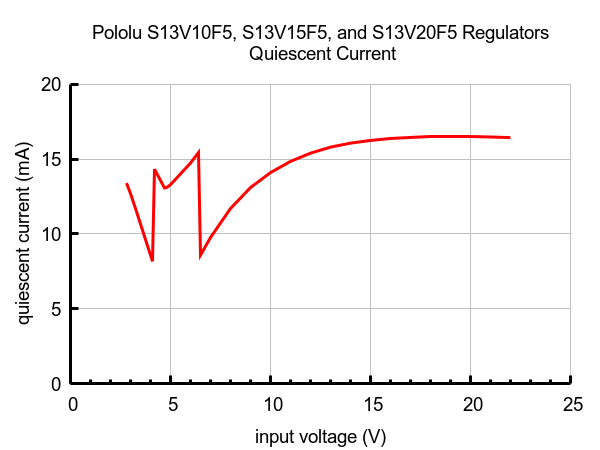

* 10 mA to 20 mA typical no-load quiescent current (see the quiescent current graph below)
* Input under-voltage lockout and output over-voltage protection
* Soft-start feature limits inrush current and gradually ramps output voltage
* Over-current protection and over-temperature shutoff
* 1 A output current limit
* Fixed switching frequency of ~500 kHz

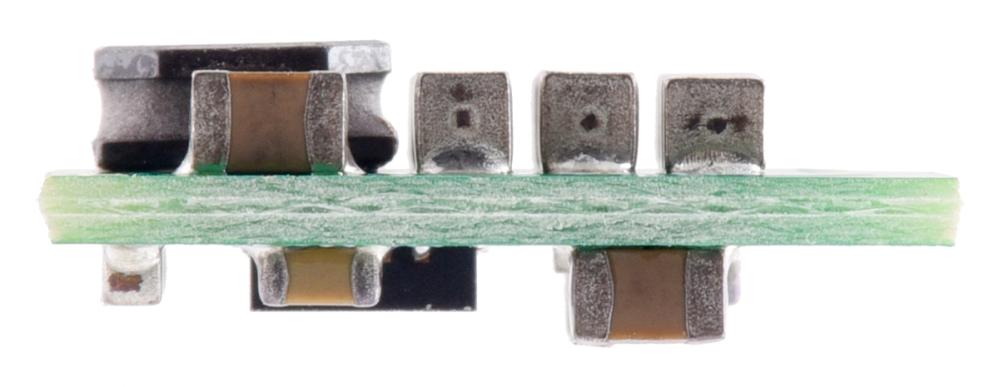

* Compact size: 8.9 × 12.1 × 4.2 mm

Egenskaper

Egenskaper/attribut för denna produkt
Attribut Värde
Ström (DC)
1 A
Utgångar
1
Spänning (DC)
5 V
  • SKU:

    41018992
  • MPN:

    4083
