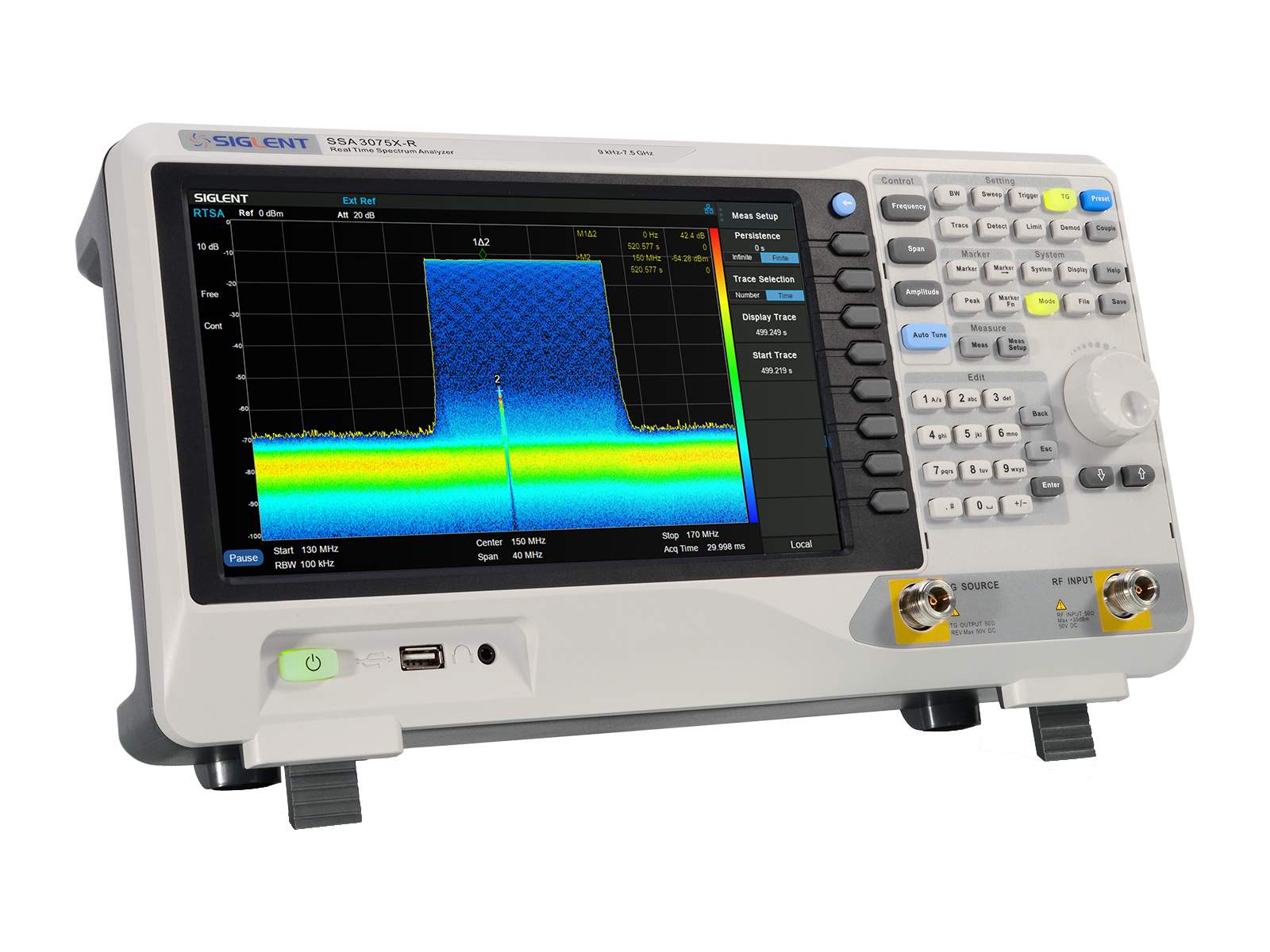

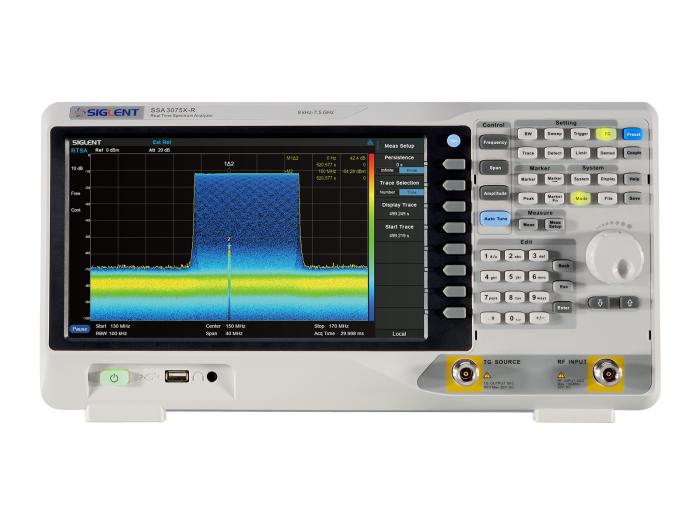

Spektrumanalysator realtid 3.2GHz SSA3032X-R (inkl TG) (SSA3032X-R - 3.2GHz)

Art nr: 41018338 - Siglent
Handla denna produkt Spektrumanalysator realtid 3.2GHz SSA3032X-R (inkl TG)
pris 57 240 SEK
Inklusive 25% moms
Slut i lager

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

The SSA3000X-R real-time spectrum analyzer can set the frequency template trigger function to seamlessly collect and analyze signals. It is perfect tool for observation and analysis of small, elusive and frequency hopping signals.

· Optional real-time analysis bandwidth: standard 25 MHz, 40 MHz
· Multiple display modes: Density, Spectrogram, PvT, 3D.
· Configurable frequency mask trigger function

SSA3000X-R series RTSA succeed the ease-to-use UI style of SVA1000X and SSA3000X Plus series. It adopts 10.1 inch touch screen and supports external mouse & keyboard. Connection to PC is possible via LAN or USB interface. Free EasySpecturm software and Web Control support control of the unit, send SCPI commands, save files and screen shots.

SSA3000X-R is not only a RTSA, but a versatile instruments.

· RTSA mode: Analyze elusive signals in real-time.
?· SA mode: Perform as a normal spectrum analyzer - reflection and advanced measurements.
?· Modulation analysis: Up to 40 MHz (option) wideband modulation analysis.
?· EMI Receiver Mode: Newly added EMI reicever Mode to perform EMI-pre compliance tests.

Frequency Range SSA3050X-R:9 kHz ~ 5.0 GHz
SSA3075X-R:9 kHz ~ 7.5 GHz
Resolution Bandwidth 1 Hz ~ 3 MHz
Displayed Average Noise Level -165 dBm/Hz
SSB Phase Noise < -98 dBc/Hz@1 GHz
Real Time Band Width 25 MHz, 40 MHz (Option) Tracking Generator SSA3050X-R:100 kHz ~ 5.0 GHz
SSA3075X-R:100 kHz ~ 7.5 GHz
Total Amplitude Accuracy < 0.7 dB
SFDR 60 dB
100% POI 7.20 µs
RTSA Measurement Density, Spectrogram, 3D, PvT
Touch Screen Multi Touch, Mouse and Keyboard supported
Advanced Measurement CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor

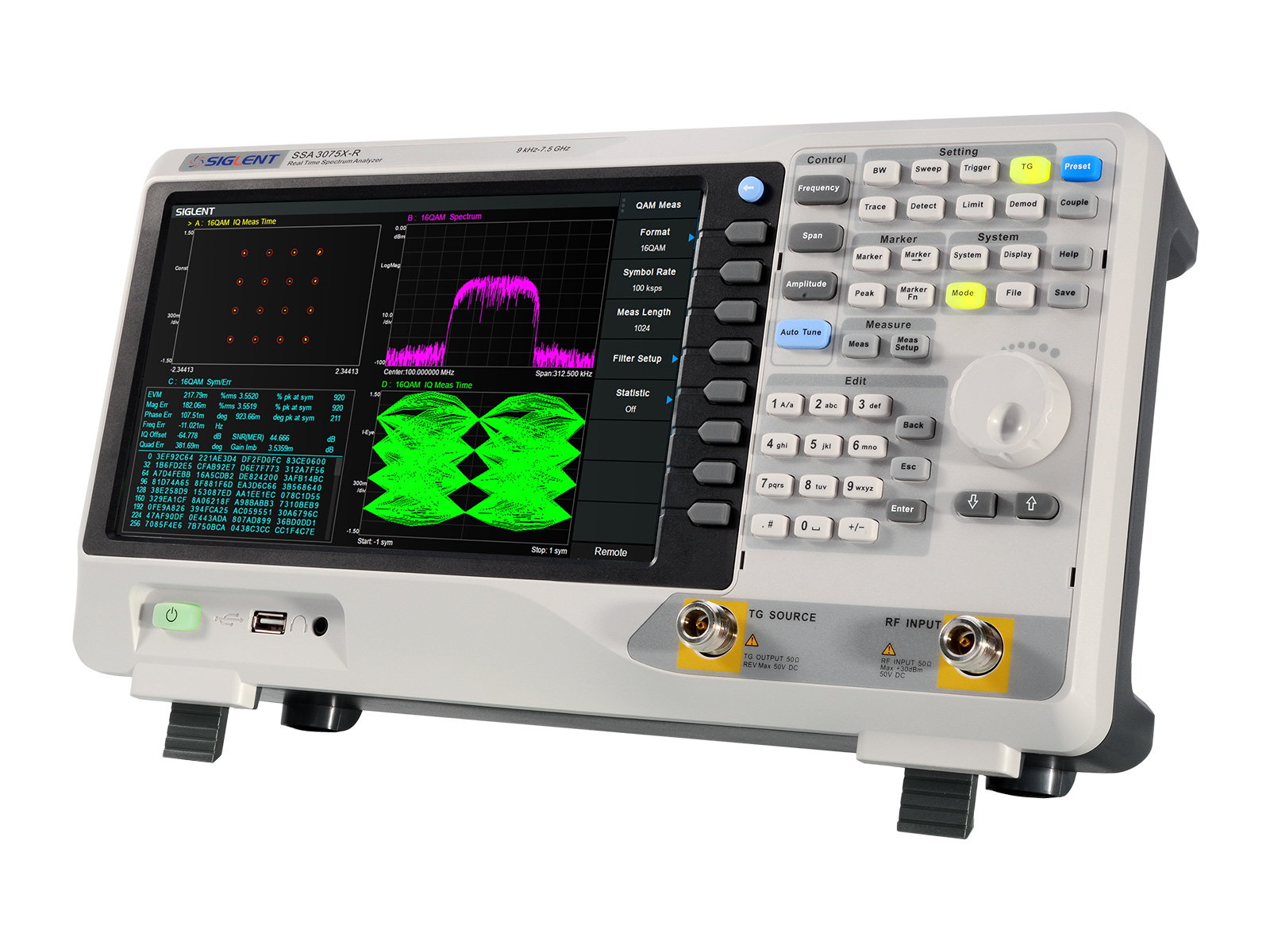

Modulation Analysis AM, FM, ASK, FSK, MSK, PSK, QAM
Reflection Measurement VSWR measurement using Reflection Bridge
EMI Test EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line

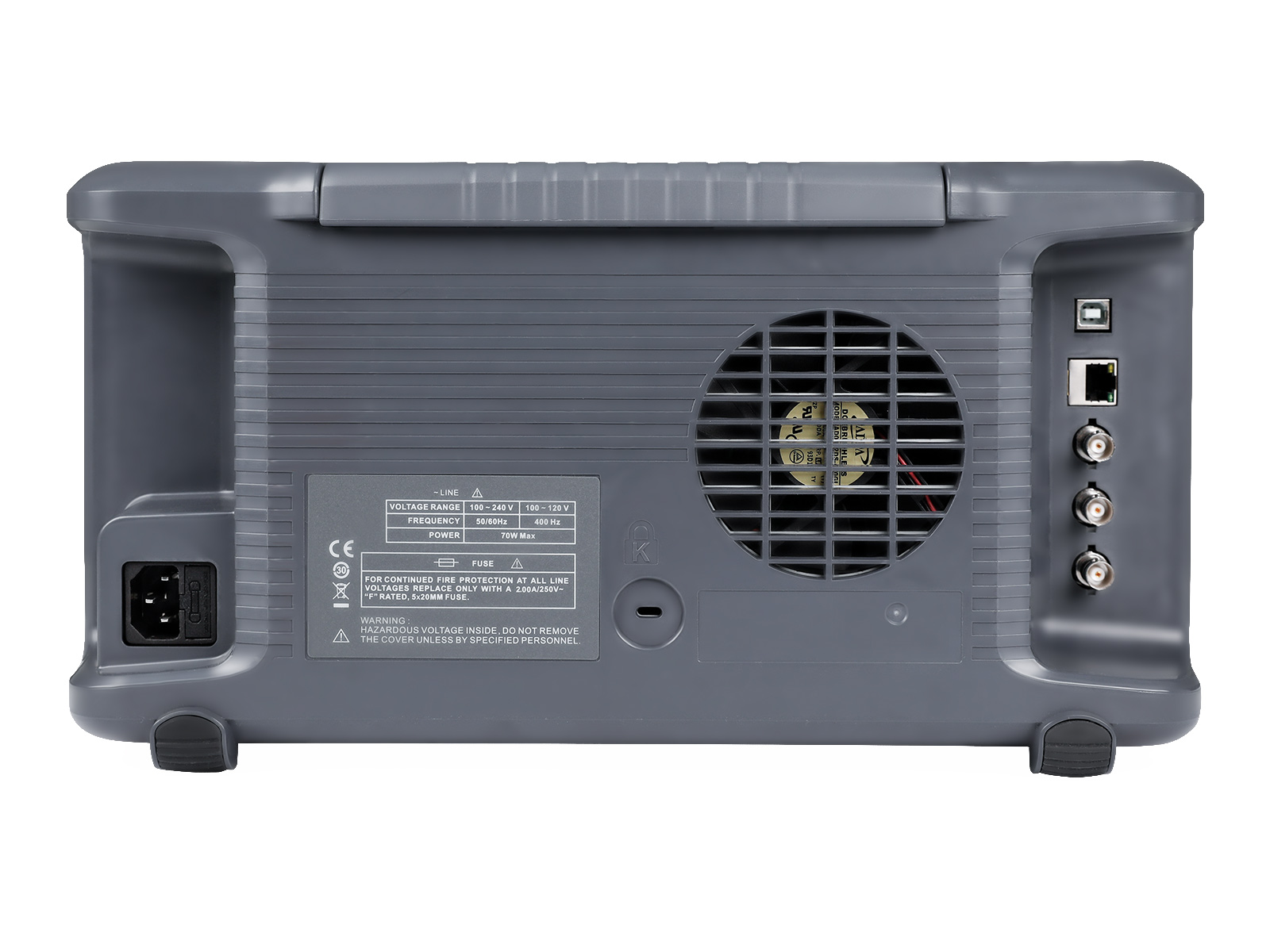

Communication Interface LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explorer

Produktinformation

  • SKU:

    41018338
  • MPN:

    SSA3032X-R
