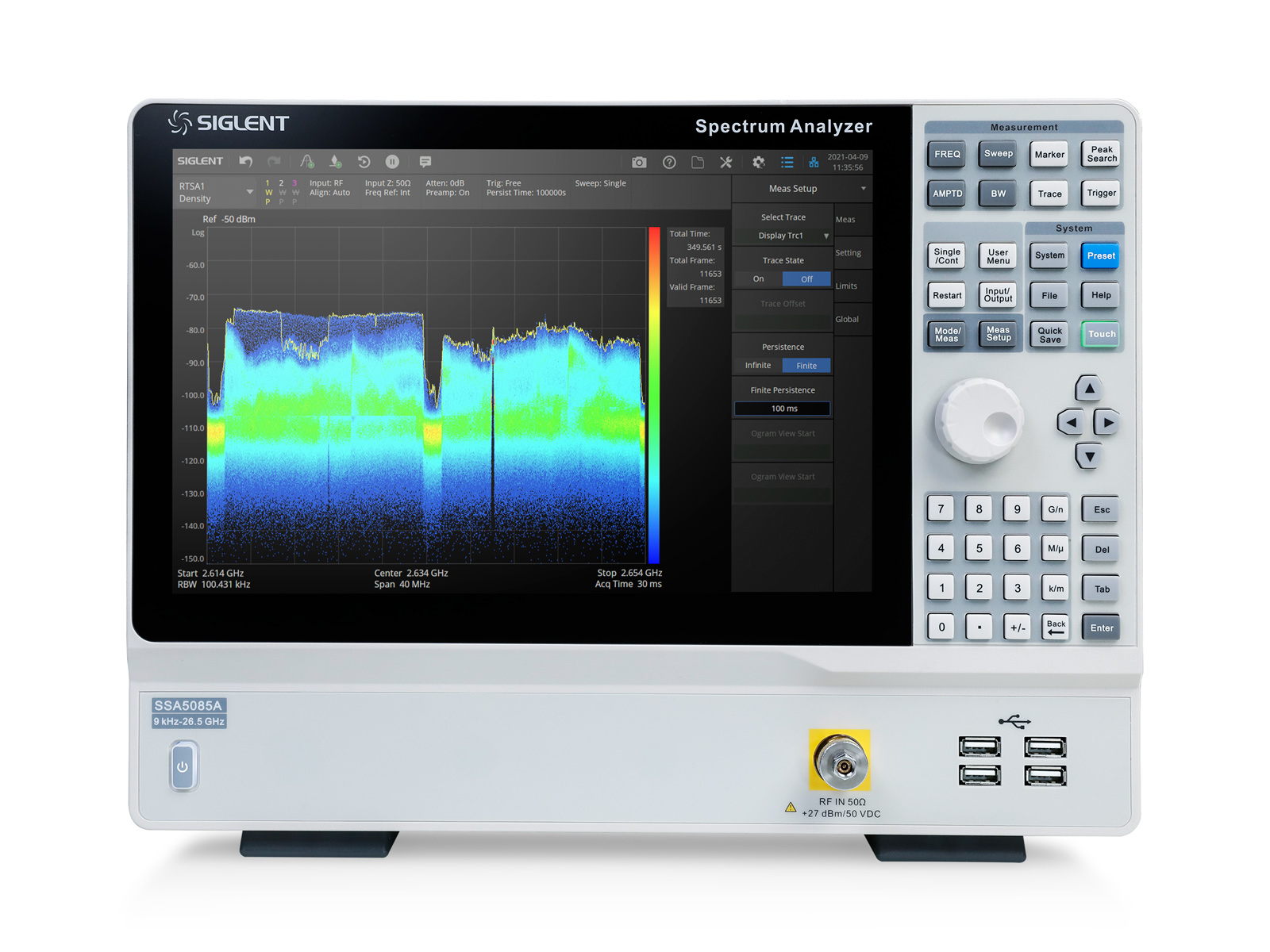

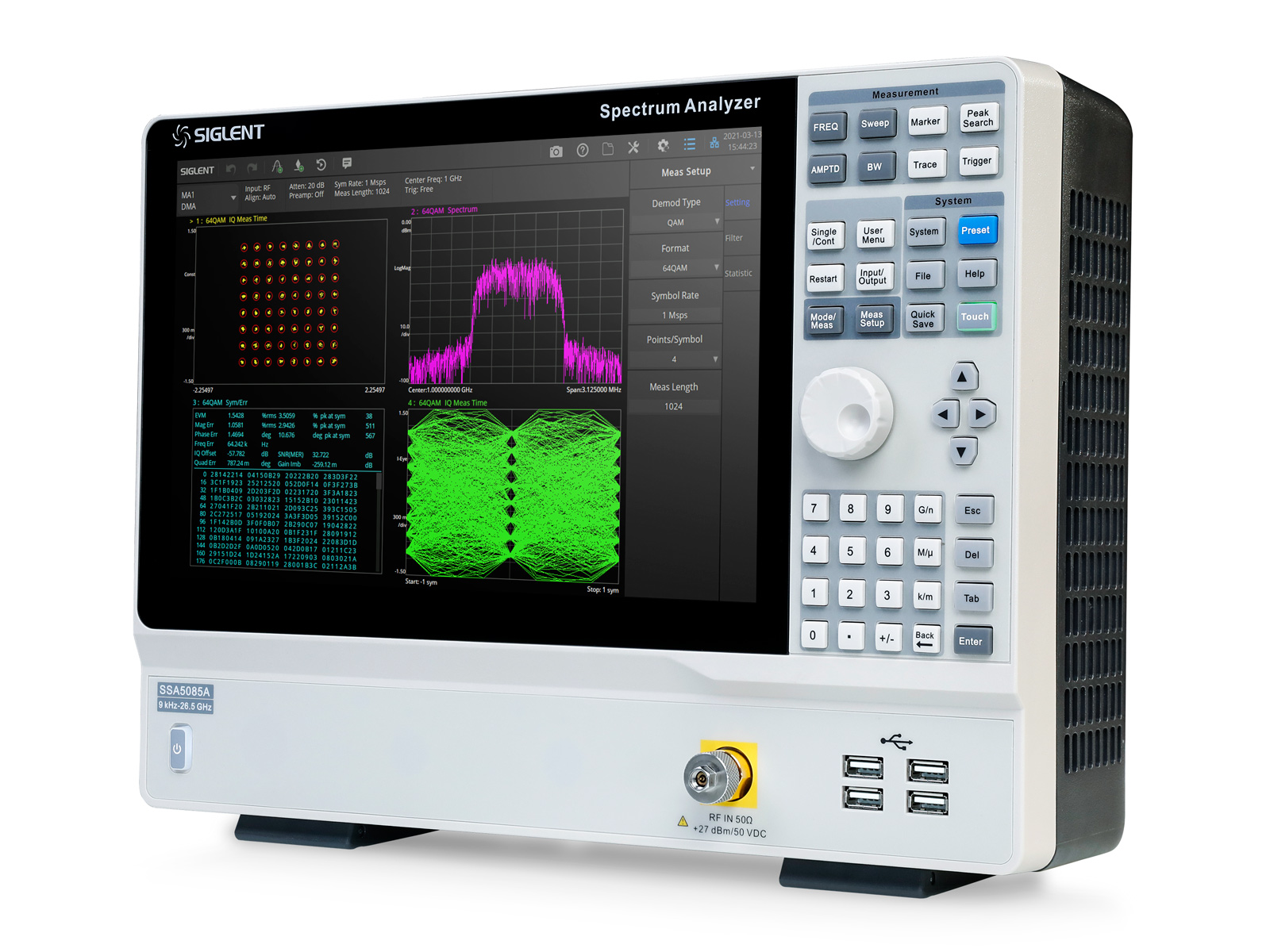

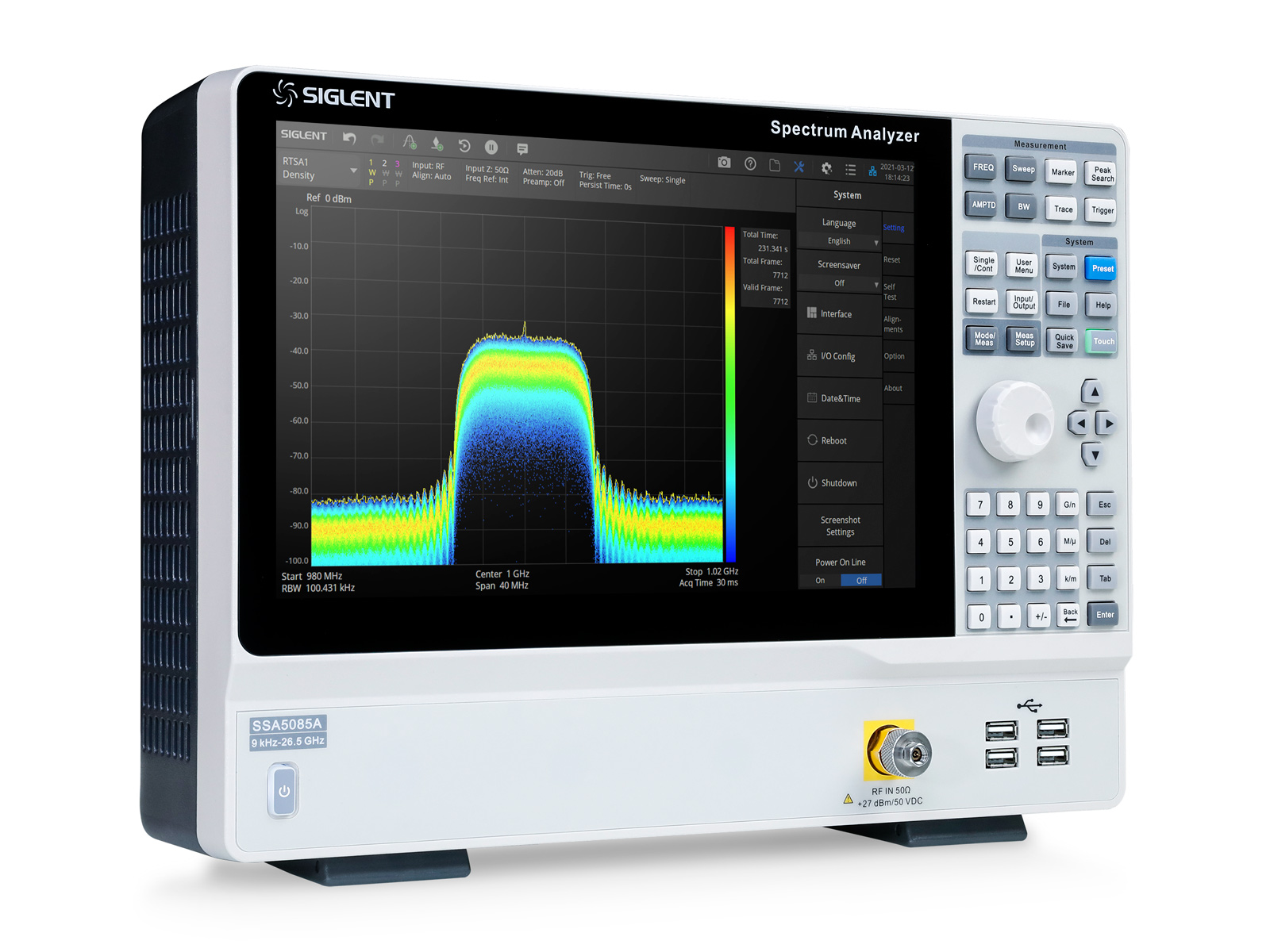

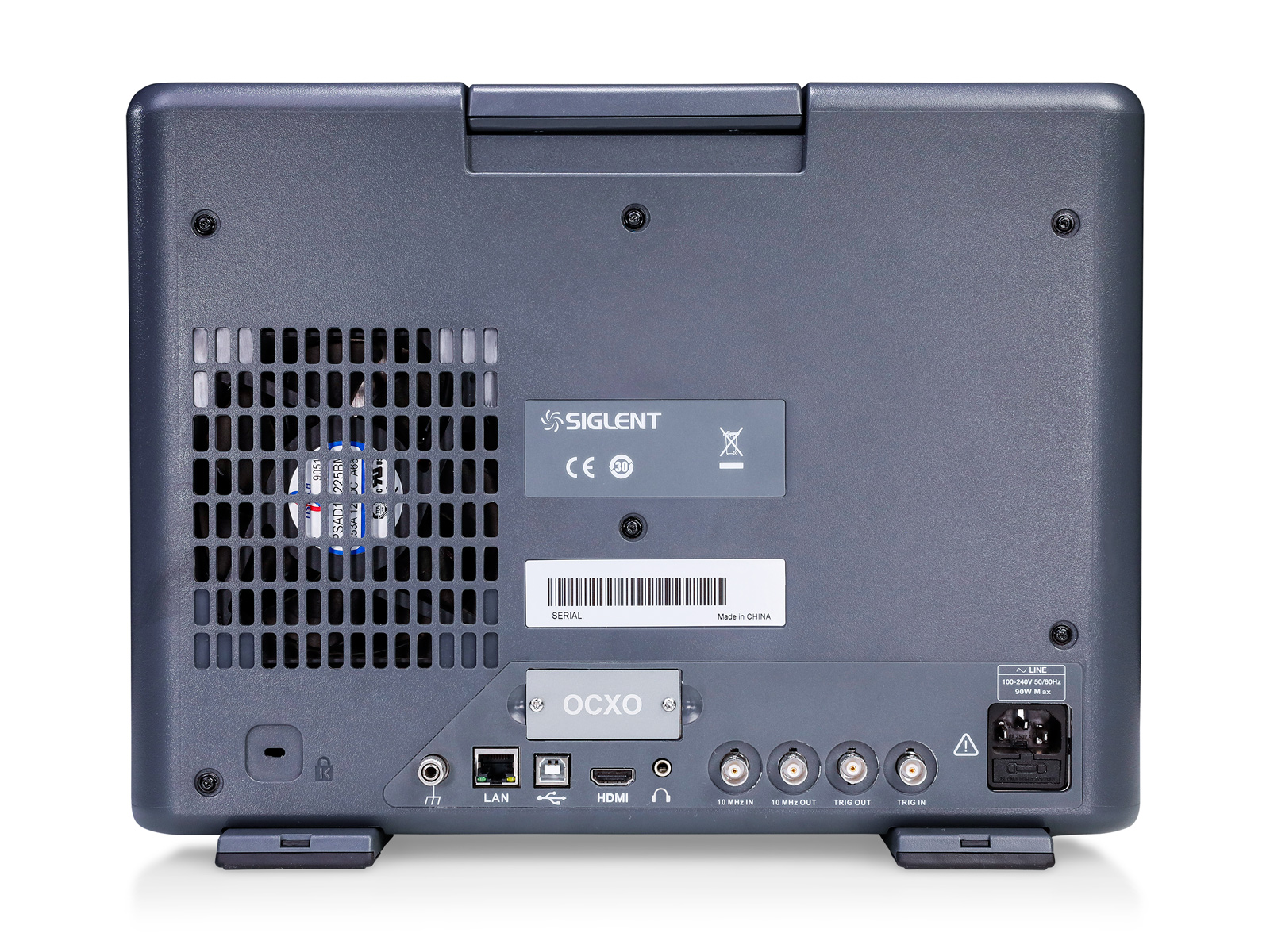

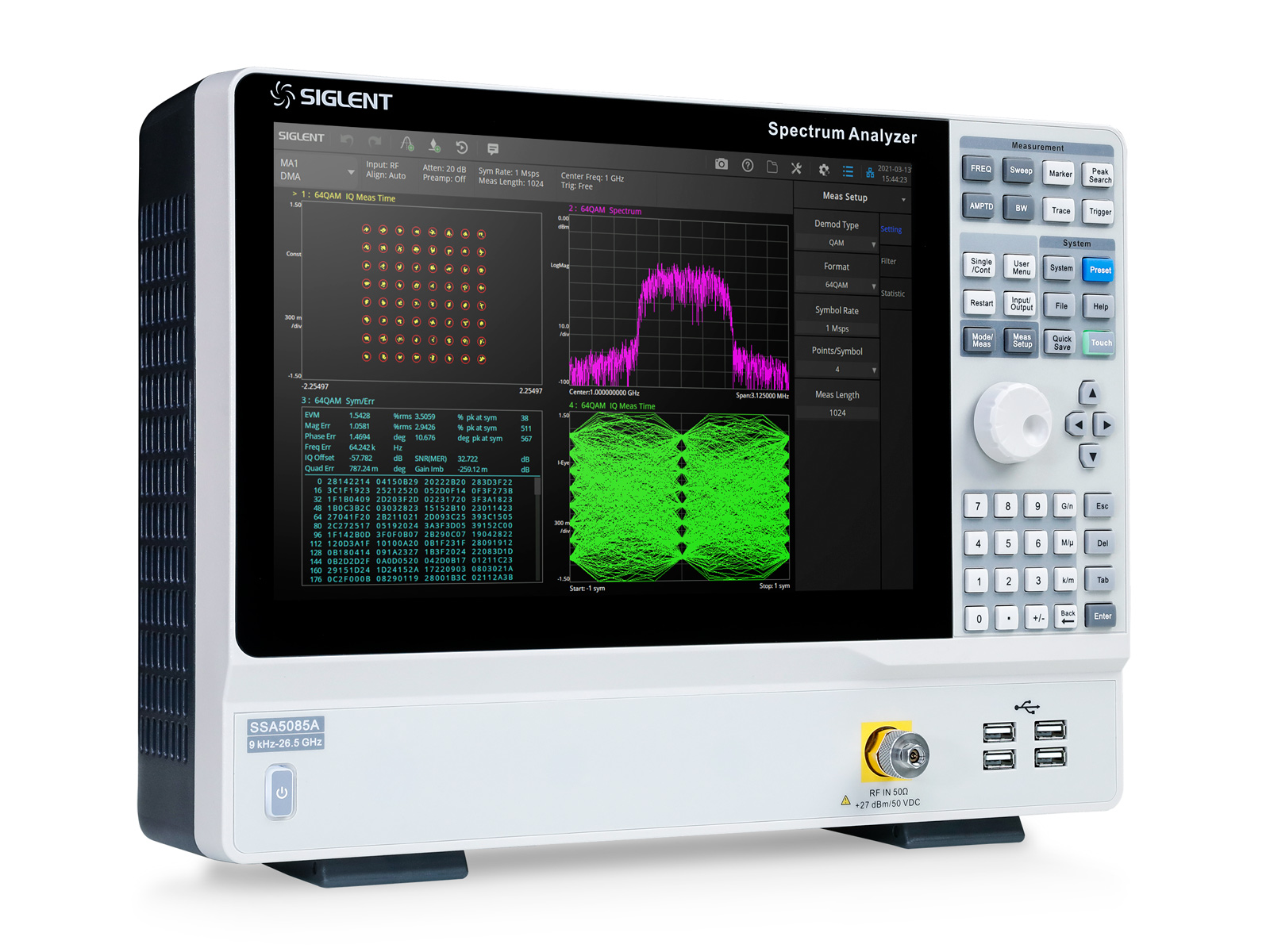

Spektrumanalysator 26.5GHz Siglent SSA5085A (inkl RTA1 + 40MHz RTBW)

Art nr: 41019357 - Siglent
Handla denna produkt Spektrumanalysator 26.5GHz Siglent SSA5085A (inkl RTA1 + 40MHz RTBW)
pris 280 550 SEK
Inklusive 25% moms
Slut i lager
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

Kampanjerbjudande till 31/12 2023: Köp SSA5000A och få optionerna RTA1 realtidsanalys samt 40MHz Real-Time Bandwith på köpet (värde 66932kr exkl moms).


The SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With a capability of real-time spectrum analysis, the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.
Applications include broadcast monitoring/evaluation, cellular site, IoT, wlan and bluetooth surveying, research and development, education, production, and maintenance.
* Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz/26.5 GHz
* -165 dBm/Hz Displayed Average Noise Level (Typ.)
* -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
* 25 MHz/40 MHz Analysis Bandwidth
* 100% POI 7.20 µs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT
* Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
* Analog Modulation Analysis and Vector Digital Modulation Analysis
* 12.1 inch Multi-Touch Screen, HDMI output
* Web Browser Remote Control on PC and Mobile Terminals and File Operation

Produktinformation

  • SKU:

    41019357
  • MPN:

    SSA5085A
