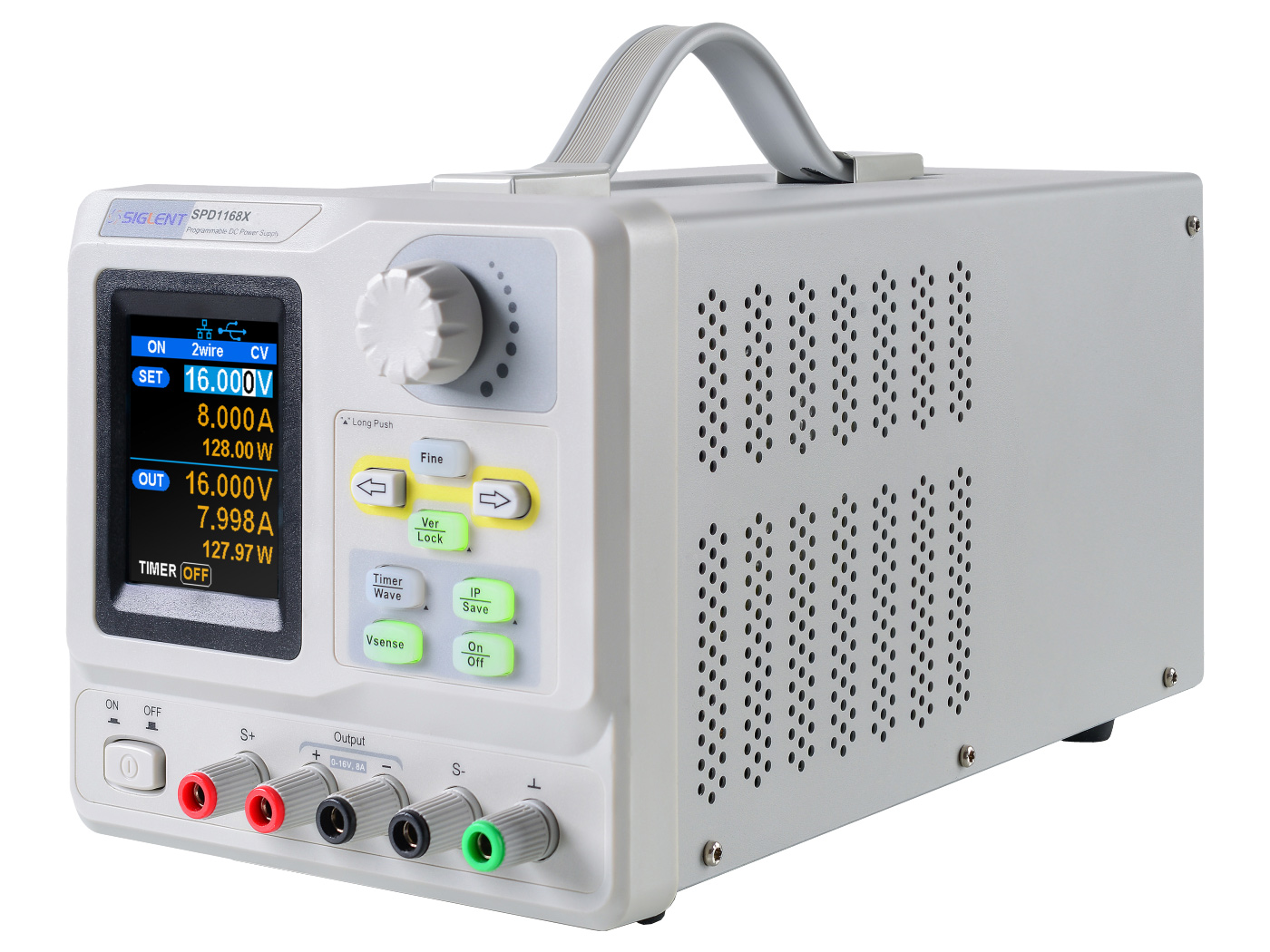

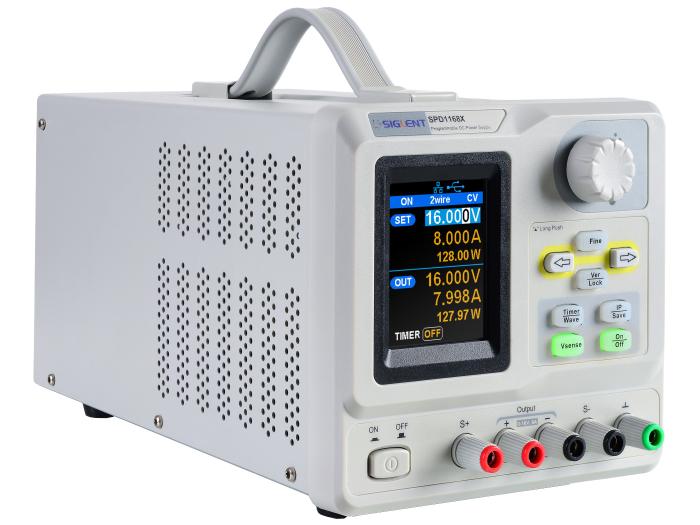

Labbaggregat Siglent 1x 0-16V 0-8A SPD1168X

Art nr: 41016616 - Siglent
Handla denna produkt Labbaggregat Siglent 1x 0-16V 0-8A SPD1168X
pris 3 405 SEK
Inklusive 25% moms
Lagervara, 2 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

SPD1168X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability and real time wave display, to deliver high performance and ease-of-use. The SPD1168 features a high precision programmable output capable of delivering up to 16 V and also includes a 4-wire sense function for more accurate voltage sourcing, Internal 5 groups of system parameter save/recall especially for long leads or high resistance connections. Includes PC software: Easypower, supports SCPI, LabView. Also there are additional output short and overload protect functions to assist in production and development applications.

Features:

* Single path high-precision programmable voltage output:16 V/8 A,total power up to 128 W
* Stable, reliable, Low ripple and noise:= 350 uVrms/3 mVpp; < 2 mArms
* Fast transient response time: < 50 µs
* 5 digit Voltage, 4 digit Current Display, Minimum Resolution: 1 mV/1 mA
* Supports front panel timing output functions
* 2.8 inch true color TFT- LCD 240 *320 display
* 2 types of output modes:Two-wire output mode, 4-wire compensation output mode,Maximum compensation voltage 1V.
* 100/120/220/230 V compatible design to meet the needs of different power grids
* Intelligent temperature-controlled fanreduces noise
* Clear graphical interface, with the waveform display function
* Internal 5 groups of system parameter save/recall
* Includes PC software: Easypower, supports SCPI, LabView driver

Included accessories:

1 x USB Cable 1 x Output Test Cord
1 x Quick Start
1 x Product Certificate
1 x Calibration Certificate
1 x Power Cord 220V EU

Produktinformation

  • SKU:

    41016616
  • MPN:

    SPD1168X
