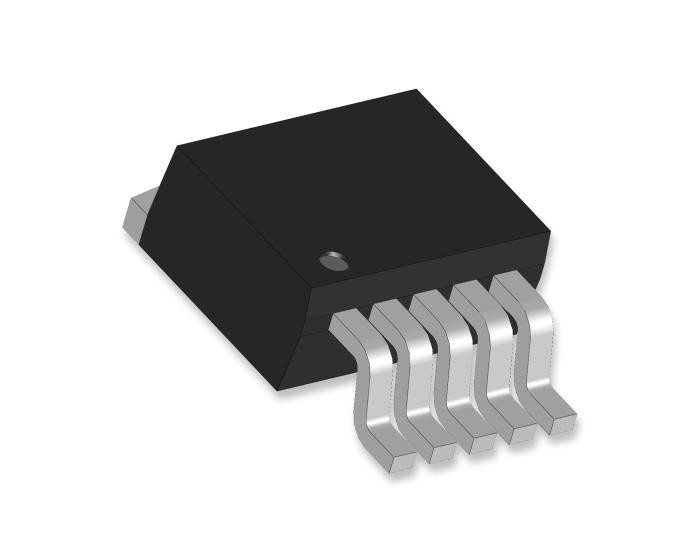

IXDD614YI TO263-5 Low Side Driver 14A

Art nr: 41015632
Handla denna produkt IXDD614YI TO263-5 Low Side Driver 14A
pris 89 SEK
Inklusive 25% moms
Lagervara, 9 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

The IXDD614 high-speed gate driver is especially well suited for driving the latest IXYS MOSFETs and IGBTs. Each output can source and sink 14A of peak current while producing voltage rise and fall times of less than 30ns. Internal circuitry eliminates cross-conduction and current "shoot-through," making the driver virtually immune to latch up. Low propagation delay with fast rise and fall times make the IXD_614 family ideal for high-frequency and high-power applications.

Features:
* 14A Peak Source/Sink Drive Current
* Wide Operating Voltage Range: 4.5V to 35V
* -40°C to +125°C Extended Operating Temperature Range
* Logic Input Withstands Negative Swing of up to 5V
* Low Propagation Delay Time
* Low, 10µA Supply Current
* Low Output Impedance

Applications:
* Efficient Power MOSFET and IGBT Switching
* Switch Mode Power Supplies
* Motor Controls
* DC to DC Converters
* Class-D Switching Amplifiers
* Pulse Transformer Driver

Egenskaper

Egenskaper/attribut för denna produkt
Attribut Värde
Kapsel
TO-263-5
RoHS
RoHS-kompatibel
  • SKU:

    41015632
