Produktbeskrivning

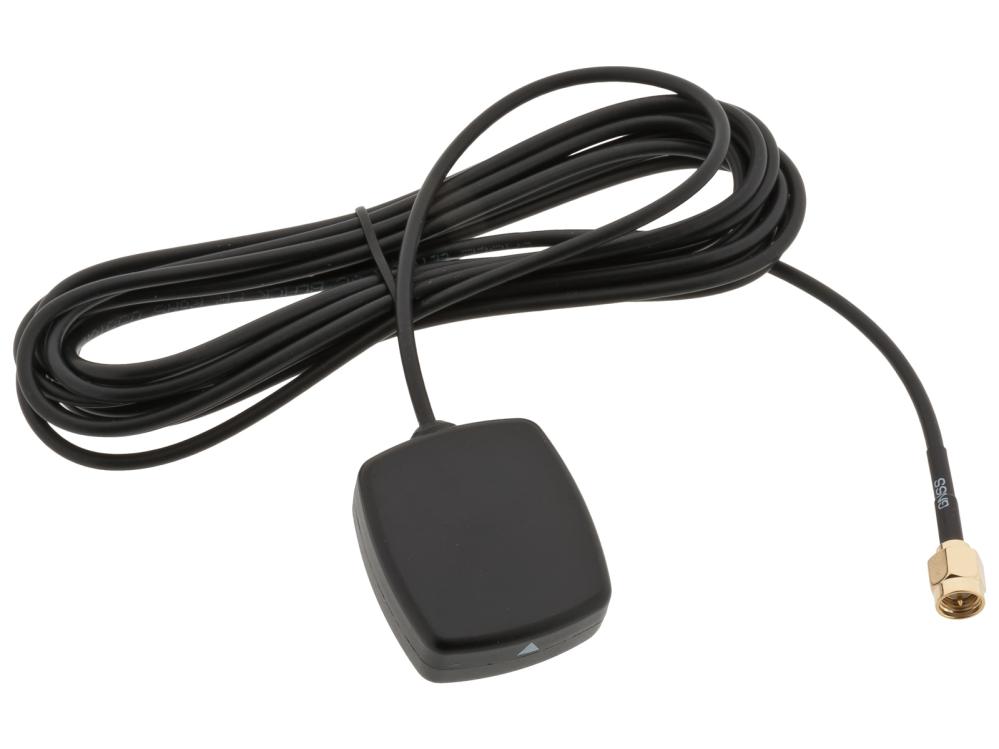

Aktiv GNSS-antenn med stöd för GPS, GLONASS, BeiDou, Galileo och QZSS. Antennen har magnetisk eller självhäftande montering samt integrerat filter och lågbrusförstärkare. Konstruktionen är jordplansoberoende och IP67-klassad.
- Modell: 2J4D01MPCF
- GNSS-system: GPS, GLONASS, BeiDou, Galileo, QZSS
- Frekvensområde: 1561-1606 MHz
- Förstärkning: 28 dB vid 2.7 V
- Brusfaktor: 1.5 dB typ.
- Matningsspänning: 1.5-3.6 V
- Strömförbrukning: 9 mA typ.
- Effektförbrukning: 24.3 mW typ.
- Polarisation: RHCP
- Impedans: 50 Ω
- Return loss: ≤ -15 dB
- VSWR: ≤ 1.4:1
- Patchstorlek: 25x25x4 mm
- Montering: Magnetisk eller självhäftande
- Mått: 41x34x13.5/14.5 mm
- Kabel: 3 m RG174
- Kontakt: SMA hane
- ESD-skydd: 2 kV
- Arbetstemperatur: -40°C till +85°C
- Lagringstemperatur: -40°C till +85°C
- Kapslingsklass: IP67
