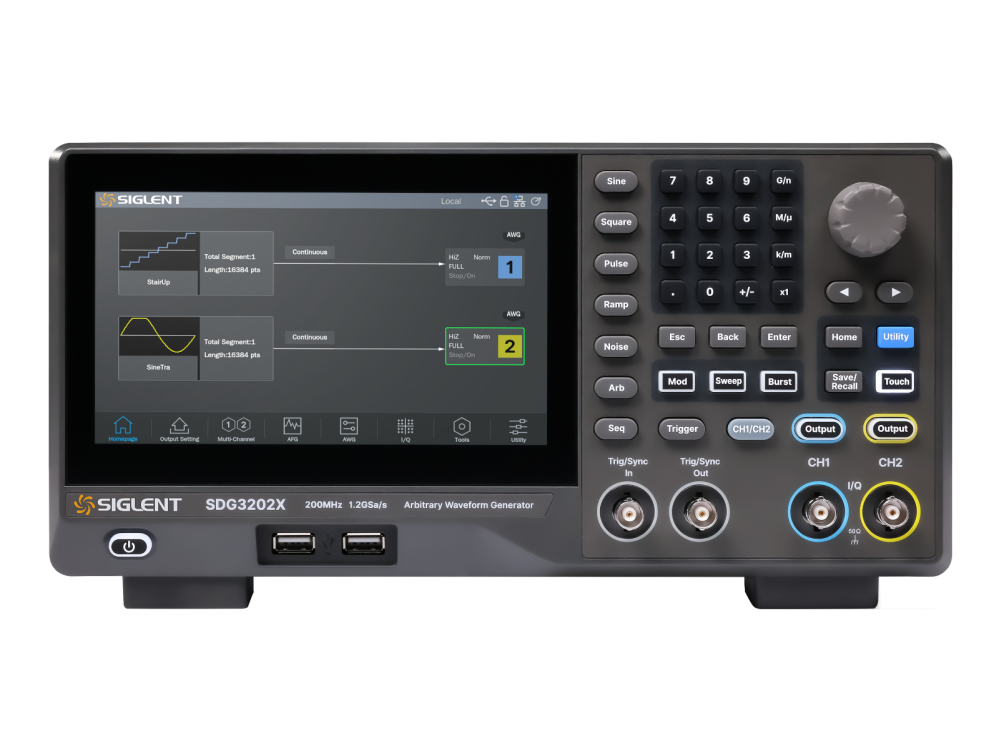

The SDG3000X series dual-channel function/arbitrary waveform generator has a maximum bandwidth of 200MHz, an excellent sampling system specifications of 1.2 GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, it adopts the innovative TrueArb and EasyPulse technologies, which overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses, and can provide users with high-fidelity, low-jitter signals. In addition, the SDG3000X also provides PRBS pattern generation, sequence, dual pulse, and vector signal output functions to meet a wider range of application needs.
- Output frequency: 200 MHz
- Sampling rate: 1.2 GSa/s
- Vertical resolution: 16-bit
- Arbitrary waveform length: 20 Mpts (std), 40 Mpts (option)
- Supports dual pulse output function
