Product description

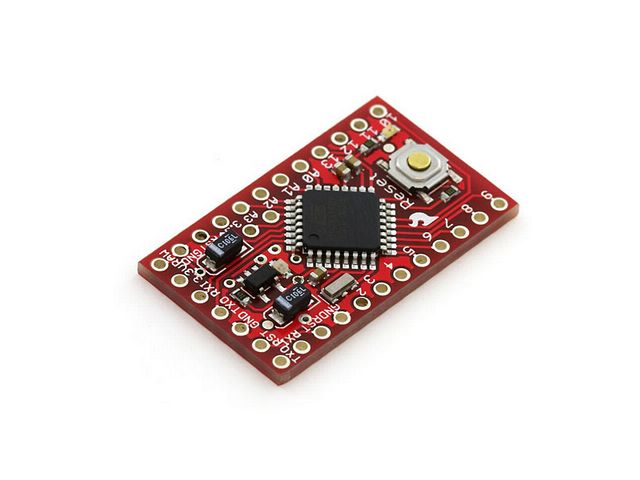

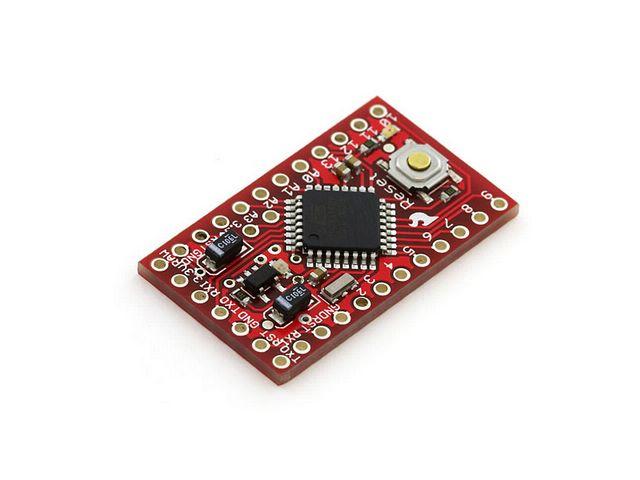

SparkFun's minimal design approach to Arduino. This is a 3.3V Arduino running the 8MHz bootloader (select 'LilyPad' within the Arduino software). The Wee is not a fully certified Arduino board. We're working with Arduino.cc towards certification. You'll know we're close when the boards go from Red to Blue. Future revisions will have multiple changes.
Wee does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.
We really wanted to minimize the cost of an Arduino. The Wee is like the Arduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the LilyPad USB Link (listed below). Wee does not currently support remote reset from the Arduino Software, but we're working on it.
Wee was designed to be... well, Wee. There's nothing there that doesn't need to be.
Features:
ATmega168V running at 8MHz with external resonator (0.5% tolerance)
Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, Accelerometers, sensors, etc) USB connection off board 3.3V regulator DC input 3.3V up to 12V On board Power and Status LEDs
Wee does not come with connectors populated so that you can solder in any connector or wire with any orientation you need.
We really wanted to minimize the cost of an Arduino. The Wee is like the Arduino Mini (same pin out) but to keep the cost low, we used all SMD components, made it two layer, etc. This board connects directly to the LilyPad USB Link (listed below). Wee does not currently support remote reset from the Arduino Software, but we're working on it.
Wee was designed to be... well, Wee. There's nothing there that doesn't need to be.
Features:
ATmega168V running at 8MHz with external resonator (0.5% tolerance)
Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, Accelerometers, sensors, etc) USB connection off board 3.3V regulator DC input 3.3V up to 12V On board Power and Status LEDs
