Product description

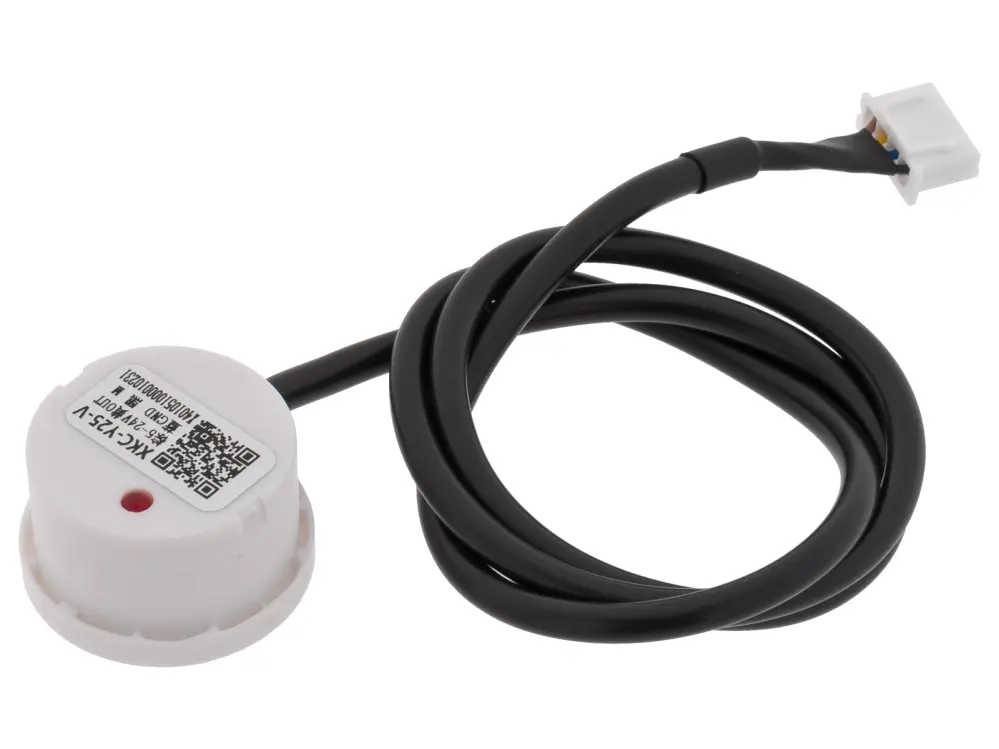

Capacitive, non-contact liquid level sensor. Detects liquids such as water through the walls of non-metallic containers made of materials such as plastic, ceramic, or glass. The sensor is mounted on the outside of a tank, container, or plastic pipe.
The sensitivity can be adjusted using a trimmer potentiometer located under the sensor cover. The output is digital (low = no liquid, high = liquid). An LED indicates the output status.
Specifications:
- Model: XKC-Y25-V
- Operating voltage: 5–24 VDC
- Current consumption: 5 mA
- Detection distance (max): Approx. 20 mm
- Dimensions: Ø28 x 16.5 mm
- Cable length: 500 mm
- High-level output voltage: Same as operating voltage (VCC)
- Low-level output voltage: 0 V
- Output current: 1–50 mA
- Response time: 500 ms

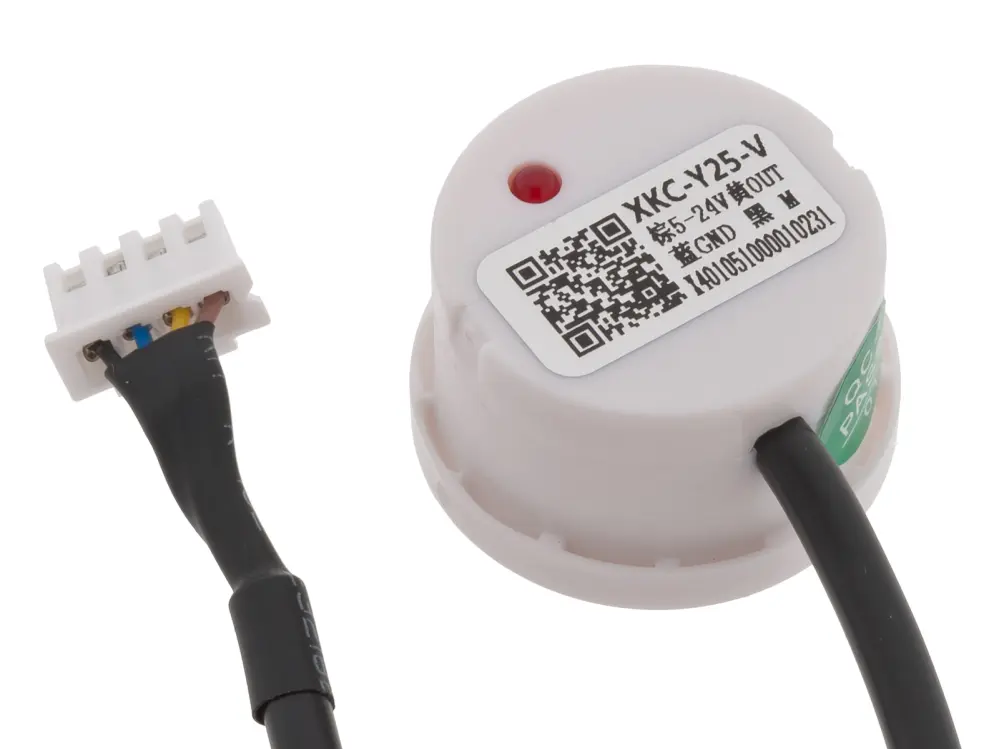

Connections:
- Brown: VCC (5–24 VDC)
- Yellow: Signal
- Blue: GND (0 V)
- Black: Polarity (connect to GND to invert the output)
