Product description

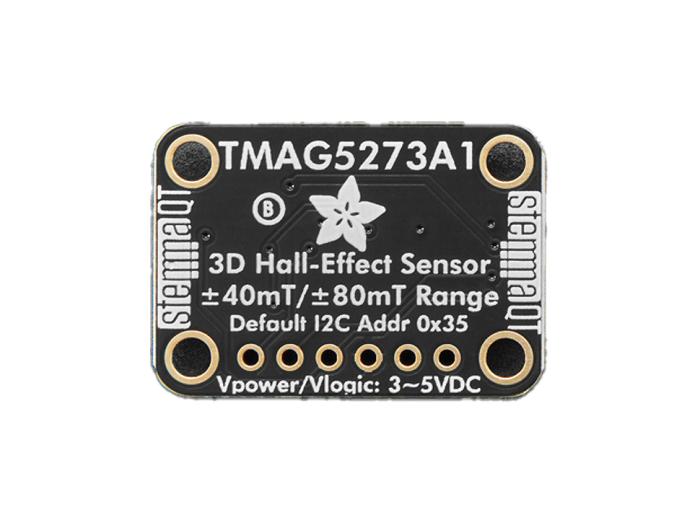

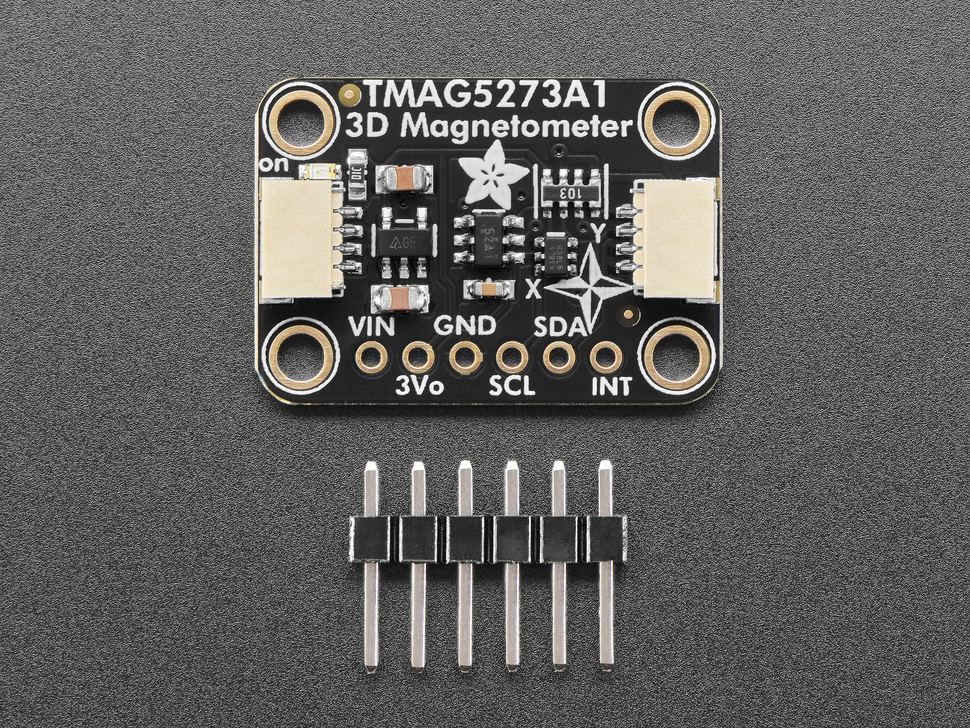

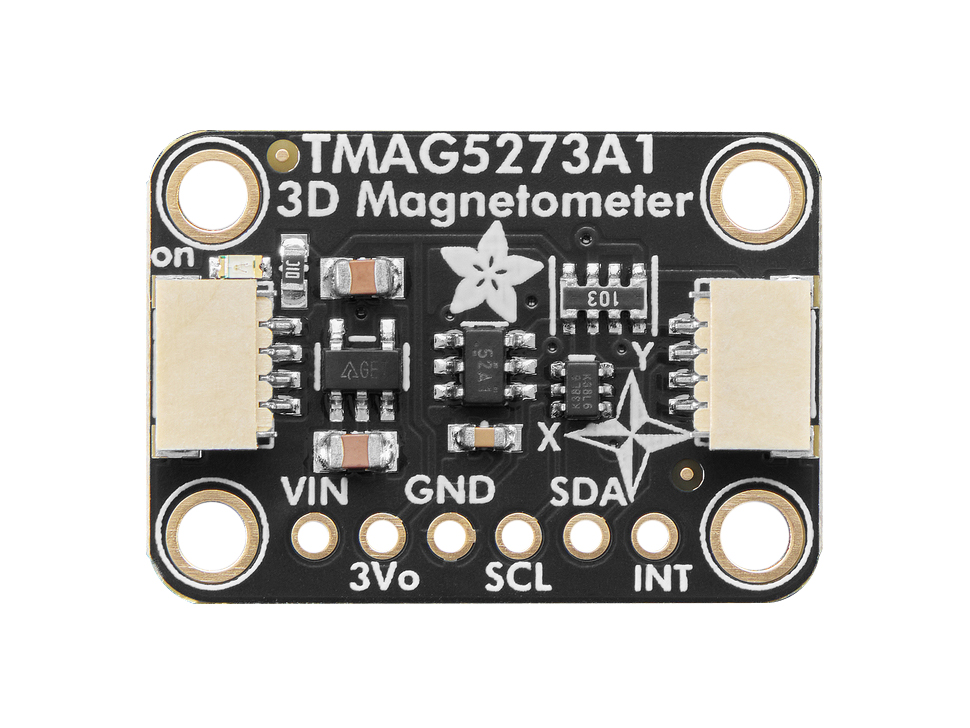

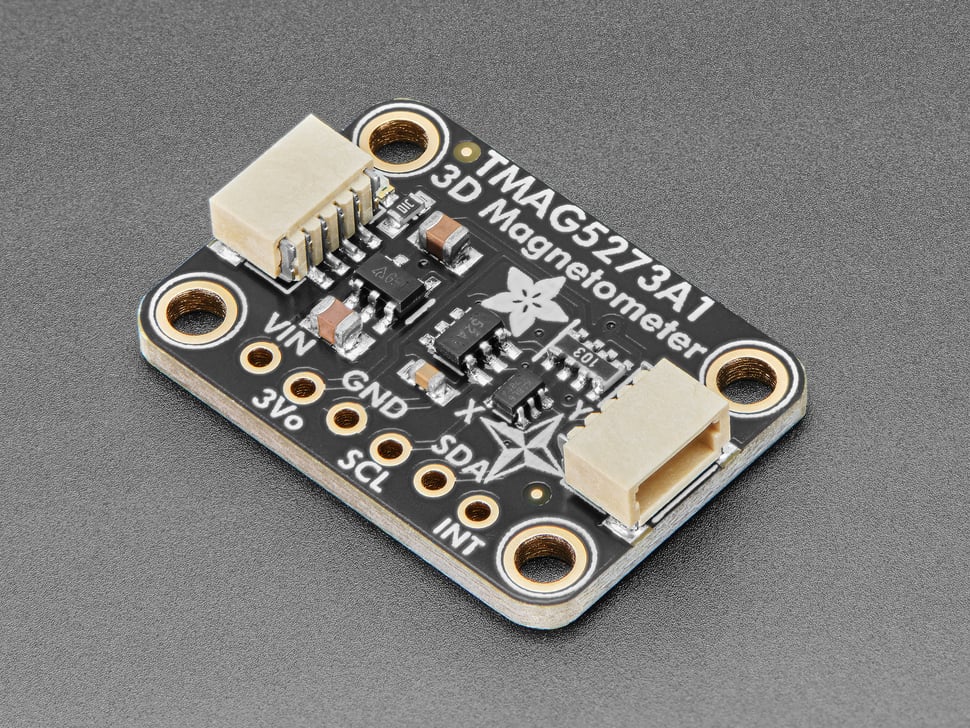

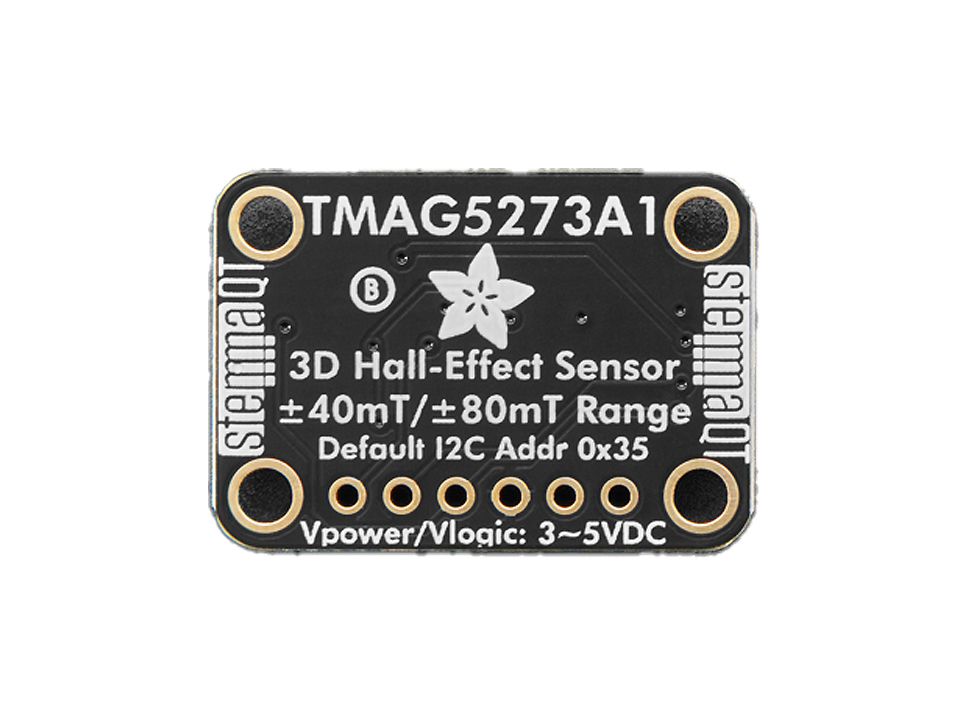

Adafruit TMAG5273 (A1) is a 3D Hall effect sensor for contactless position and motion detection using a magnet. The sensor measures magnetic fields in three axes (X, Y, and Z) and is well suited for rotary controls, joystick solutions, presence detection, and industrial automation. The built-in CORDIC engine enables angle calculation up to 360°, making it well suited for magnetic encoders and precise position measurement. Communication takes place via I2C, and the board is equipped with dual Qwiic connectors for quick solderless connection. A built-in temperature sensor also provides basic temperature readings.
Specifications:
- Sensor chip: Texas Instruments TMAG5273A1
- Sensor type: 3D Hall effect sensor
- Measurement axes: X, Y, Z
- Measurement range: ±40 mT or ±80 mT selectable
- ADC resolution: 12-bit
- Angle measurement: 0° to 360°
- Communication: I2C

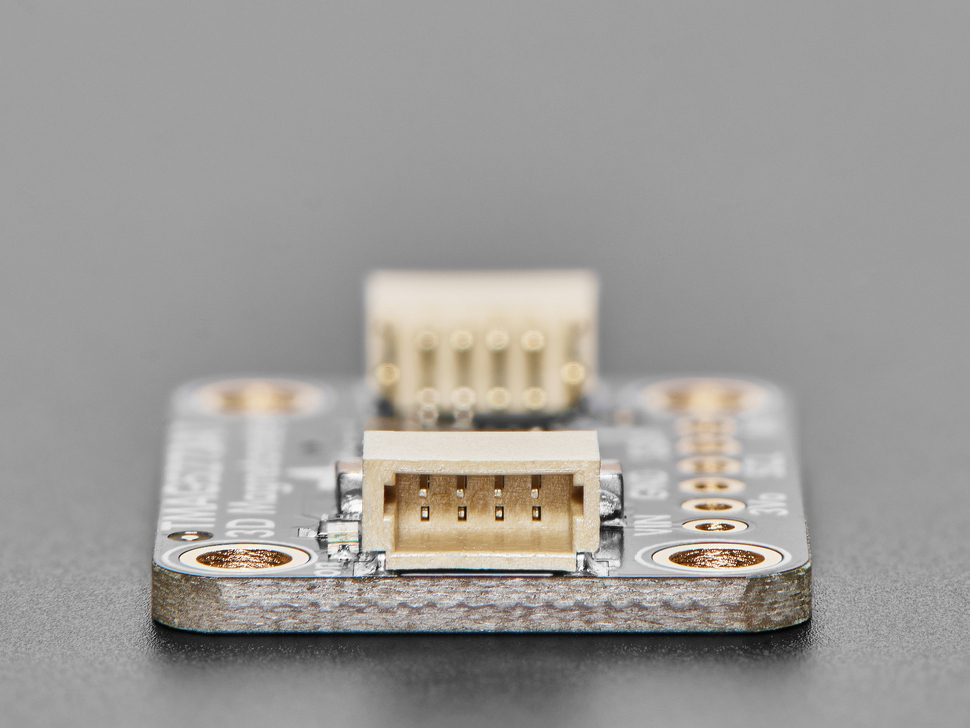

- Connector: 2x Qwiic
- Temperature sensor: Built-in
- Logic level: 3.3V and 5V compatible
- Application areas: Position measurement, rotation detection, joystick, encoder, automation
