Product description

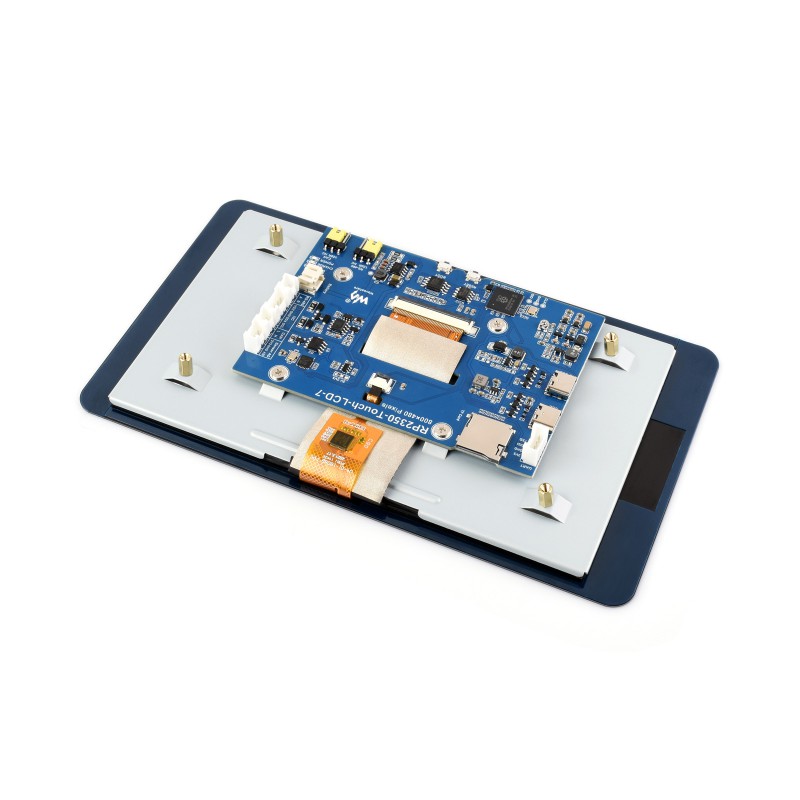

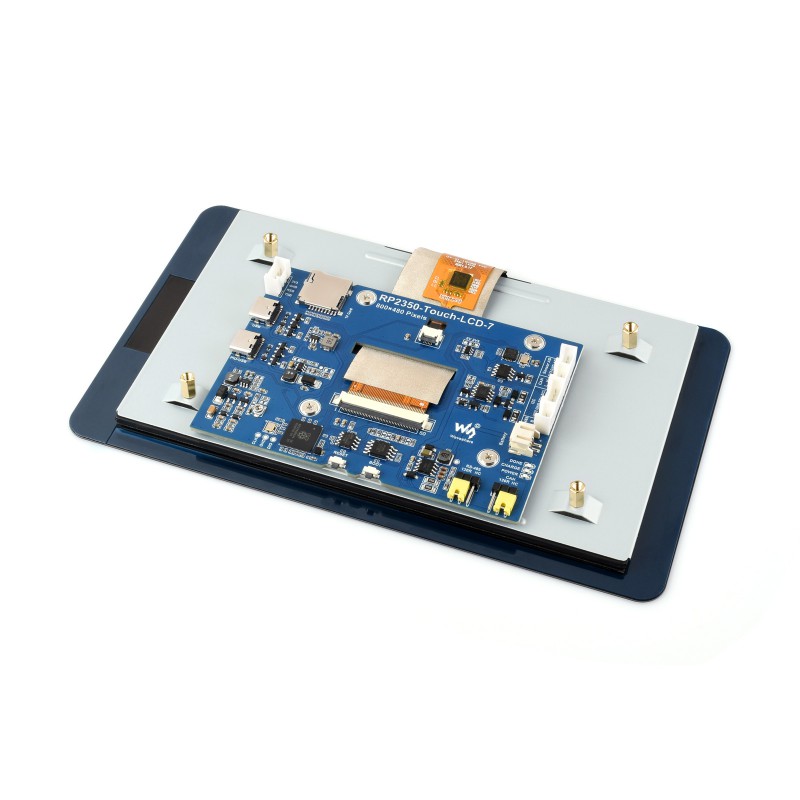

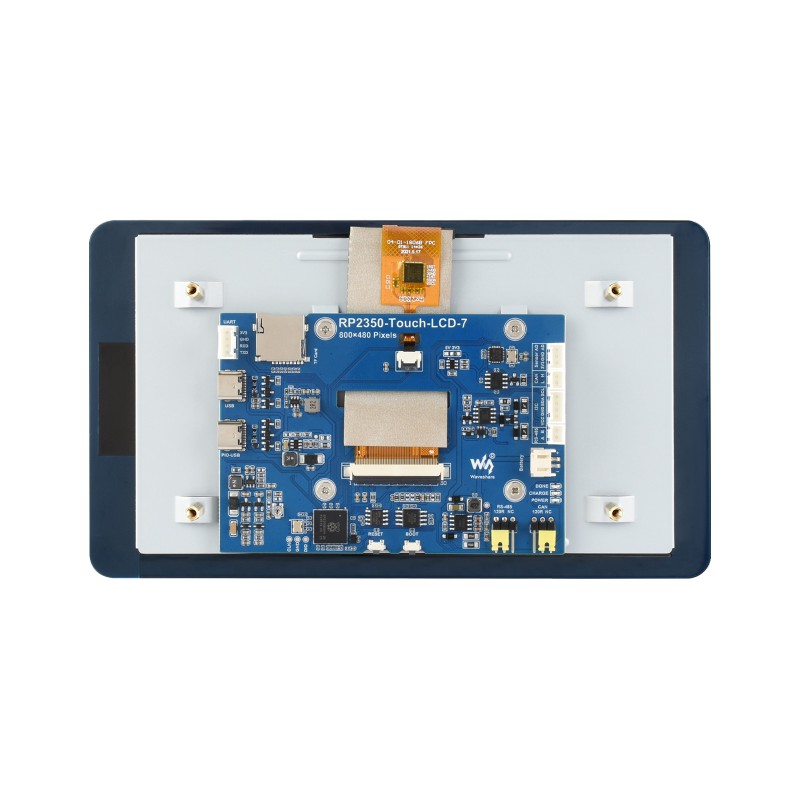

RP2350 with 4.3-inch capacitive touch display. Display and development board in a single enclosure. Suitable for embedded systems, IoT applications, and prototyping.
The onboard RP2350B chip provides a flexible architecture with support for both ARM Cortex-M33 and RISC-V, offering solid performance and adaptability across different projects. The combination of a high-resolution LCD, touch functionality, and integrated resources such as Flash, PSRAM, and RTC enables development of complete user interfaces without external hardware.

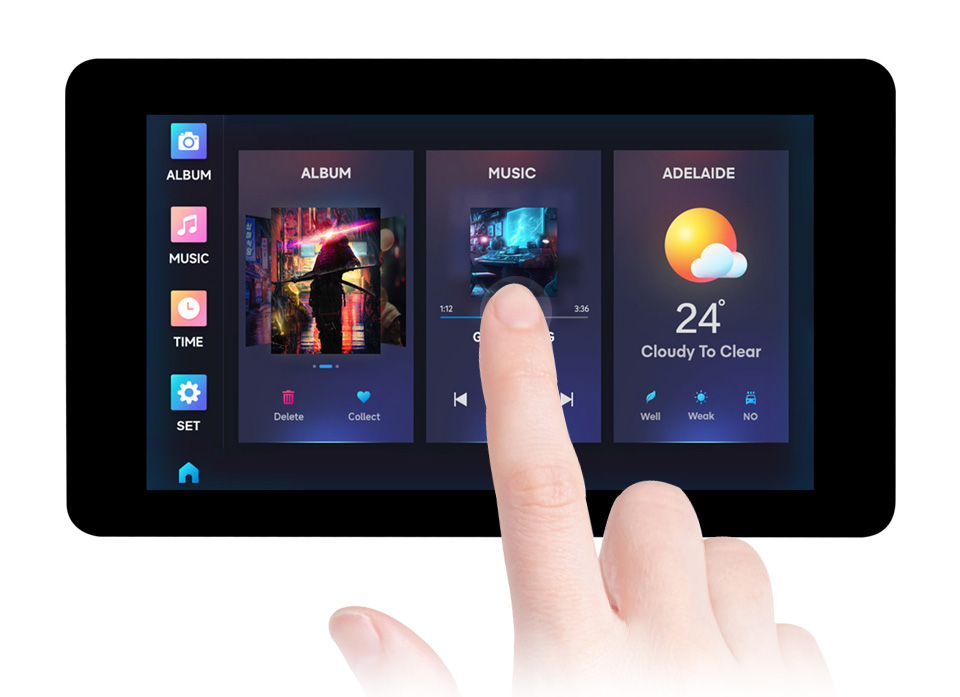

The display is an IPS panel with a wide viewing angle and capacitive multi-touch. Suitable for graphical interfaces, control panels, and IoT applications. The board also features multiple communication interfaces, simplifying integration in both prototypes and existing systems.

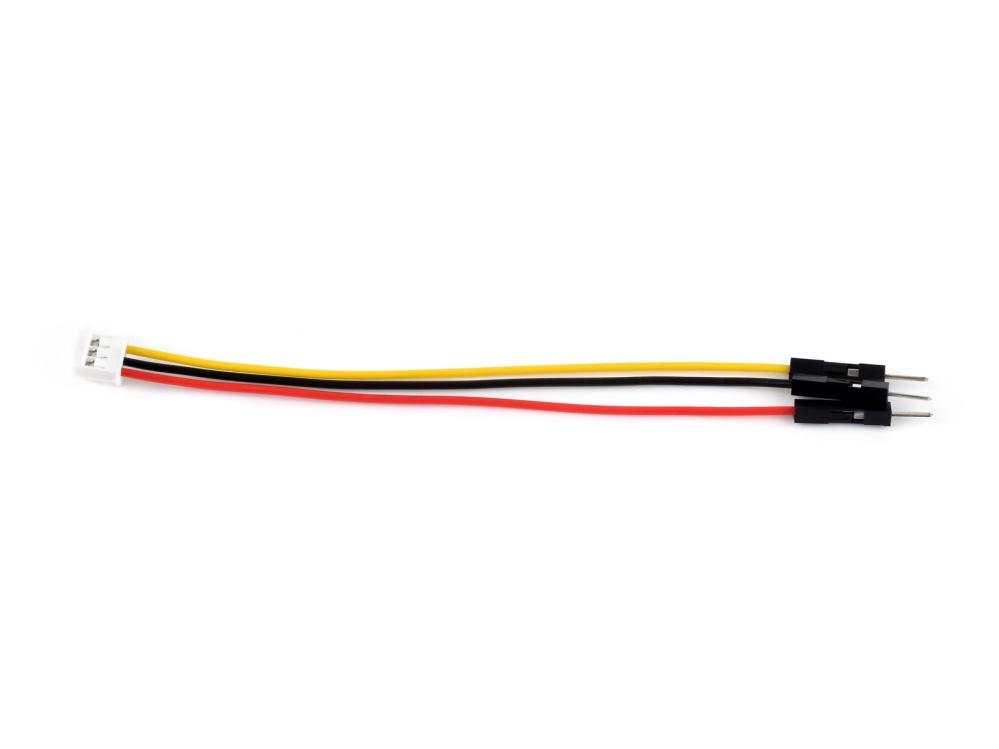

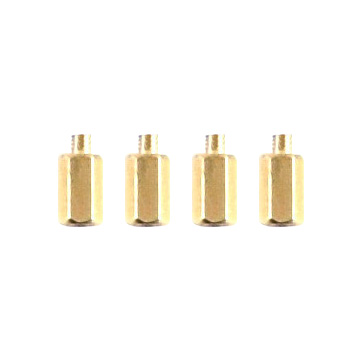

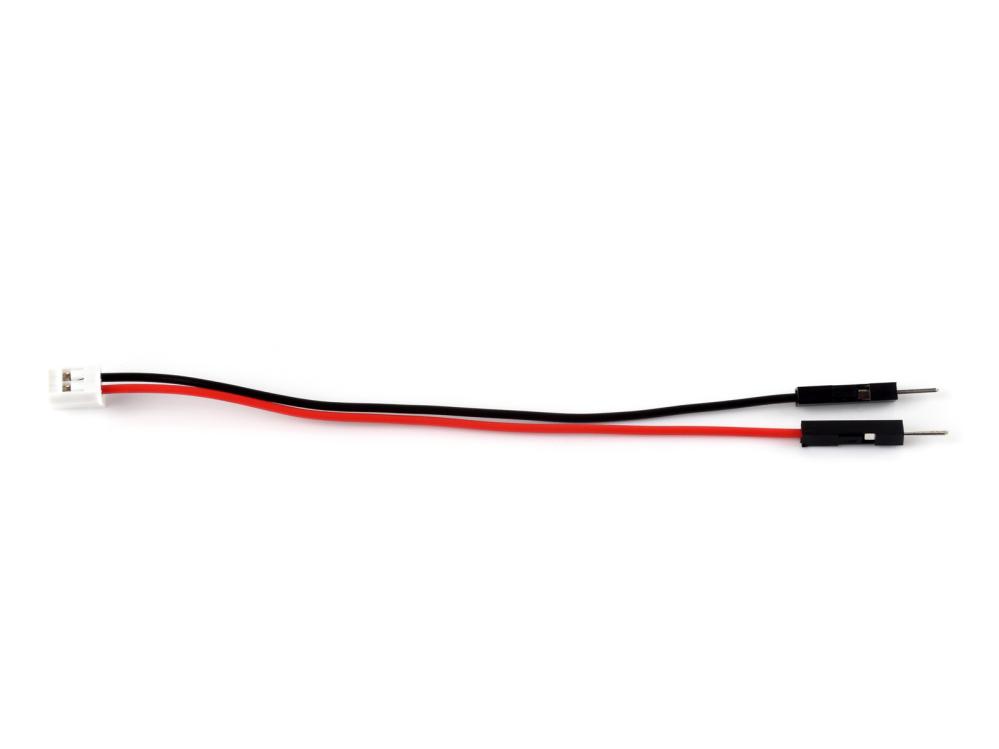

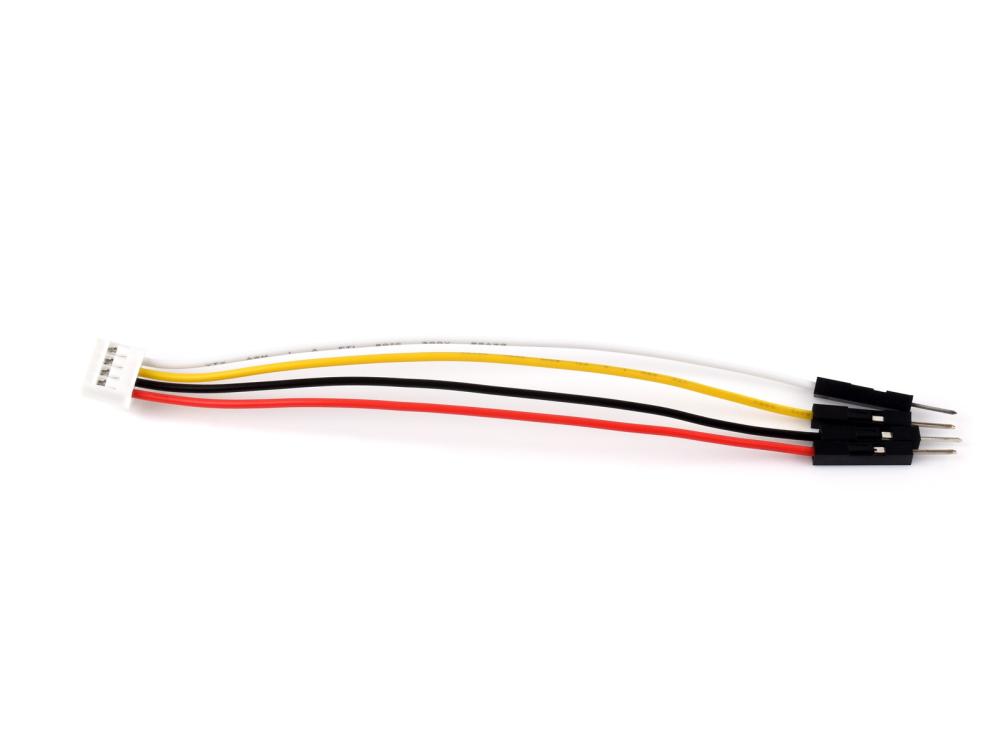

Supplied with three connection cables (2-pin, 3-pin and 4-pin to dupont connectors) as well as mounting screws.
Specifications:
- Microcontroller: RP2350B (Raspberry Pi)
- Processor: dual-core ARM Cortex-M33 or dual Hazard3 RISC-V
- Clock frequency: up to 150 MHz
- Internal RAM: 520 KB SRAM
- Flash memory: 16 MB
- PSRAM: 2 MB
- Supply voltage: 7 to 36 V or USB-C

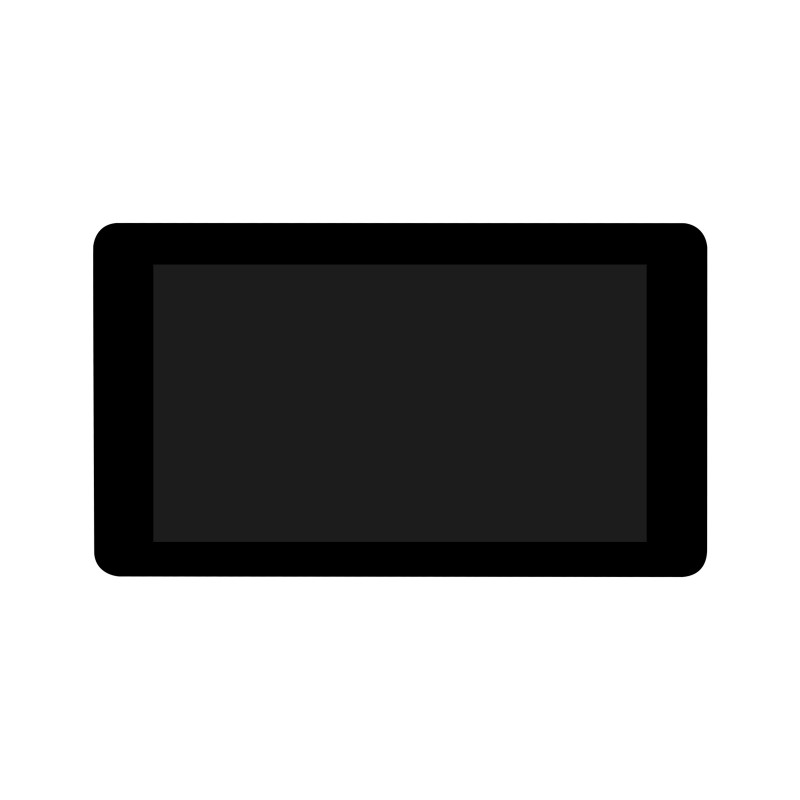

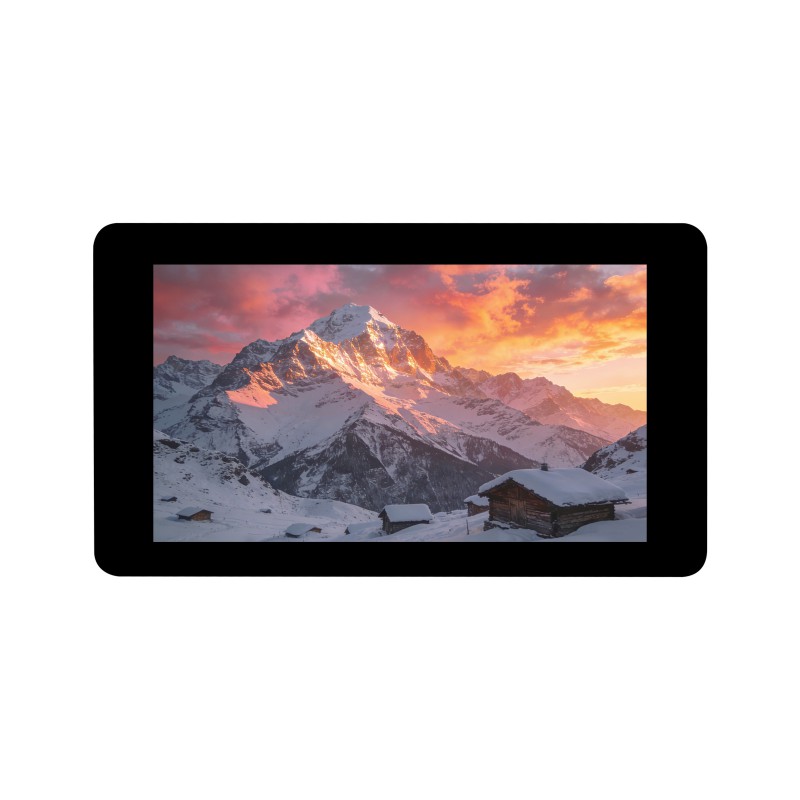

- Display: 4.3-inch IPS panel
- Resolution: 800 × 480 pixels
- Color depth: 65K colors
- Viewing angle: 160 degrees
- Touchscreen: capacitive, 5-point multi-touch
- Connection: USB Type-C
- 12 × programmable GPIO

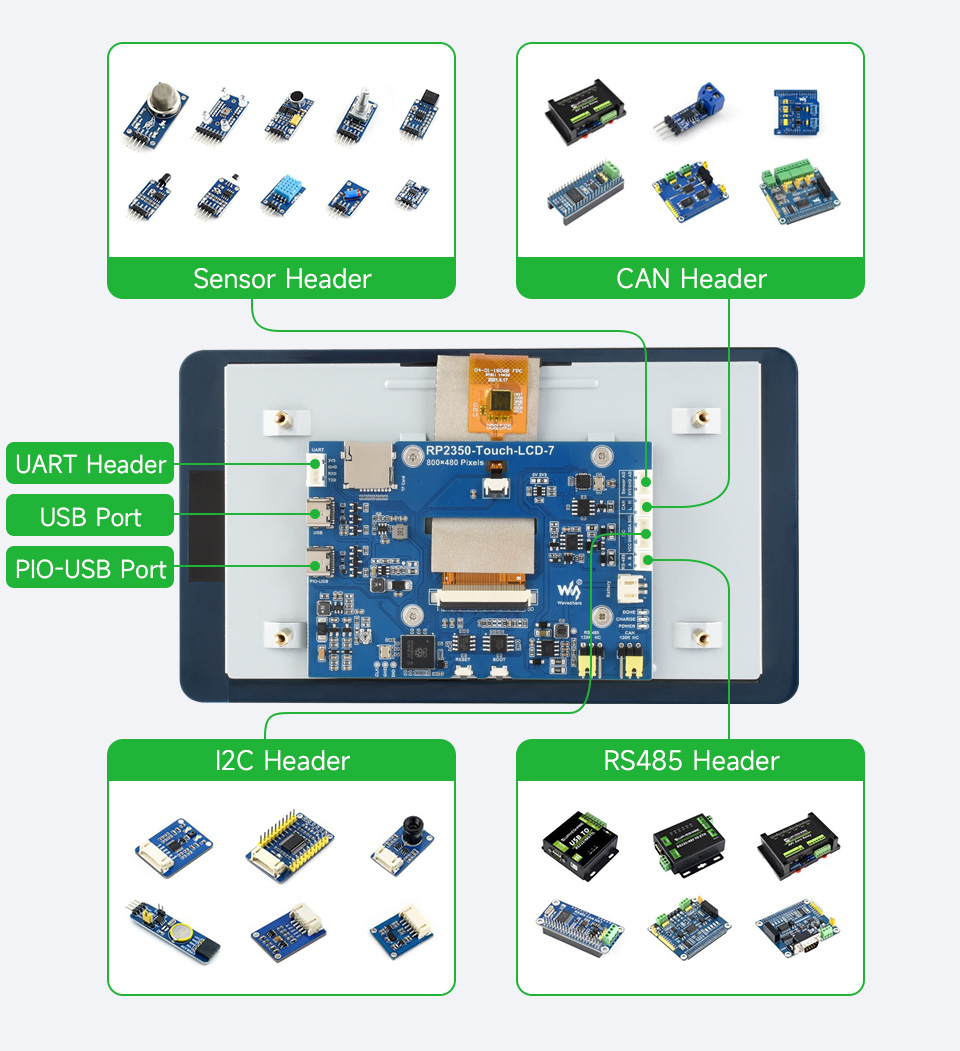

- External interfaces: I2C, CAN, RS485 and dual digital isolated inputs and outputs
- Other: RTC, microSD card slot
