Product description

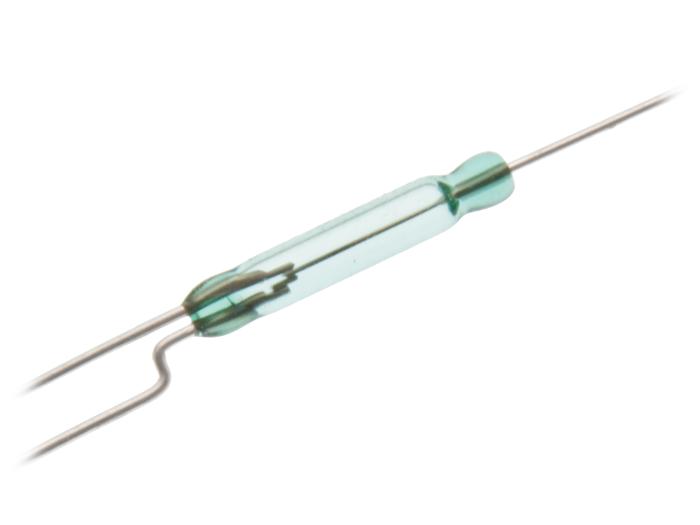

Reed switch 1-pole. The contact has separate outputs for normally closed and normally open. The sensitivity for reed switches is measured in AT (ampere-turns). Lower AT means that the switch is more sensitive to magnetism.
Max voltage: 175V
Max current: 0.25A
Sensitivity: 15-20AT
Total length: 52.7mm
Body length: 14.7mm
Body diameter: 2.7mm
NB! Cutting the connectors may harm the component, see more under Preview Files ("kapning av ben" - pdf is in English).
Max voltage: 175V
Max current: 0.25A
Sensitivity: 15-20AT
Total length: 52.7mm
Body length: 14.7mm
Body diameter: 2.7mm
NB! Cutting the connectors may harm the component, see more under Preview Files ("kapning av ben" - pdf is in English).
