Product description

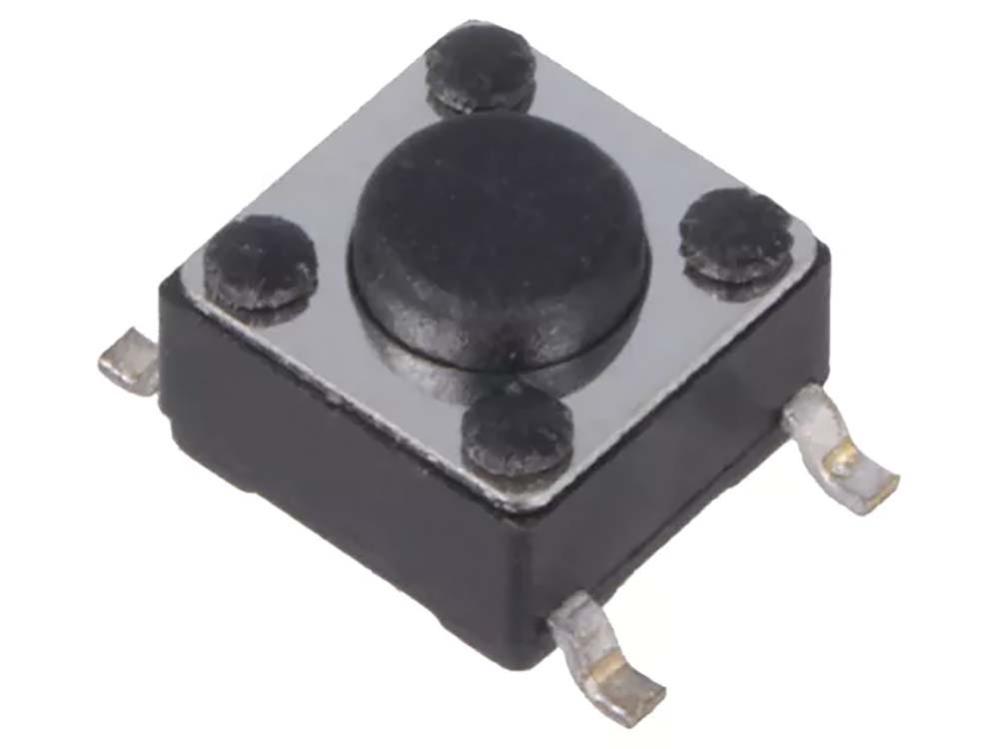

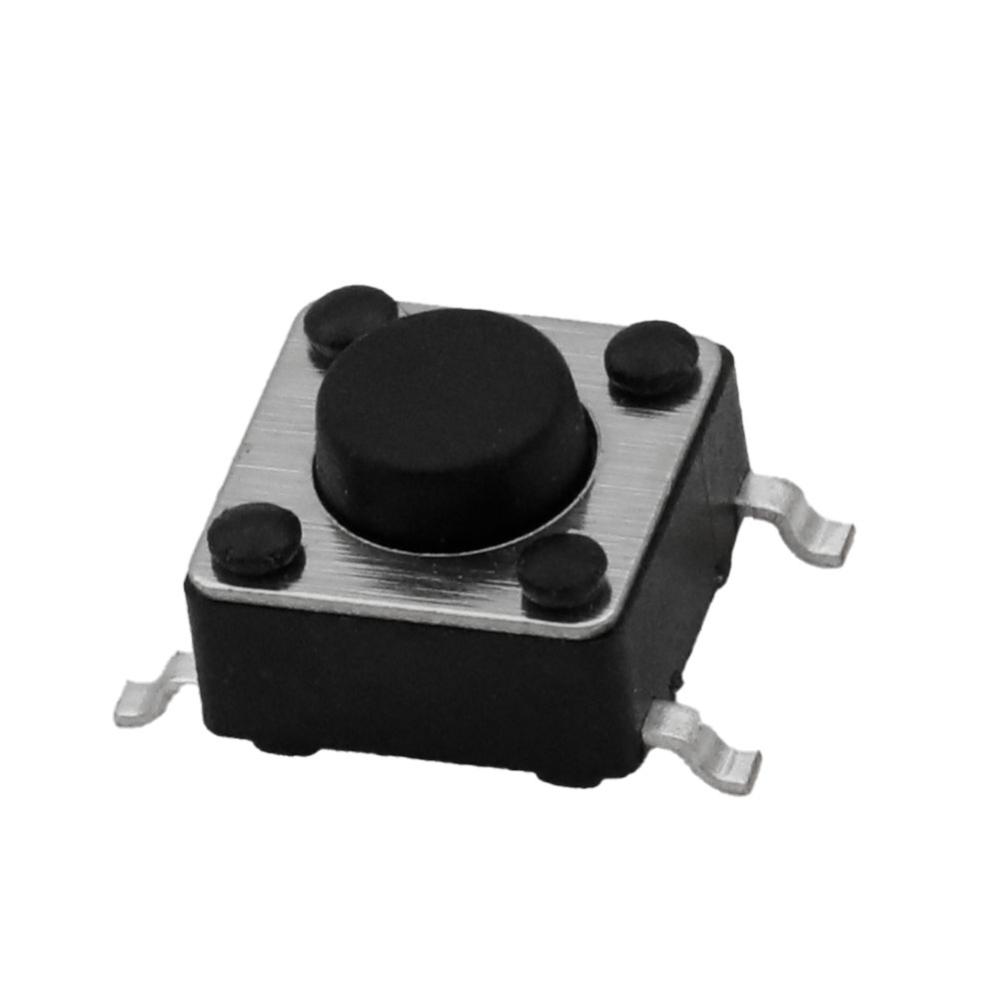

Tactile Switch, Surface-Mounted (SMD).
Specifications:
- Type: Tactile switch, tact switch, push button
- Contact configuration: OFF-(ON) / SPST-NO
- Default state: Normally open (NO)
- Rated voltage: 12 VDC
- Rated current: 50 mA
- Actuation force: 1.6 N
- Dimensions: 6 × 6 × 4.3 mm
- Pin pitch: 4.5 × 9 mm
- Number of pins: 4
- Mounting type: Surface-mounted (SMD)
- Operating temperature: -30 to +85°C
