Product description

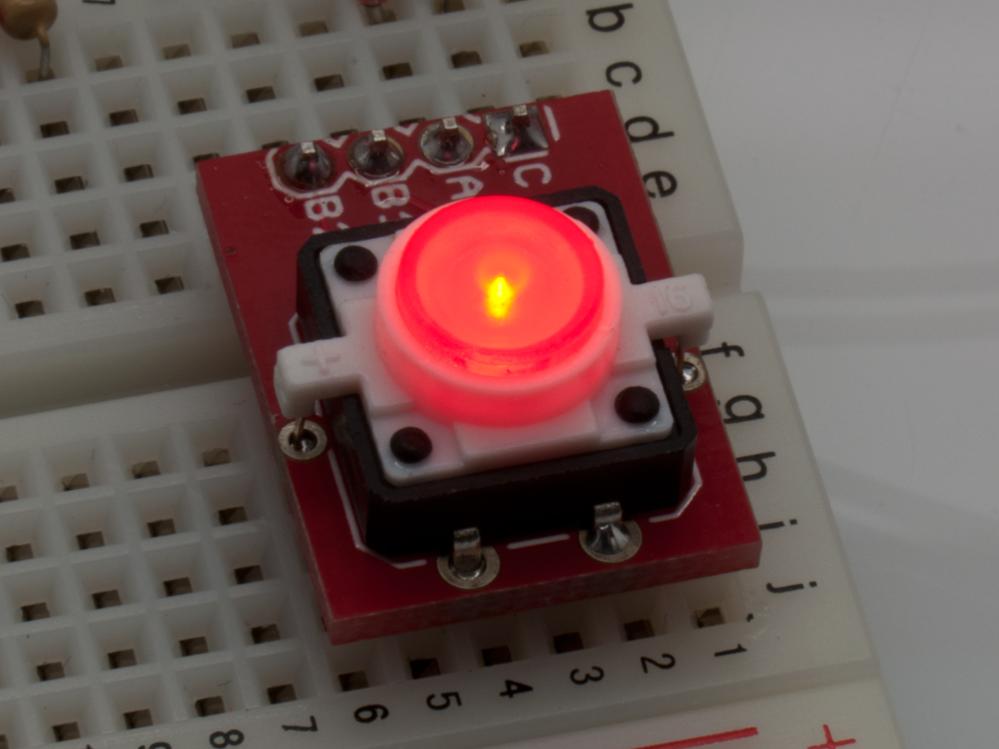

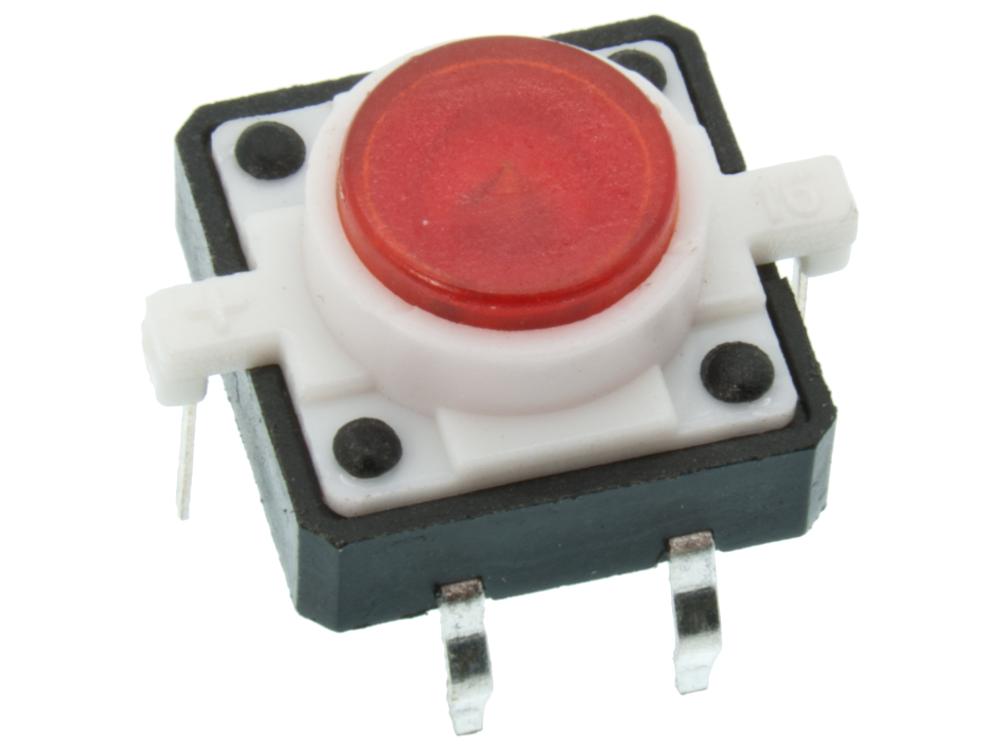

Illuminated momentary push button for circuit board assembly. The button has a built-in LED with separate connections. For mounting on experimental boards or connection decks, adapter boards are available for purchase separately.
LED
- Colour: red
- Vf: approx. 2.0V at 20mA
Switch
- Max voltage: 12V
- Max current: 50mA
- 1-pole SPST-NO / momentary closing / off-(on)

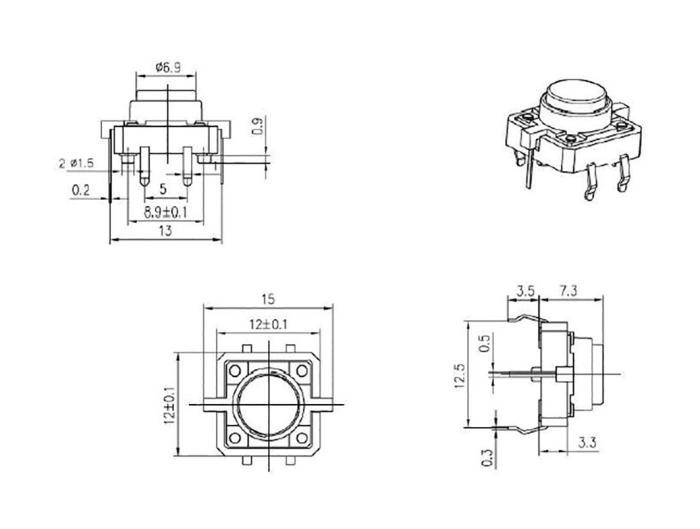

- Dimensions: 15 x 12 x 7.4 mm
