Product description

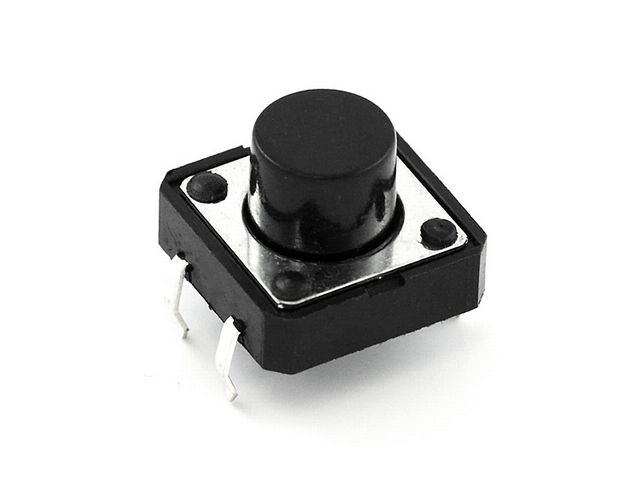

Tactile switch for PCB mounting, ideal for use on breadboards and prototype boards.
Specifications:
- Type: Tactile switch, tact switch, push button
- Function: OFF-(ON) / SPST-NO
- Default state: NO (Normally Open)
- Rated voltage: 12 VDC
- Rated current: 50 mA
- Actuation force: 1.6 N
- Dimensions: 12 x 12 x 8.5 mm
- Terminal pitch: 5 x 12.5 mm
- Number of pins: 4
- Mounting type: Through-hole (THT)
- Operating temperature: -25 to 70°C
- Maximum contact resistance: 50 mOhm
- Minimum insulation resistance: 0.1 GOhm
Tip:
When connecting a tactile switch to a breadboard, use flat-nose pliers to flatten the connection pins. This makes the pins slightly longer and reduces the risk of bending when pressing the switch into the breadboard.
