Product description

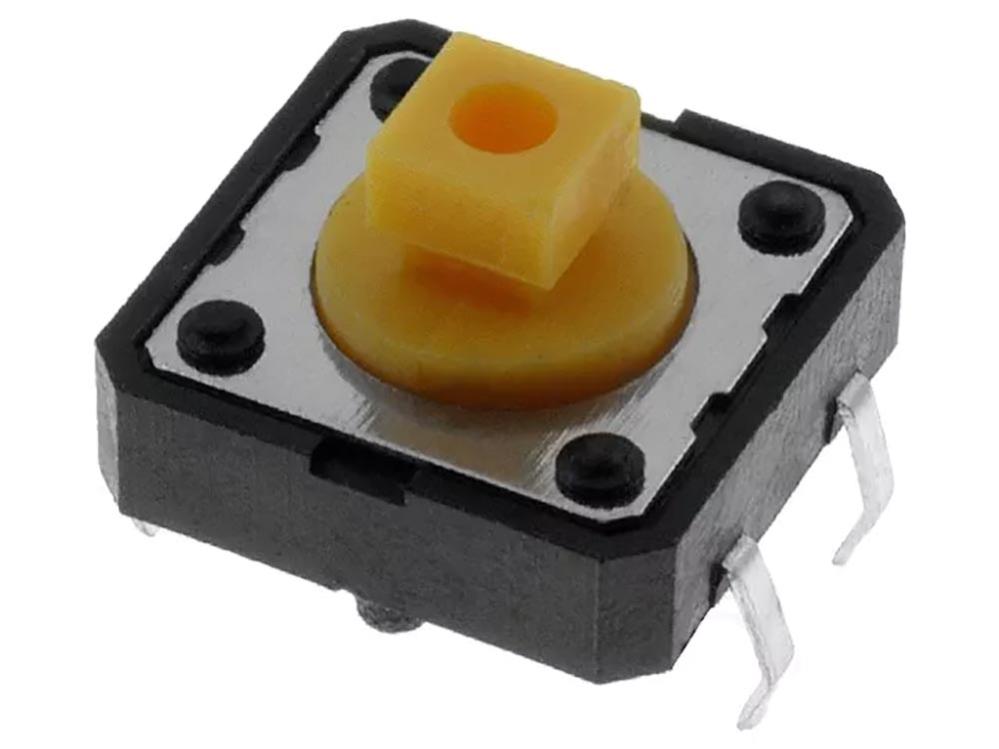

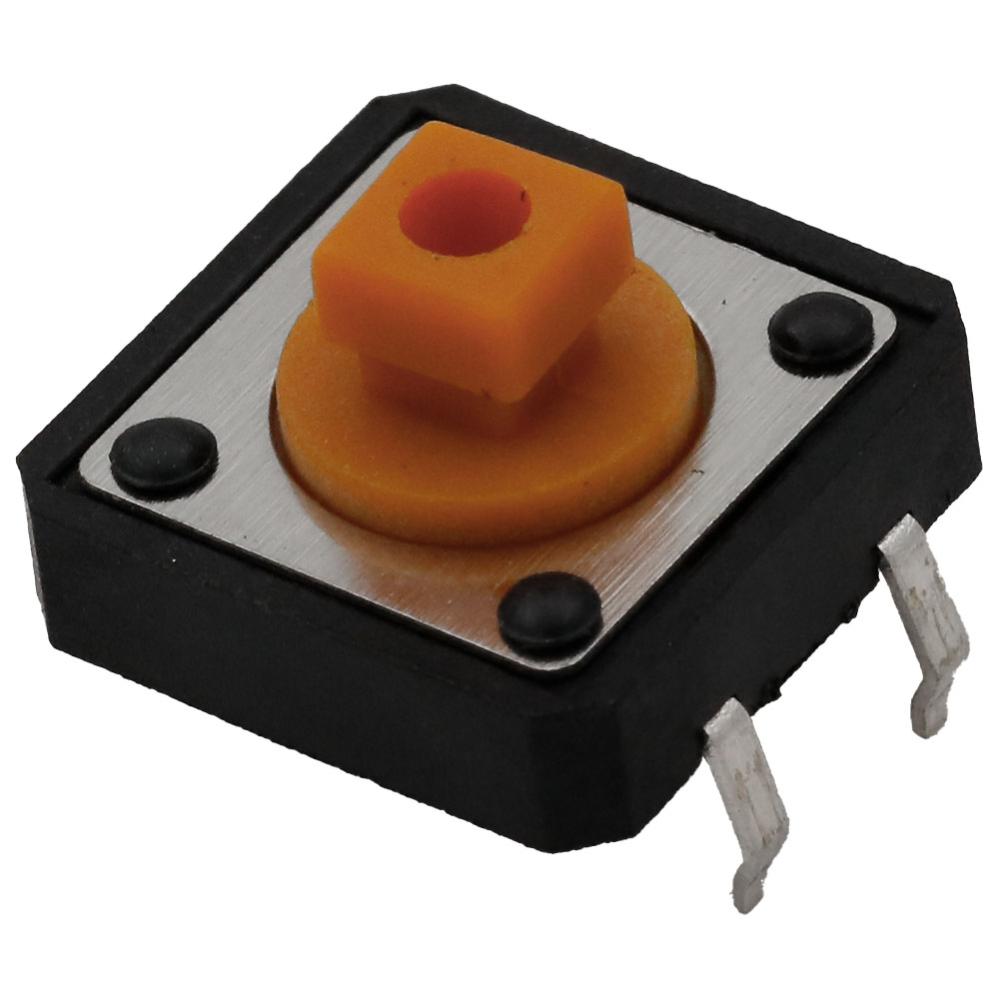

Tactile switch for PCB mounting. Suitable for use with prototyping PCBs and breadboards (breadboard friendly).
Matching keycaps are available in various colors: 41024342, 41024343, 41024344, 41044345
Specifications:
- Type: Tactile switch, tact switch, push button
- Function: OFF-(ON) / SPST-NO
- Default state: NO (Normally Open)
- Rated voltage: 12 VDC
- Rated current: 50 mA
- Actuation force: 1.6 N
- Dimensions: 12×12×7.3 mm
- Pitch: 5×12.5 mm (2.54 mm)
- Number of pins: 4
- Mounting type: Through-hole (THT)
- Maximum contact resistance: 50 mΩ
- Minimum insulation resistance: 0.1 GΩ
- Operating temperature range: -25 to +70°C
Tip: When connecting tactile switches to a breadboard, use flat-nose pliers to flatten the connector pins. This makes the pins slightly longer and reduces the risk of them bending when pressing the switch into the breadboard.
