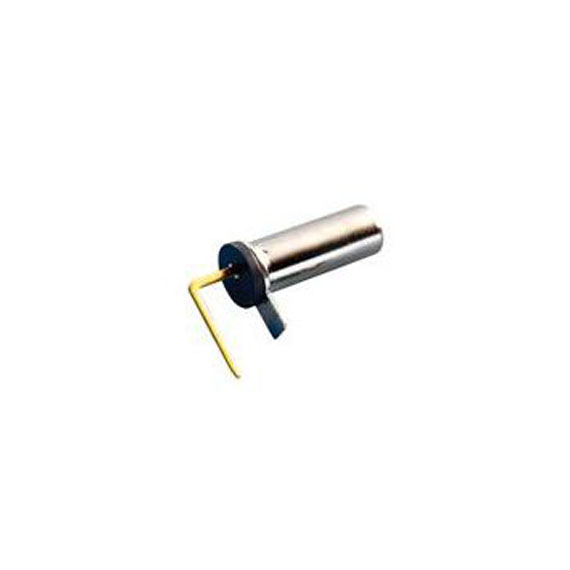

Tiltswitch - rolling ball sensor 5V 1mA ±10°
Art no: 41023531
Littelfuse - RB231X2
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Mechanical rolling ball type sensor for ±10° position detection. Suitable for use in space heaters, vehicles, toys, security, and alarm systems etc. where tilt and movement need to be detected. Unlike mercury switches, the rolling ball is toxic-free.
Specifications:
- Product type: Sensor, rolling ball
- Working angle: 0° to ±10°
- Voltage range: 1 VDC, 10mA to 5 VDC, 1mA
- Lifetime: 100,000 cycles
- Insulation: 1000 M Ω min. @ 100 VDC
- Dielectric strength: 500 V AC (50-60 Hz)
- Operating temperature: -20ºC to +70ºC
- Dimensions : 12,4x4 mm
- Weight: 4 grams
Product information
SKU:
41023531MPN:
RB231X2
