Product description

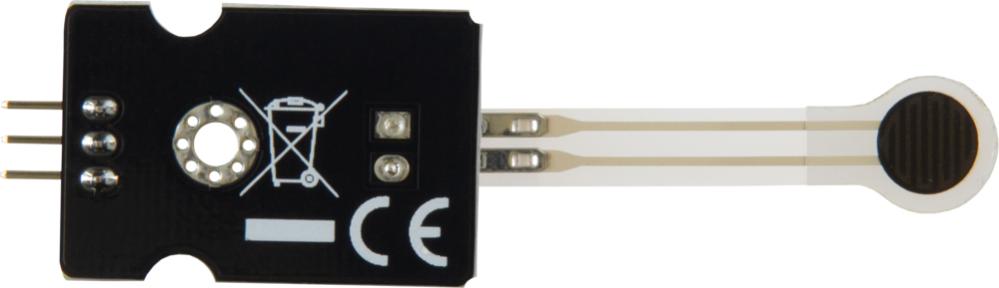

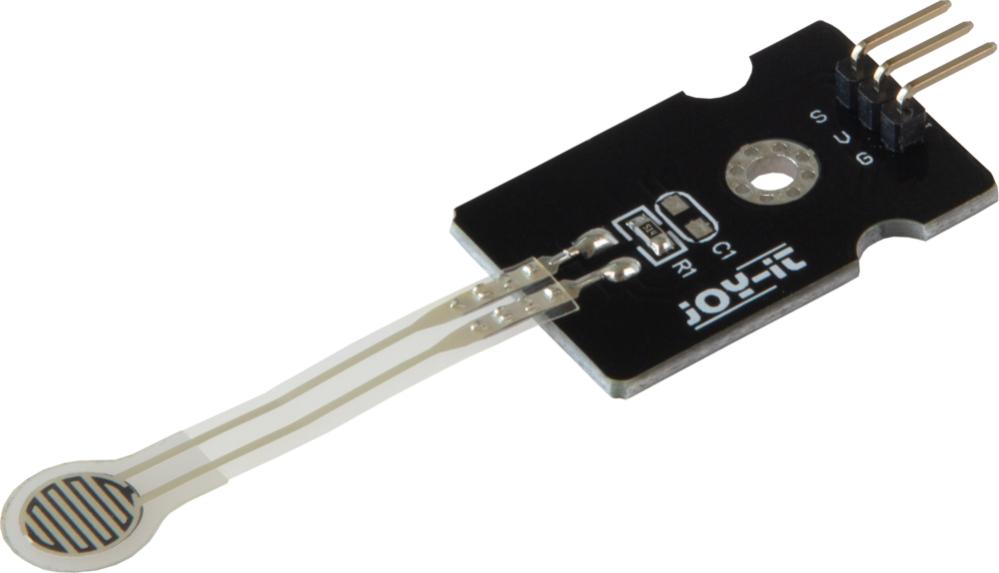

Pressure sensor with thin-film sensor for measuring pressure/load up to 2 kg. The sensor resistance changes when external pressure is applied, resulting in a change in the analog output voltage. The sensor strip is flexible and water-resistant. The sensor can be used with, for example, Arduino and Raspberry Pi.
Specifications:
- Manufacturer: Joy-IT
- Model: SEN-Pressure02
- Product type: Pressure sensor
- Measurement range: 0–2 kg
- Output: Analog voltage
- Response threshold: 100–150 g
- Accuracy: ±2.5%
- Response time: <1 ms
- Recovery time: <15 ms
- Supply voltage: 3.3–5 V
- Connections: Power, GND and analog output
- Sensor strip thickness: <0.25 mm
- Contact area: 7.5 mm
- Durability: Approx. 1,000,000 measurements
- Operating temperature: -20 to +60 °C
- Dimensions: 75 × 20 × 9 mm
