Thermal cut-off fuse 184C 250VAC 10A
Art no: 41003702
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

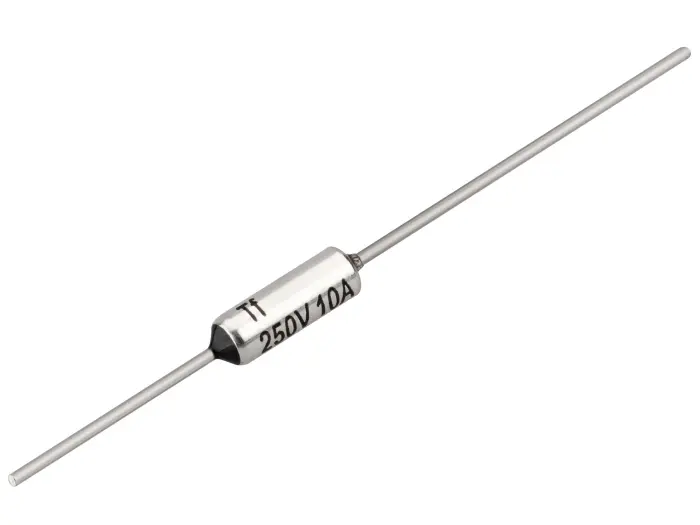

Thermal cut-off fuse with pins for crimping or screw mounting. The fuse breaks the circuit when the rated temperature is reached. Non-resettable. Not recommended for soldering as the fuse may trip when heated by the soldering process.
* Max voltage: 250VAC
* Max current: 10A
* Cut-off temperature: 184°C (+0...-5°)
* Dimensions: ø4 x 15mm
* Leads: ø1mm
* Max voltage: 250VAC
* Max current: 10A
* Cut-off temperature: 184°C (+0...-5°)
* Dimensions: ø4 x 15mm
* Leads: ø1mm
Documents
Technical data
Attribute | Value |
---|---|
Current
|
10 A
|
Temperature
|
184 °C
|
Voltage
|
250 V
|
SKU:
41003702
