Product description

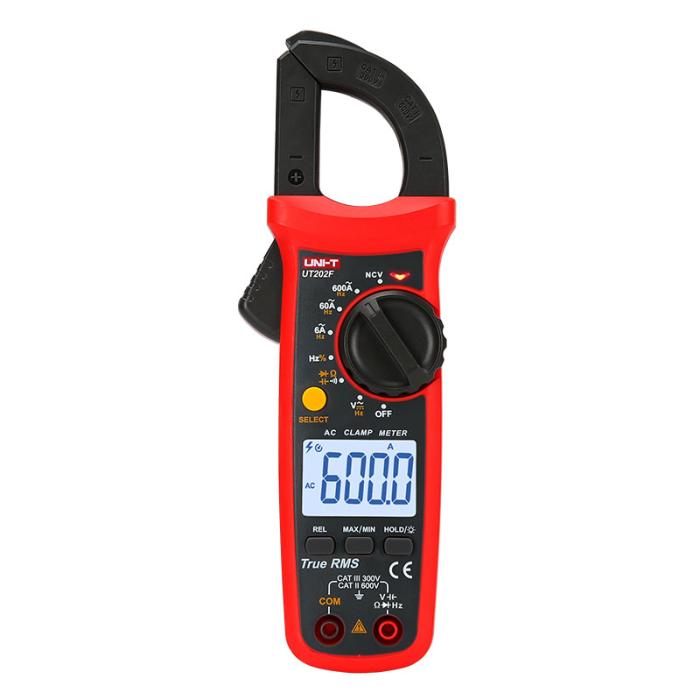

UNI-T UT202F is a clamp multimeter which measures AC currents up to 600A. It is capable of measuring lower currents, with ±(2%+5) accuracy down to 60mA. Measures true effective value (True RMS).
The meter has a 6000 counts (0-5999) backlit display. Also measures AC and DC voltage, resistance, capacitance, frequency and duty cycle. Continuity test with buzzer tone. NCV function (non-contact voltage tester) detects live wires.
UT202F has AutoRange, which automatically selects the correct measurement range. Min/max, relative mode and hold function make measurements easier.
Clamp width: 28 mm. Automatic shut-off.

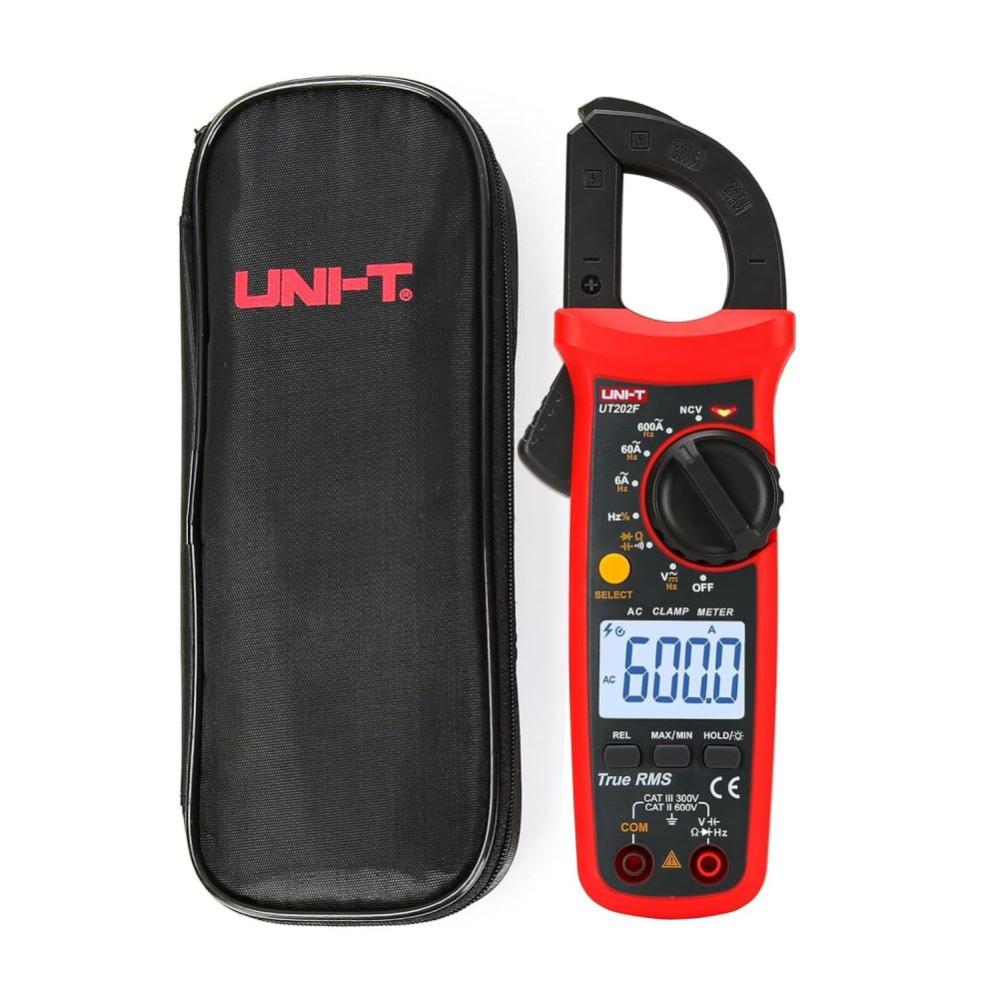

Supplied with test probes, 2 x AAA batteries and practical cloth bag.
Measuring range / accuracy:
- ACA: 60 mA to 600 A ± (2 % +10)
- ACA frequency: 50-100 Hz ± (1% +5)
- ACV: 600 V ± (0.8 % +5)
- ACV frequency: 10Hz – 10kHz ± (1% +5)
- DCV: 600 V ± (0.5 % +2)
- Resistance: 60 Mohm ± (0.8 % +2)
- Capacitance: 6000 uF
- Frequency: 10 Hz to 10 MHz ± (1 % +5)
Features:
- 6000 counts (0-5999)
- Jaws: 28 mm
- Dimensions: 215 x 63 x 36 mm
- Weight: 248 g
- Safety: Cat III 300 V, Cat II 600 V
- Battery: 2x AAA
