Product description

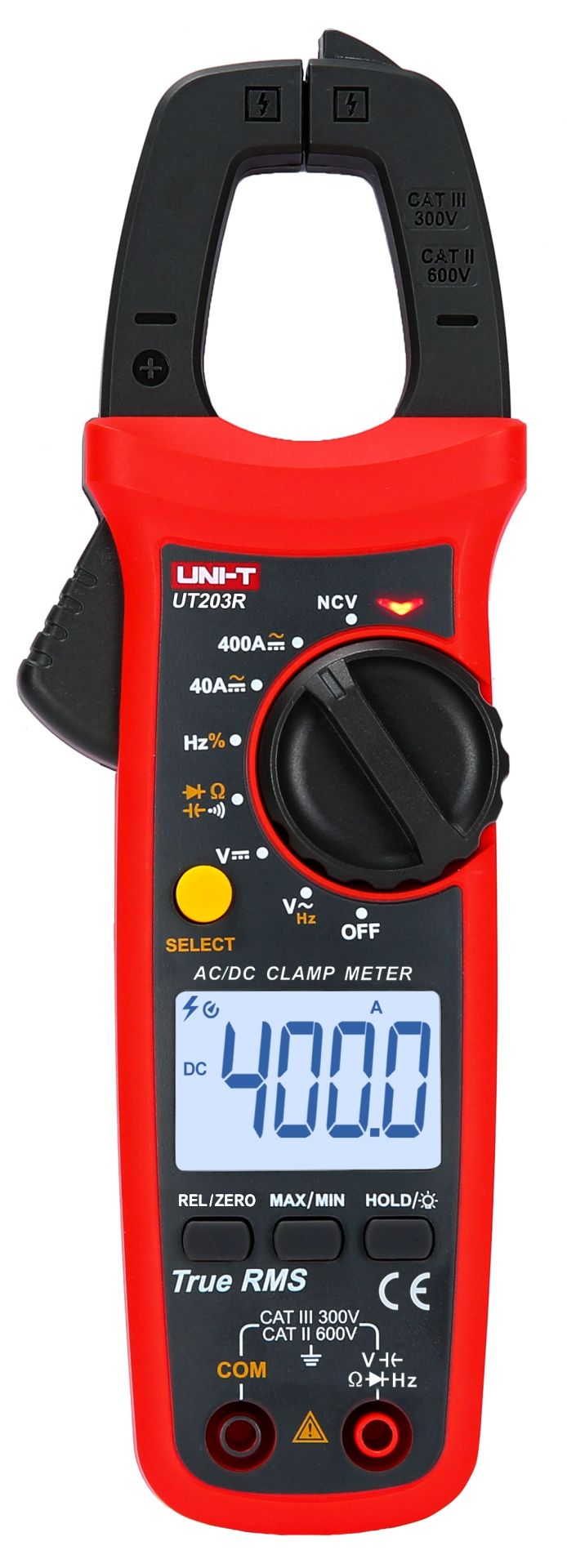

UNI-T UT203R is a True-RMS clamp multimeter, particularly suitable for measuring lower currents with ±(2%+5) precision down to 40mA. Can measure AC and DC current up to 400A.
The meter has a 4000-counts display (0-3999) with backlight. It also measures AC and DC voltage, resistance, capacitance and frequency. The UT203R has AutoRange, which automatically selects the correct measurement range. Continuity test with buzzer tone. NCV function (non-contact voltage tester) detects live wires (230/400 VAC).
Clamp width: 28 mm. Automatic switch-off.
Supplied with test leads, 2 x AAA batteries and practical carrying case.
Measuring range / accuracy:
- ACA 40 mA to 400 A ± (2 % +5)
- ACV 600 V ± (0.8 % +5)
- DCA 0.04 to 400 A ± (2 % +5)
- DCV 600 V ± (0.5 % +2)
- Resistance: 40 Mohm ± (0.8 % +2)
- Capacitance: 4000 uF
- Frequency 10 Hz to 10 MHz ± (0.1 % +4)
Specifications:
- 4000 counts (0-3999)
- Jaws: 28mm
- Dimensions: 215 x 63 x 36 mm
- Weight: 235 g
- Safety: Cat III 300 V, Cat II 600 V
- Batteries: 2x AAA
