Product description

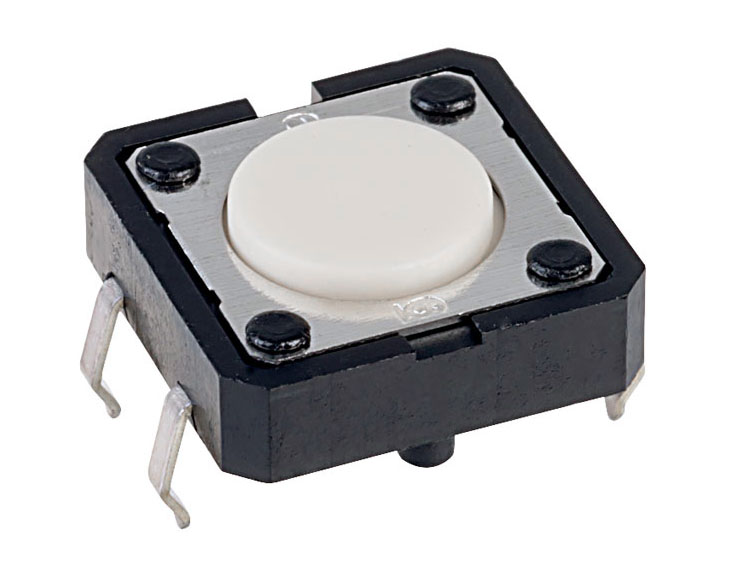

Tactile switch for PCB mounting. Suitable for use on breadboards and prototyping boards.
Specifications:
- Type: Tactile switch, tact switch, push button
- Function: OFF-(ON) / SPST-NO
- Default state: NO (Normally Open)
- Rated voltage: 24 VDC
- Rated current: 50 mA
- Actuation force: 1.27 N
- Dimensions: 12 x 12 x 4.3 mm
- Pin spacing: 5 x 12.5 mm (2.54 mm pitch)
- Number of pins: 4
- Mounting type: Through-hole (THT)
- Contact plating: Silver
- Contact material: Phosphor bronze
- Mechanical lifetime: 3,000,000 cycles
- Maximum contact resistance: 100 mΩ
- Minimum insulation resistance: 0.1 GΩ
- Operating temperature: -25 to +70 °C
Tip: When connecting tactile switches to a breadboard, use flat-nose pliers to flatten the leads slightly. This makes them a bit longer and reduces the risk of bending when pressing the switch into the breadboard.
