Product description

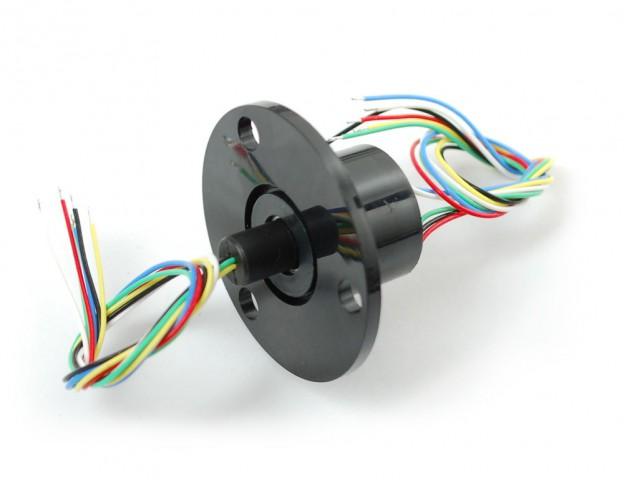

Slip ring with flange for rotating electronics where wires must maintain contact during rotation. The unit features 6 color-coded 26AWG wires and can be used for applications such as wheel encoders, 360-degree sensors, rotating LED solutions, and rotors. The flange includes mounting holes for easy installation. Also known as an electrical rotary joint or slip ring connector.
Specifications:
- Diameter: ø22 mm
- Flange diameter: ø44 mm
- Number of wires: 6
- Wire type: 26AWG / 0.13 mm²
- Cable length: 150 mm
- Rated voltage (max): 50V AC or DC
- Rated current (max): 2A per wire
- Rotation speed: Up to 300 RPM
