Product description

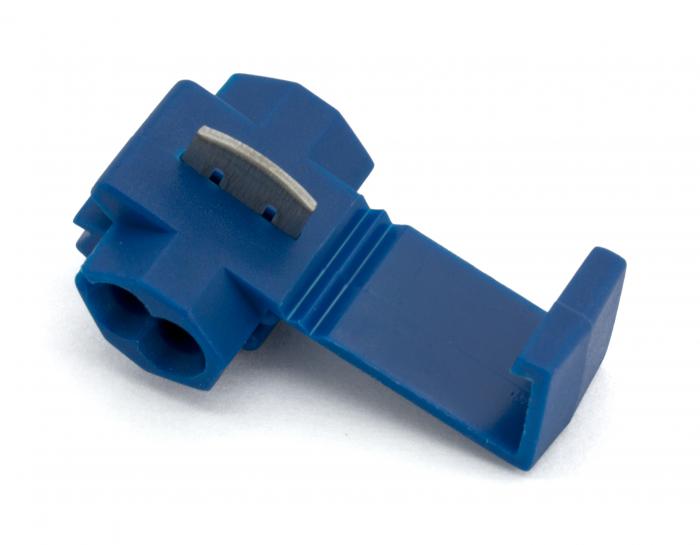

Splice Connector (T-tap) for Quick Connection to Existing Cable. This splice connector enables fast and easy branching of one or two wires from an existing cable – without the need to cut or strip the insulation. No special tools are required for installation – only standard flat nose pliers.
No Stripping Required: The connector uses IDC technology (Insulation Displacement Connection), which means that the cables do not need to be stripped before connection. In humid or unprotected environments, the splice connector should be insulated with electrical tape or self-vulcanizing tape after crimping.
Application: Create one or two branches from a cable without cutting or interrupting the existing cable.
Installation Instructions:
- Insert the main cable (the one to be branched from) into the longitudinal channel of the connector.
- Insert one or two branch wires into the designated side ports until they bottom out.
- Press down the metal insert using pliers until fully seated. Then close the plastic cover.
Typical Applications: Suitable for automotive wiring, electrical enclosures, and other applications where quick, simple, and reliable connections are needed.
Available Variants:
- Red splice connector: 0.5 – 1.5 mm² (AWG 22–18)

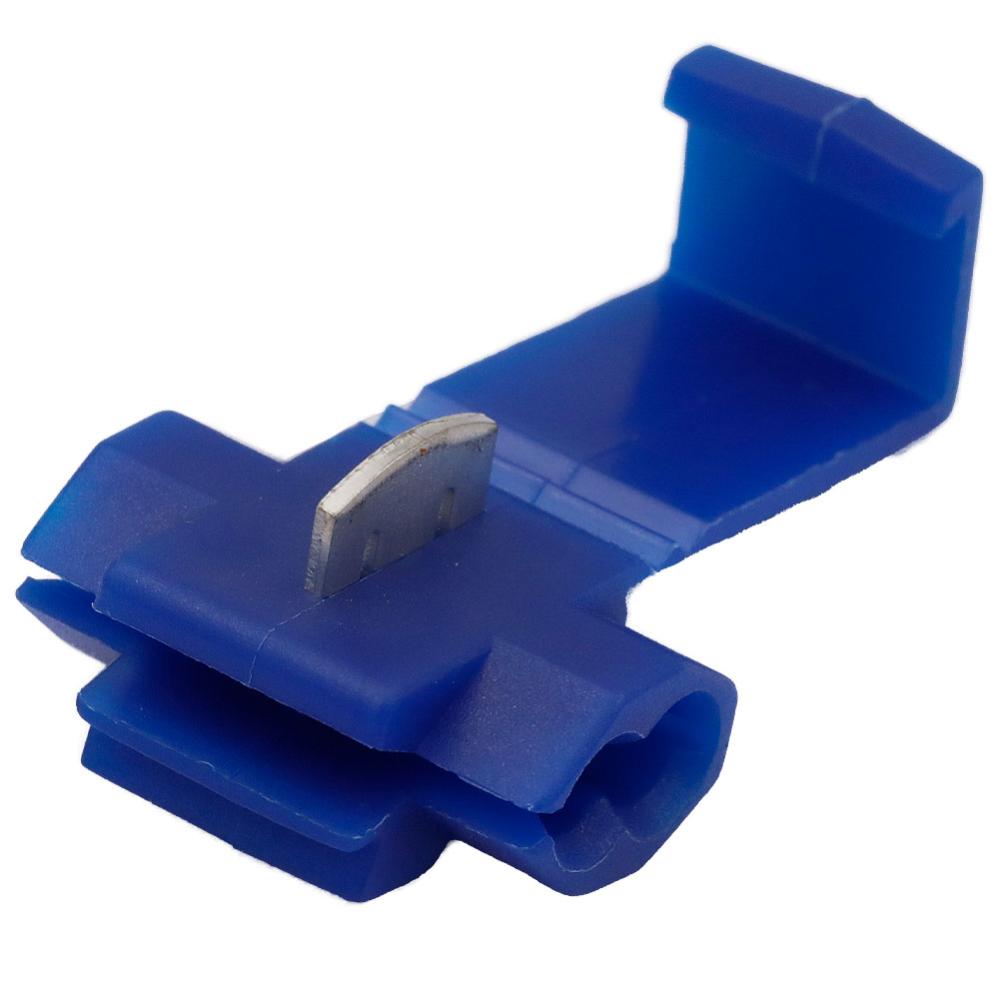

- Blue splice connector: 1.5 – 2.5 mm² (AWG 18–14)
- Yellow splice connector: 4 – 6 mm² (AWG 12–10)
