D-SUB 25 pin female flat cable

Art no: 41002302
Shop this product, D-SUB 25 pin female flat cable
price 20 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 20:-4pcs = 76:-10pcs = 180:-

Quantity discount
QuantityPrice
1 till 3
20 SEK
4 till 9
19 SEK
10 till 24
18 SEK
25 till
15 SEK
Out of stock, estimated delivery 2025-10-10

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

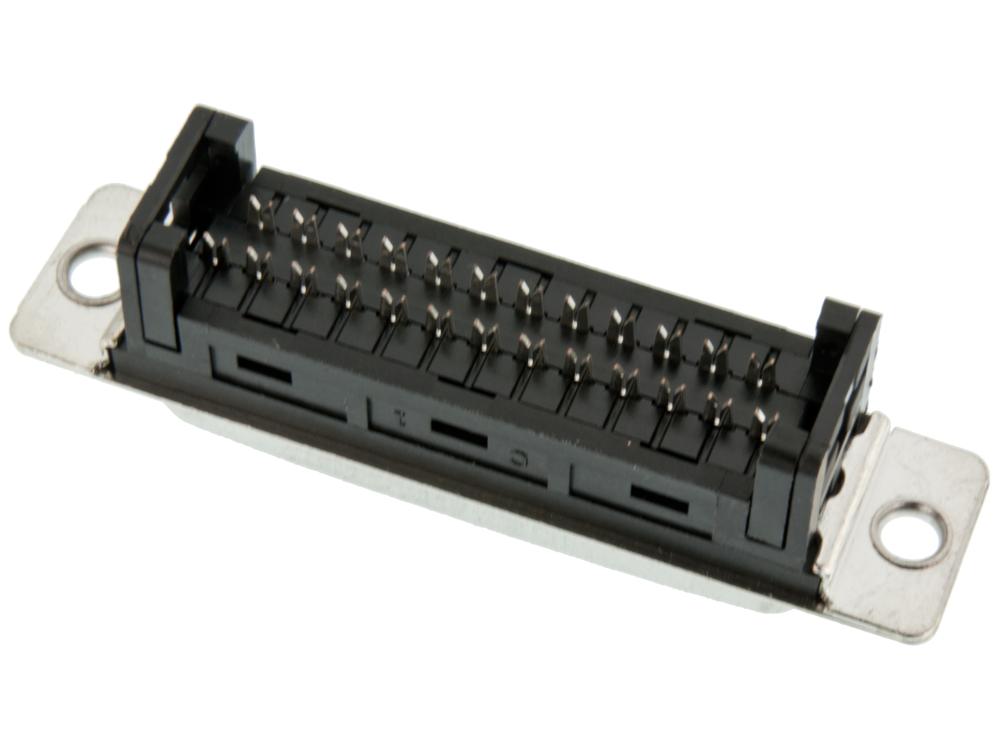

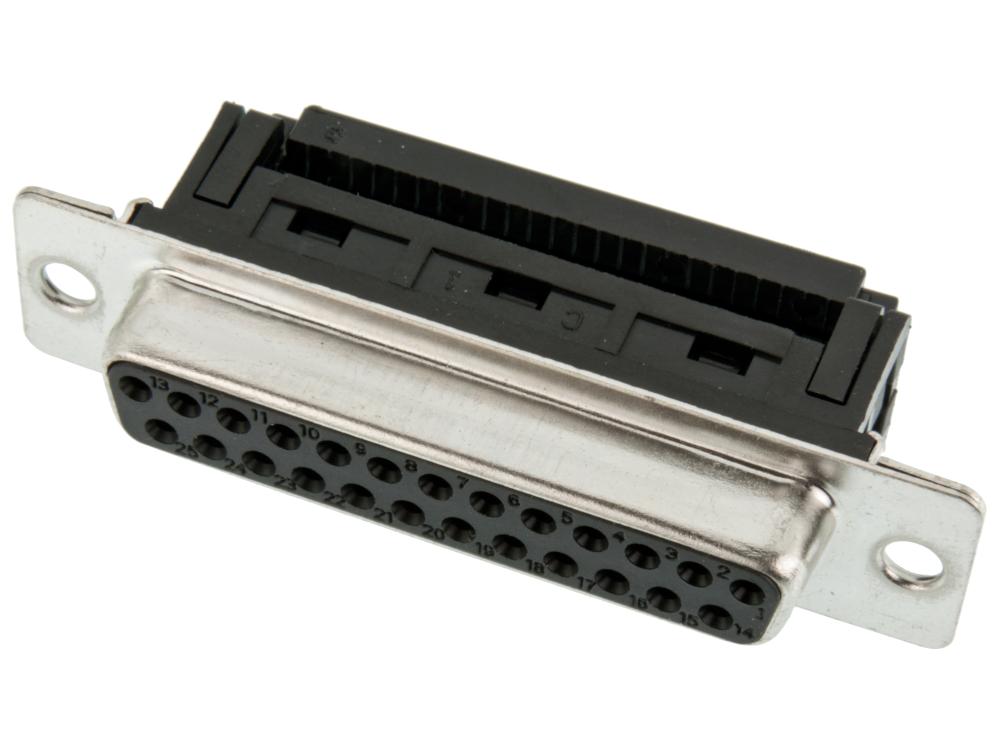

D-SUB 25-pin IDC connector for crimping onto ribbon cable. Recommended crimping tool: 41003882.

Specifications:

  • Connector: DB25 female (IDC)
  • Pins: 25
  • For cable type: Ribbon cable with 1.27 mm pitch

IDC is an abbreviation for Insulation-Displacement Connector. An IDC connector is designed to cut through the cable insulation and establish an electrical connection with the conductor without the need to strip the cable. This makes it well suited for the rapid assembly of ribbon cables (flat cables). IDC connectors are often used as internal connections between different printed circuit boards (PCBs), where many conductors need to be connected quickly and reliably.

Technical data

Technical data/attributes for this product
Attribute Value
Gender
Hona
Orientation
Vinklad
  • SKU:

    41002302
