Sine wave generator
Art no: 12303008
Sorry, this product is outdated and no longer active
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

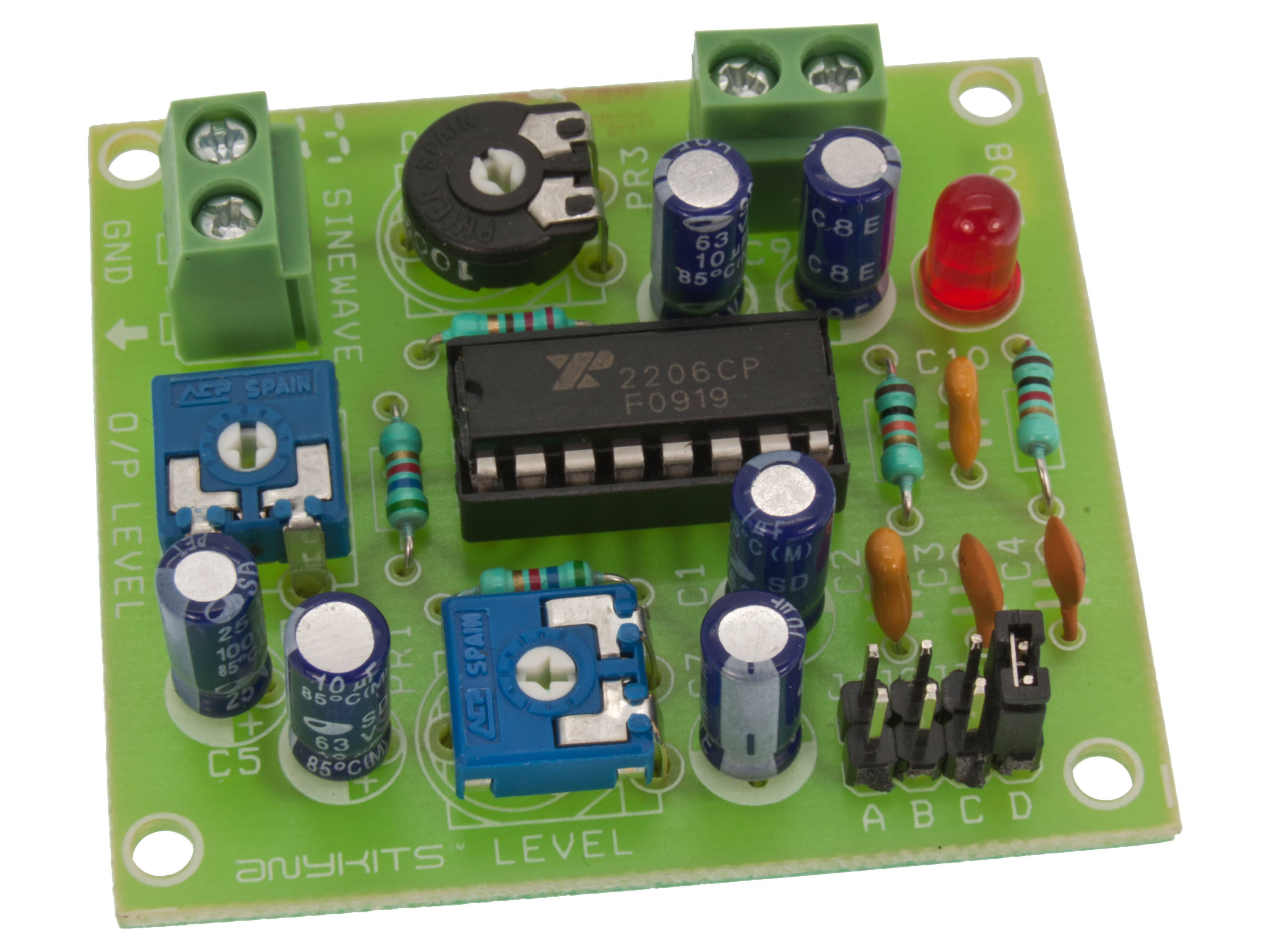

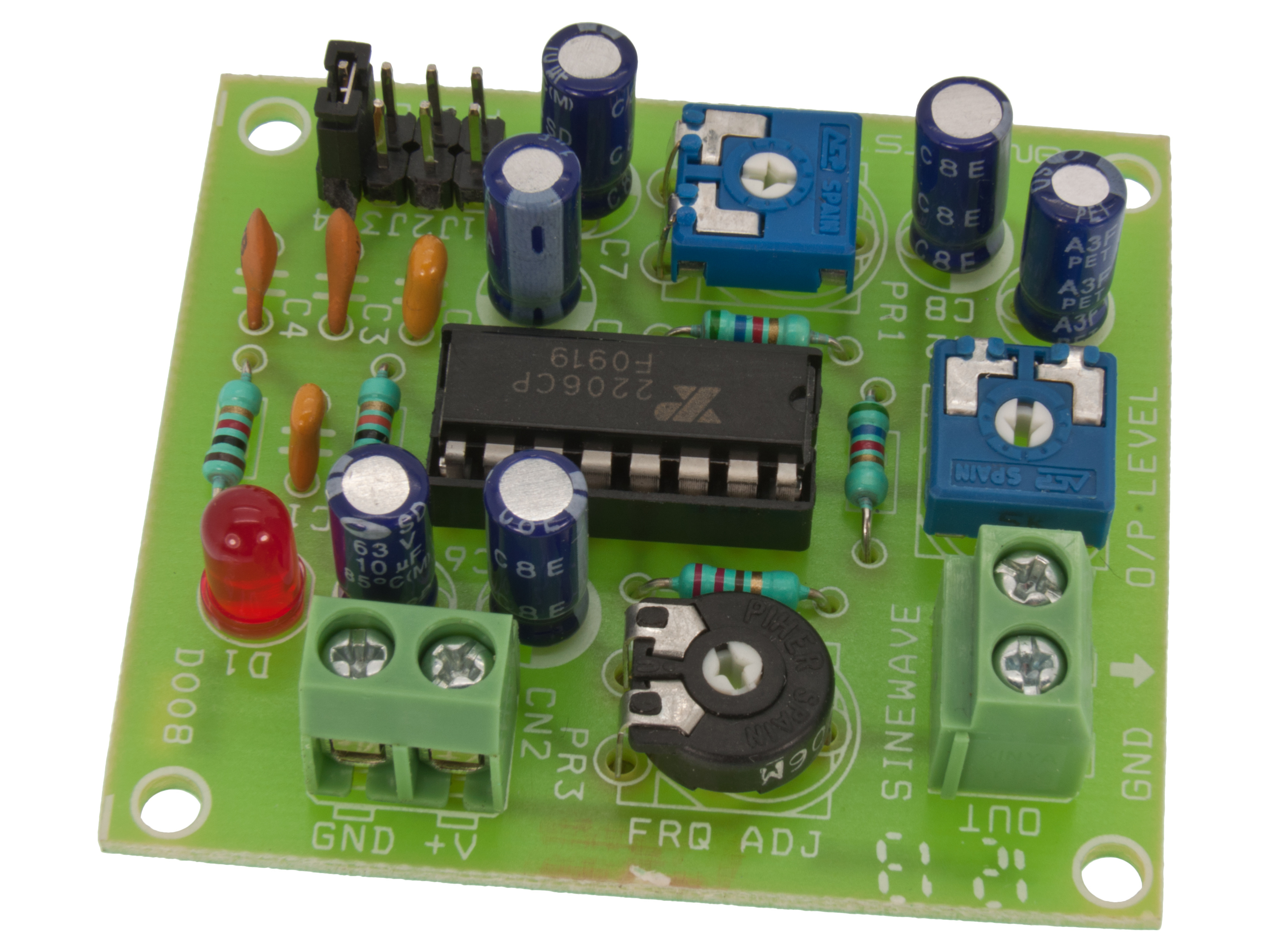

Sinewave Generator kit will provide you with a Sinusoidal Waveform output to test various instruments. You can also use the High quality output from this kit to insert a tone modulation in your audio and RF equipment. This kit is designed using XR2206 IC to provide High Stability and Accuracy.
* Supply input 12 VDC Max @ 50 mA
* Range : Jumper selectable and preset tunable range of 10 Hz - 100 KHz
* Output Level can be controller with onboard preset
* Power-On LED indicator
* Screw terminal connector for easy connection
* PCB dimensions 52 mm x 58 mm
* Supply input 12 VDC Max @ 50 mA
* Range : Jumper selectable and preset tunable range of 10 Hz - 100 KHz
* Output Level can be controller with onboard preset
* Power-On LED indicator
* Screw terminal connector for easy connection
* PCB dimensions 52 mm x 58 mm
Product information
SKU:
12303008
