Product description

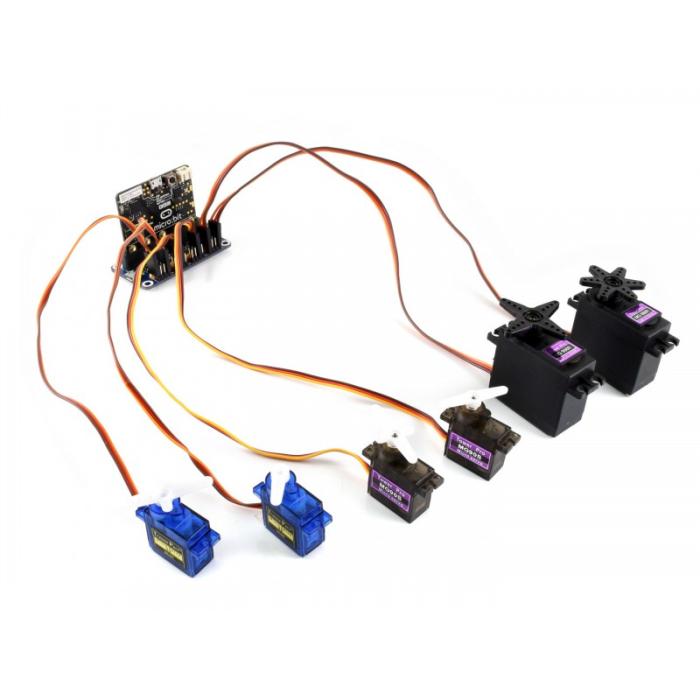

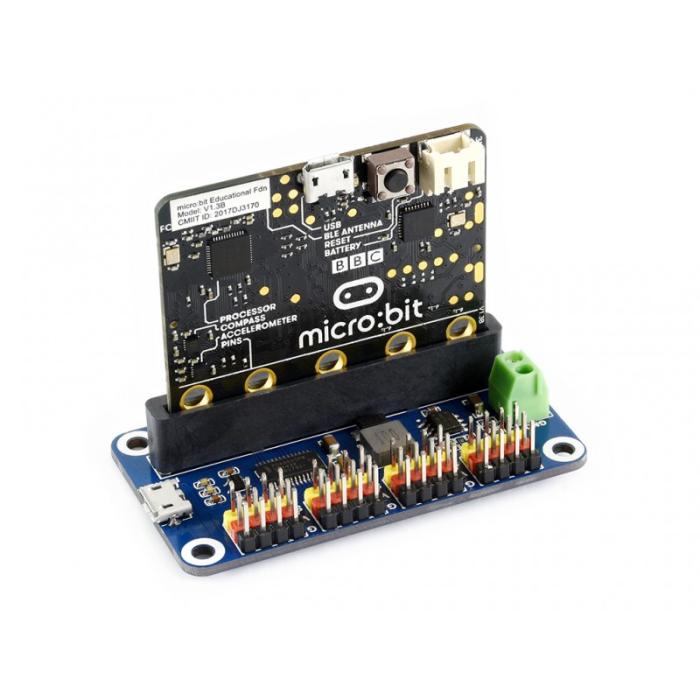

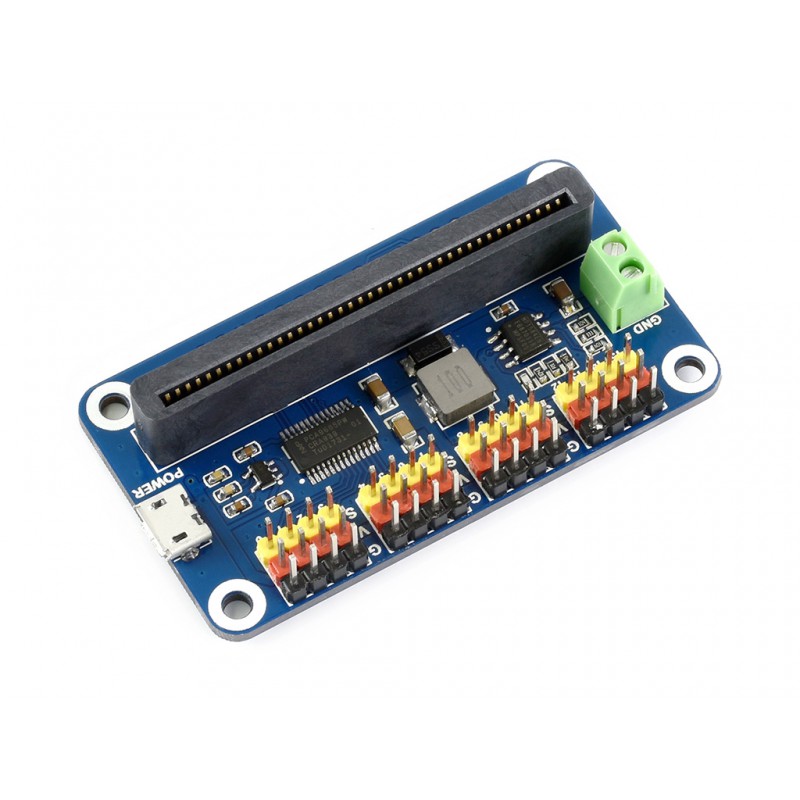

Servo driver for BBC micro:bit. Enables control of up to 16 servos. The module connects directly to the micro:bit board edge connector and requires no soldering. Suitable for prototyping and mechanical projects. The board is powered with 6–12 VDC for driving servos and motors. Logic levels are compatible with the micro:bit platform at 3.3 V. The board allows straightforward integration with micro:bit programming using graphical or text-based tools. BBC micro:bit device not included.
Specifications:
- Supply voltage (Vcc): 6 – 12 V via screw terminal
- Current (max), total for servos: 3 A
- Servo supply voltage: 5 V
- Outputs: 16 individual servo or PWM outputs
- Resolution: 12-bit
- Servo connection: standard servo connector
- Logic level: 3.3 V

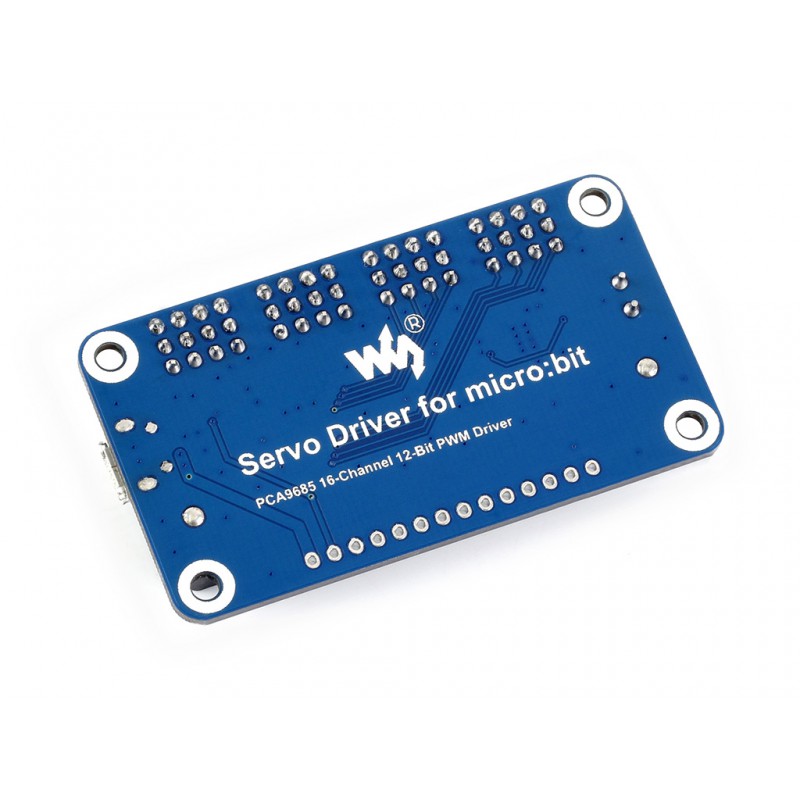

- PWM controller: PCA9685
- I2C: Yes
- Number of servo connectors: 16
- Dimensions: 65 x 36 mm
