Product description

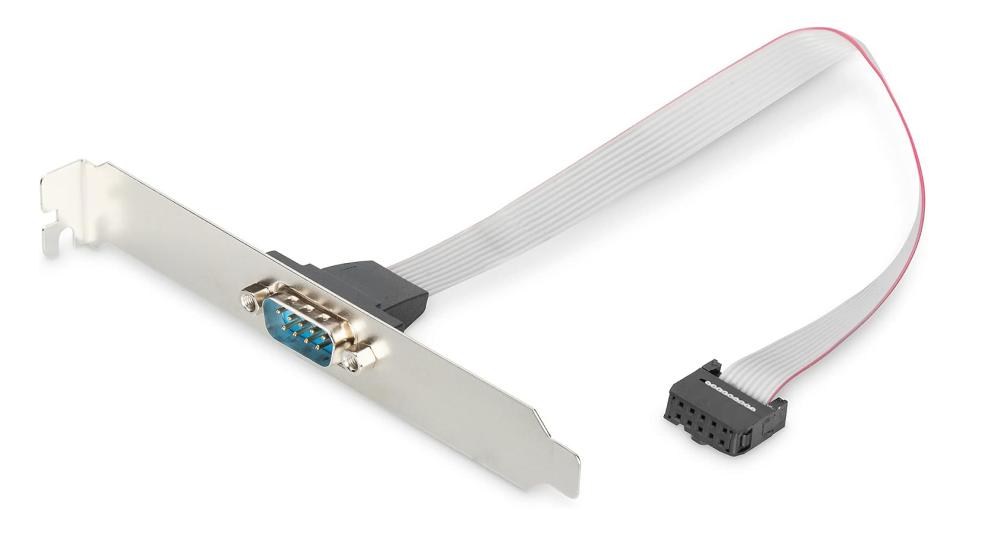

Serial port with adapter cable for connecting an internal serial motherboard header to an external RS232 port with DB9 connector. Mounted in an available expansion slot. Suitable for compatible motherboards with 10-pin IDC header.
Specifications:
- Connection 1: DB9 male
- Connection 2: 10-pin IDC female
- Serial interface: RS232
- Mounting: Expansion slot / slot bracket
- Pinout: 1-1, 6-2, 2-3, 7-4, 3-5, 8-6, 4-7, 9-8, 5-9
- Wire gauge: AWG26
- Cable length: 0.25 m
