Product description

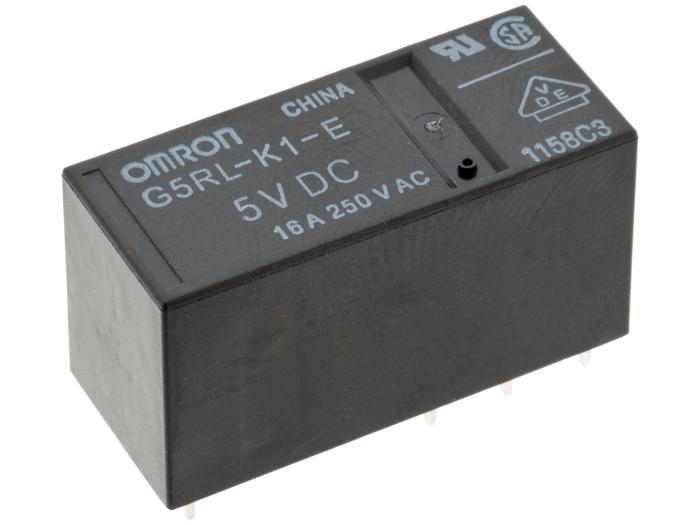

Latching relay with a double-winding coil. Switching contact NC/NO (SPDT) for PCB mounting. Relay with a latching dual coil. The coil has three connections. The center pin should be connected to the supply voltage, and by pulling either one or the other outer pins, the relay will switch its contact. The contact will be held in place after the current is cut.
Specifications:
- Coil voltage: 5 VDC
- Coil current: 150 mA
- Coil resistance: 33.3 ohm
- Relay type: Bistable / Latching (double-winding coil)
- Number of Poles: 1
- Contact Configuration: Switching NO/NC (on-on)
- Switching voltage (max): 250 VAC / 24 VDC
- Switching current (max): 16 A (AC) / 16 A (DC)
- Dimensions: 29x12.7x15.7 mm

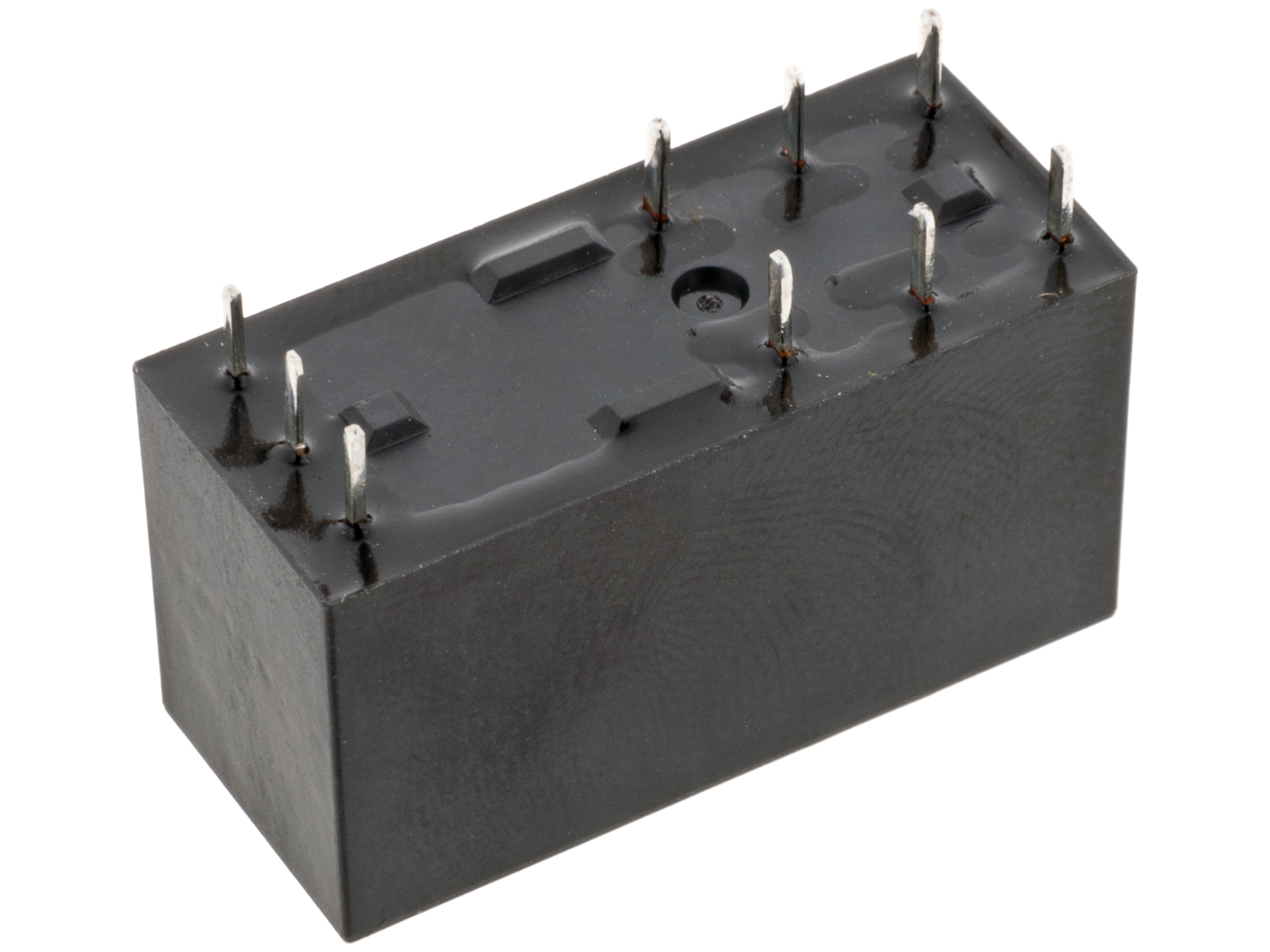

- Mounting type: PCB pins, THT (Through Hole)
- Manufacturer: Omron
- Model: G5RL-K1-E 5DC
