Product description

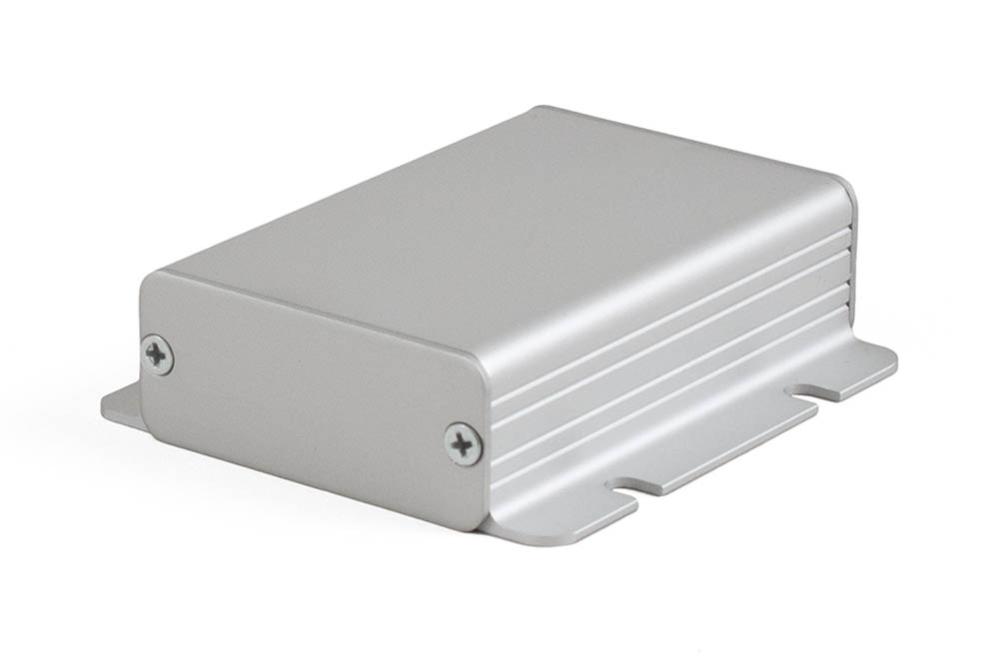

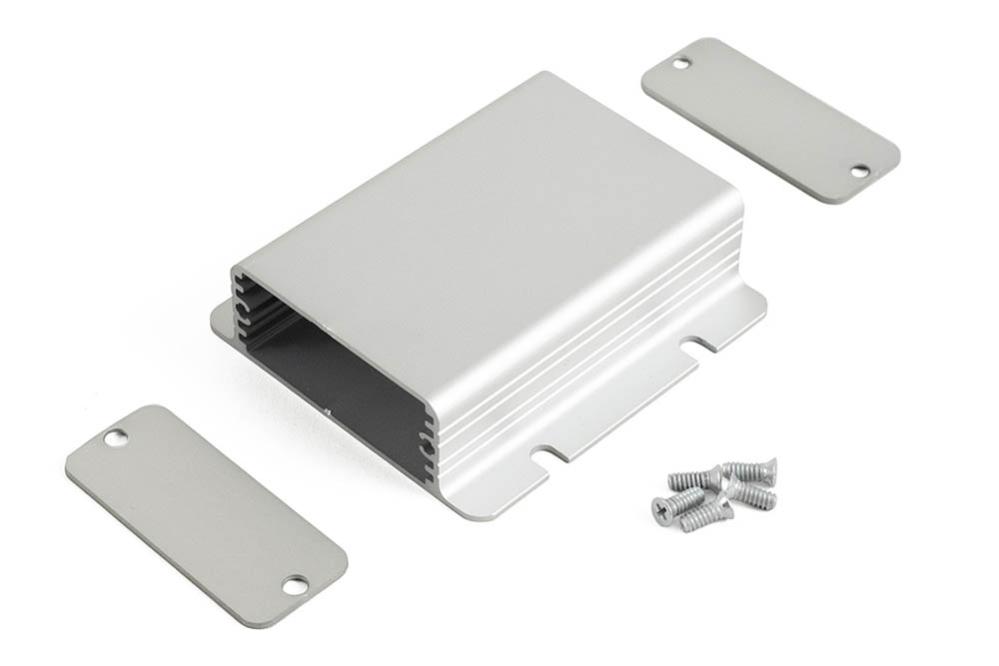

Enclosure made of extruded aluminium with integrated mounting flanges for wall mounting. The enclosure is designed for PCBs or other electronic equipment. PCBs are mounted by sliding them into internal slots in the enclosure. The mounting flanges are slotted and the bottom of the enclosure is completely flat. Supplied with aluminium end panels and mounting screws.
Specifications:
- Manufacturer: Hammond Manufacturing, Canada
- Series: 1455F
- Material: Extruded aluminium
- Wall thickness (min): 1.5 mm
- Mounting: Wall mounting
- PCB mounting: Internal slots
- End panels: Aluminium
- Finish: Natural anodized
- Dimensions: 80 x 54 x 23 mm (excl. flanges)
