Product description

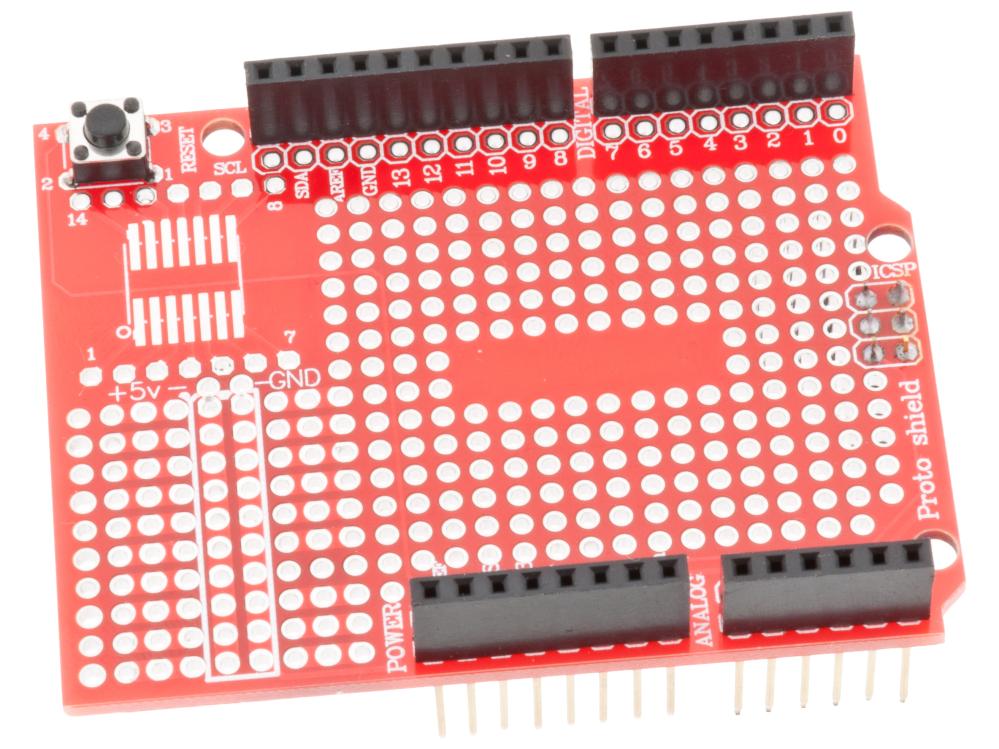

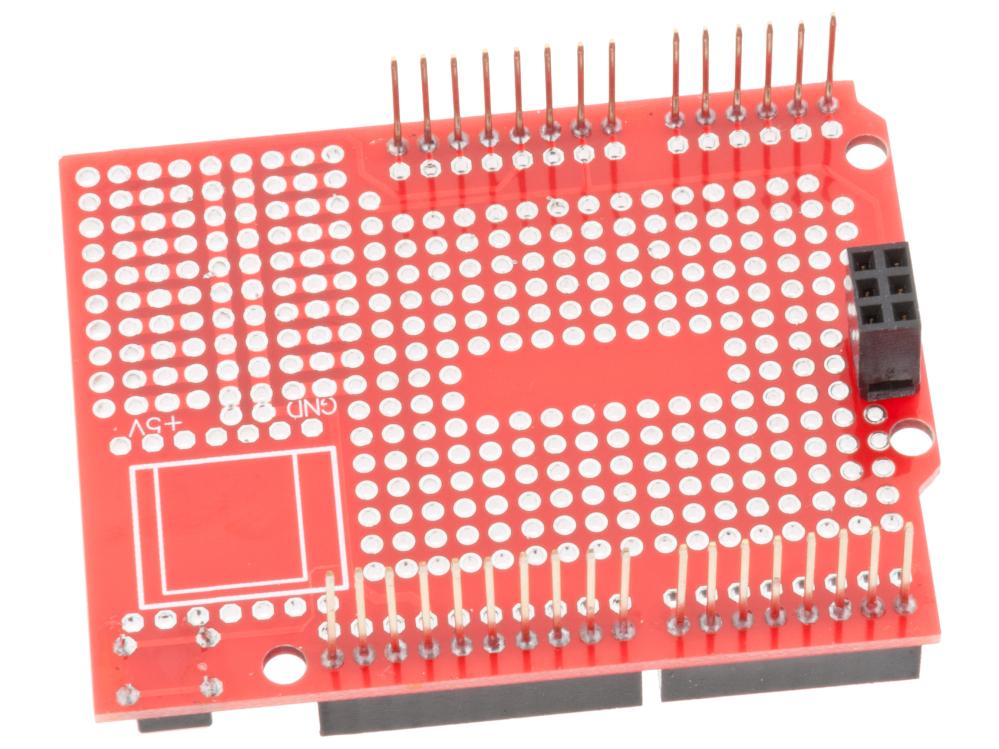

Pre-assembled prototype board (Proto Shield) compatible with Arduino UNO R3 / R4. The board mounts directly on top of the UNO and is used for building and testing custom connections and circuits. It features stackable female headers, allowing additional boards to be stacked on top. The prototyping area has pre-tinned through-holes. Solder pads are provided for mounting surface-mount ICs up to SO-14. All connection pins and power connections are accessible on the board. The board has both individual, unconnected holes and groups of interconnected holes to simplify common circuit connections, including interconnected 5 V and GND connections.
Specifications:
- Type: Prototype board, Proto Shield
- Compatibility: Arduino UNO R3 / R4
- Prototyping area: Solder pads for mounting components
- Reset button: Yes
- Prototype board dimensions: 70 x 55 x 20 mm
