Product description

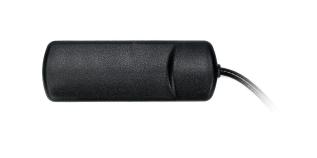

Ultra-thin flexible antenna for WiFi 6E, WiFi 7, Bluetooth, LPWA, ZigBee, RFID and ISM with high gain and low latency. Uses the 2.4GHz and 5-7Ghz bands.
Self-adhesive mounted, connects with 100mm long cable, u.Fl connector. Operating temperature of -40°C to +85°C.
Suitable for use with IoT devices, drones and UAVs, home automation, consumer electronics, mobile devices, industrial, scientific and medical (ISM) devices.
- Connector: u.Fl
- Dimensions: 39.6 x 8.4 x 0.1mm
- Frequencies (MHz): 2410-2490, 4920-5925, 5925-7125
- VSWR: ~1.2:1, ~1.4:1, ~2.1:1
- Efficiency (%): ~76, ~82, ~60.4
- Peak gain (dBi): ~2.2, ~3.8, ~3.2
- Impedance: 50Ohm
- Polarization: linear
- Maximum input power: 25W
