PoE module for Arduino - 5V

Art no: 41013000

Sorry, this product is outdated and no longer active

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

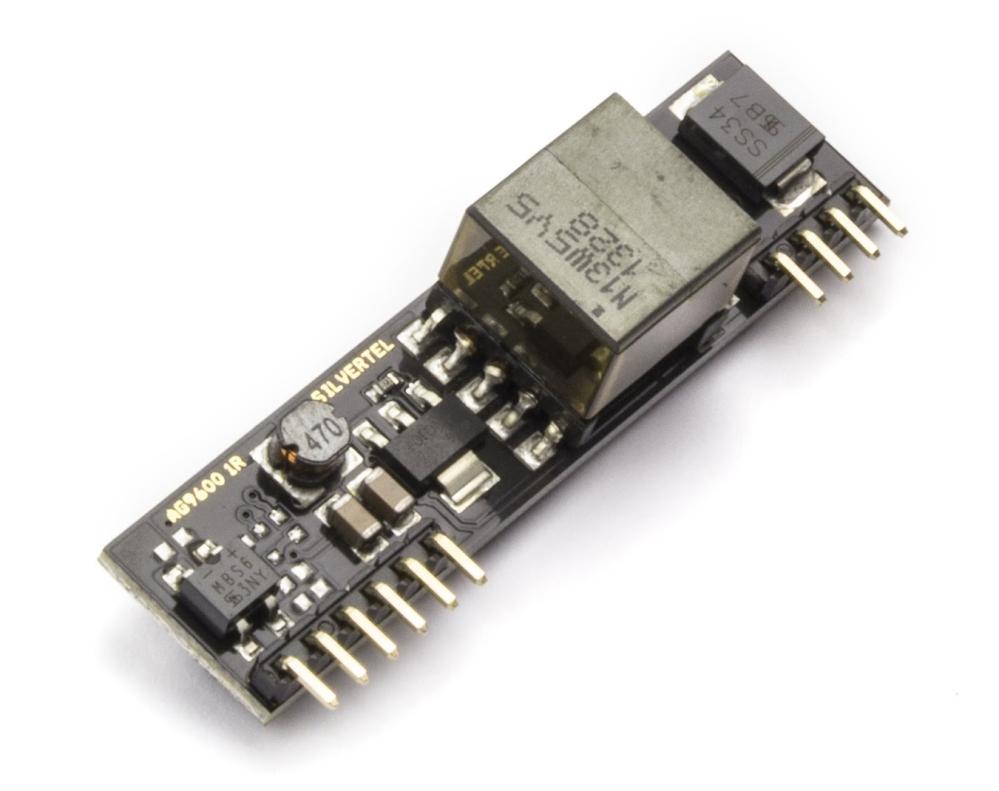

The Ag9600-1R is a module designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The Ag9600-1R provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The high efficiency DC/DC converter operates over a wide input voltage range (36V to 48V typ) and provides a regulated low ripple and low noise output. The DC/DC converter also has built-in overload and short-circuit output protection. Features: - IEEE802.3af compliant; - Small SIL package size - 56mm (h) x 14mm (h); - Low output ripple and noise; - Input voltage range 36V to 57V; - Output voltage 5V; Overload and short-circuit protection; High efficiency DC/DC converter (75% typ); 1500V isolation (input to output); This module could be used with Arduino YÚN.

Product information

  • SKU:

    41013000
