Product description

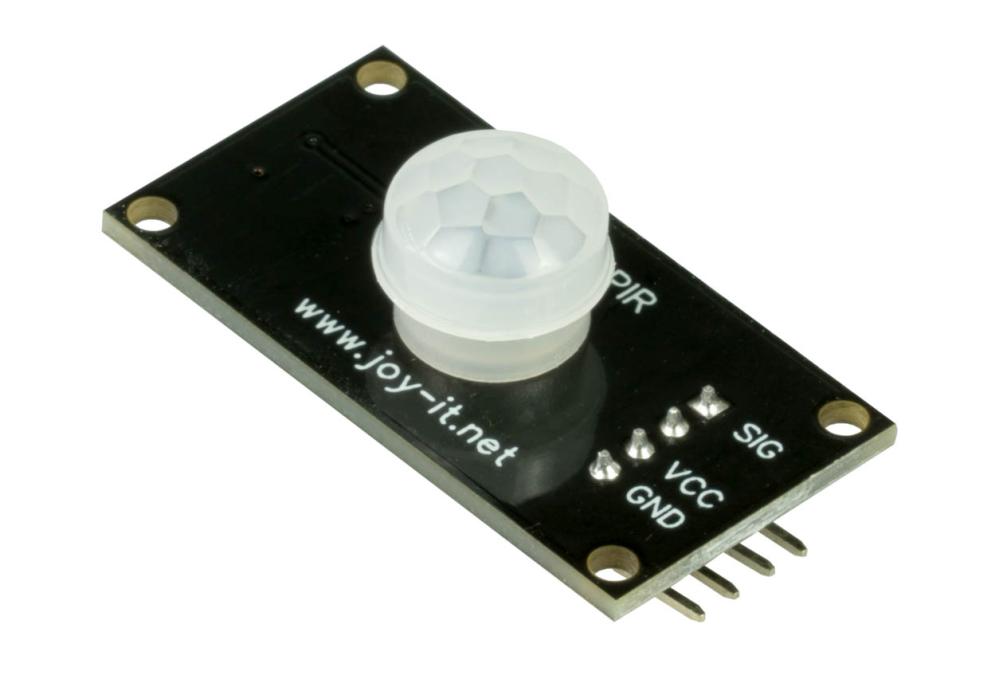

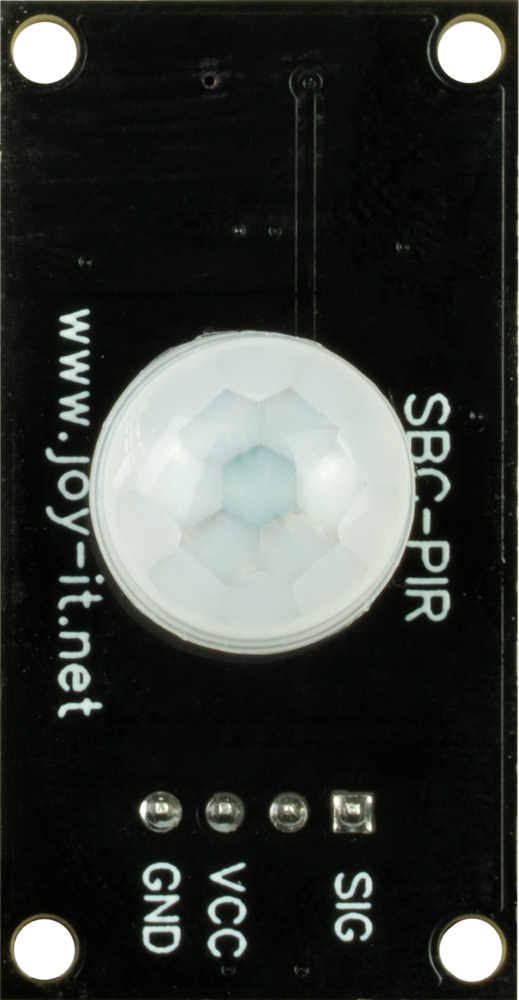

PIR motion sensor used to detect movement via changes in infrared radiation. The module is based on a pyroelectric sensor with a Fresnel lens that registers motion within the detection area. Provides a digital output when motion is detected. The sensor has adjustable range set via a potentiometer. The module is suitable for security systems, presence detection, and automation together with a microcontroller.
Specifications:
- Sensor type: PIR (pyroelectric infrared)
- Detection angle: 120°
- Detection distance: Up to 6 m (preset to 3 m)
- Supply voltage: 3 - 5 VDC

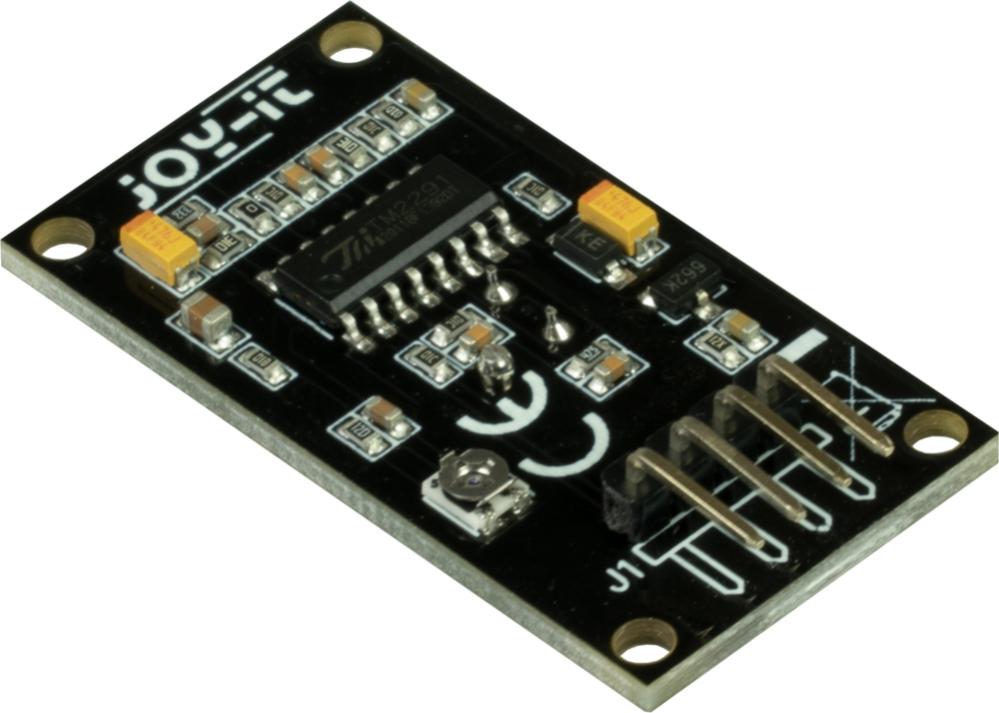

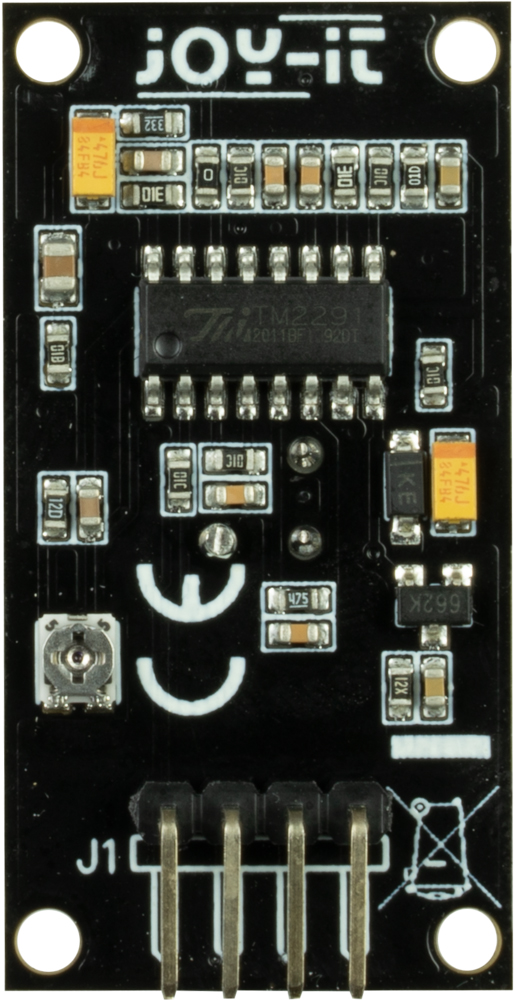

- IR signal processor: BIS0001
- Adjustable sensitivity: via potentiometer
- Operating temperature: -10 to 70 °C
- Dimensions: 21 × 40 × 19 mm
