Product description

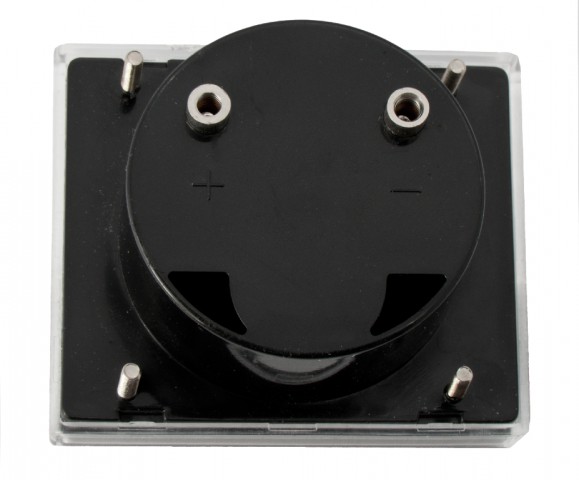

Analog panel meter for measuring direct current up to 50 µA. The meter is suitable for educational purposes, installation in electronic equipment, etc. It features an analogue pointer scale, zero adjustment screw and compact design for clear readings in sensitive measurement applications.
Specifications:
- Measurement type: Analogue panel meter
- Measurement range: up to 50µA DC
- Maximum rated voltage: 75VDC
- Accuracy class: 2.5
- Internal resistance: 20,000Ohm
- Display type: Analogue
- Measuring mechanism: Moving coil
- Zero adjustment: Yes

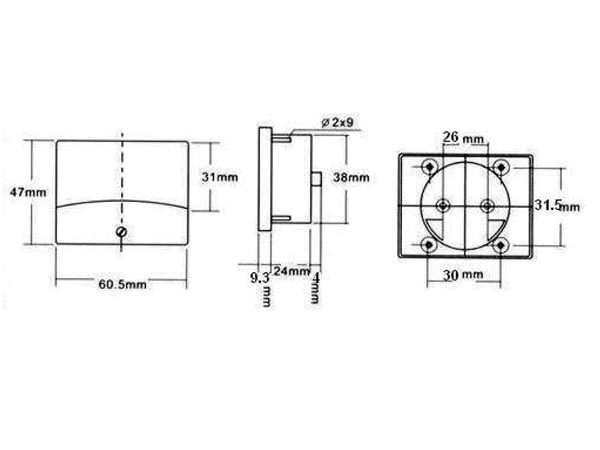

- Dimensions: 60.5 x 47 x 37.3mm
