Product description

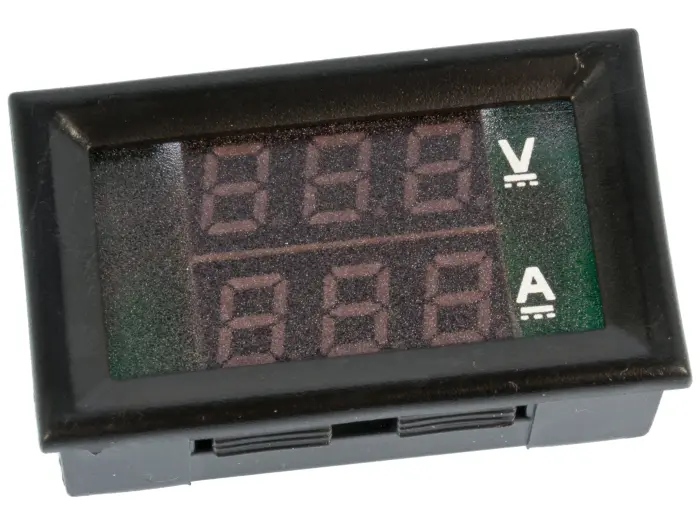

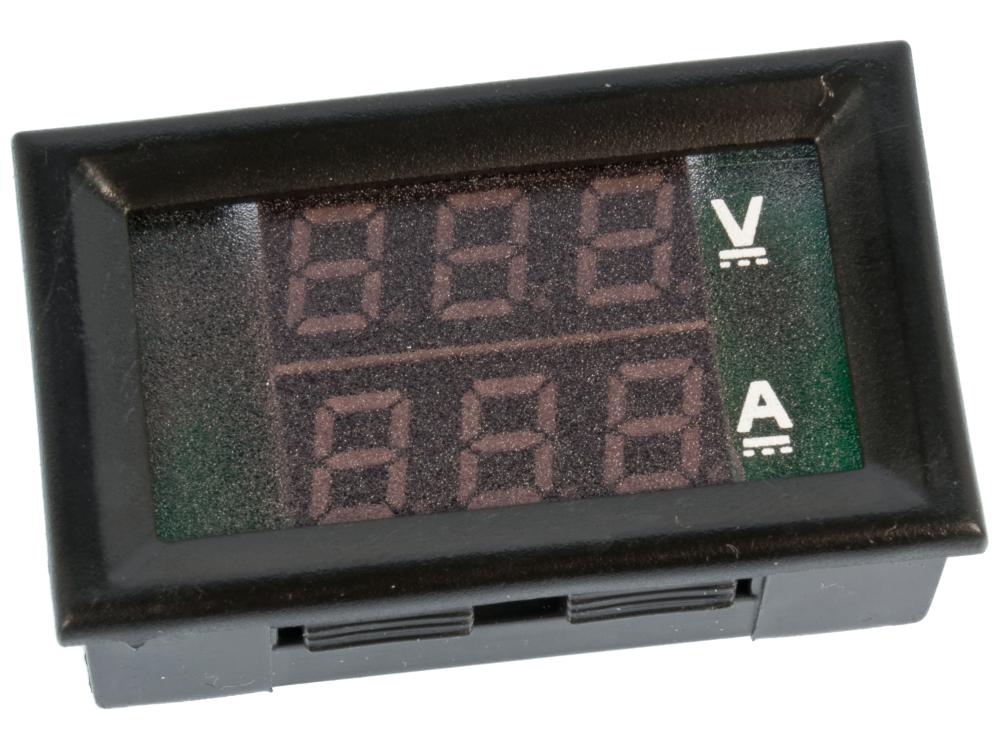

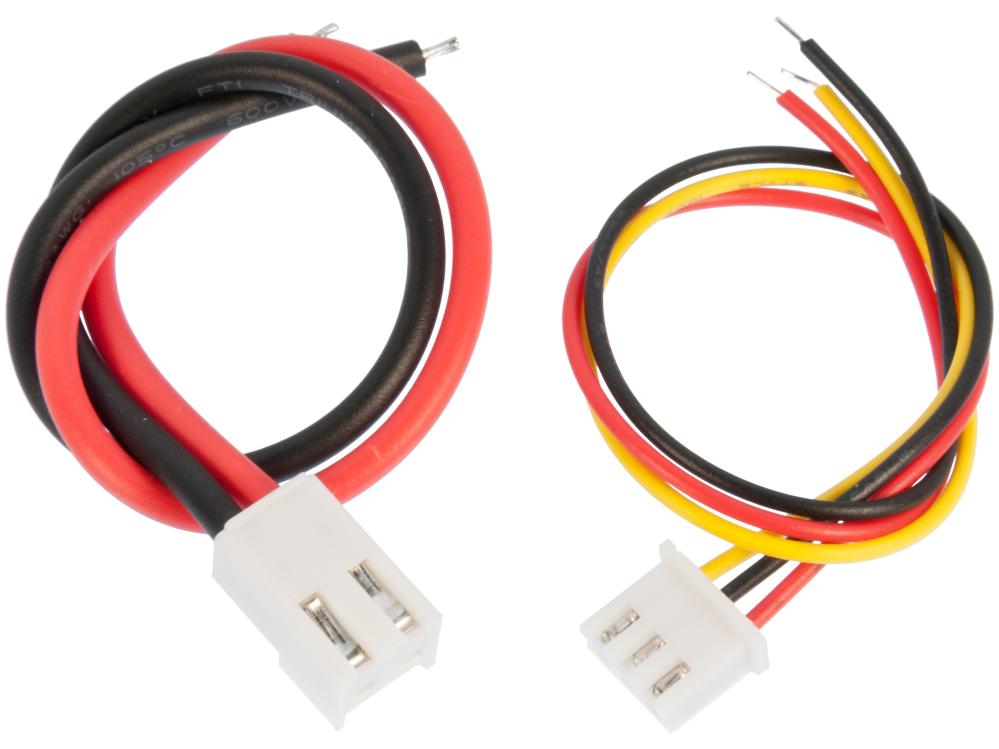

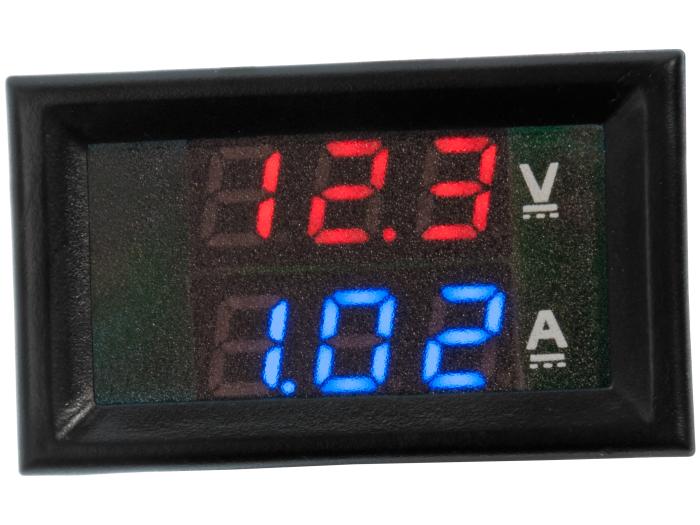

Panel mounted instrument for measuring voltage and current. The instrument is powered with 4.5 - 30V and can measure voltages between 0 and 100VDC and current between 0 and 10A. The instrument has 150mm leads and a frame for panel mounting.
* Dimensions: 47.4 x 28.2 x 22.1mm
* Mounting hole: 44.8 x 25.8mm
* Digit height: 7.11mm
* Digit color: red / blue
* Measuring range: 0 - 100VDC / 0 - 10A
* Accuracy: ±1%
* Supply voltage: 4.5 - 30VDC
* Current draw: 8 - 20mA
* Dimensions: 47.4 x 28.2 x 22.1mm
* Mounting hole: 44.8 x 25.8mm
* Digit height: 7.11mm
* Digit color: red / blue
* Measuring range: 0 - 100VDC / 0 - 10A
* Accuracy: ±1%
* Supply voltage: 4.5 - 30VDC
* Current draw: 8 - 20mA
