Product description

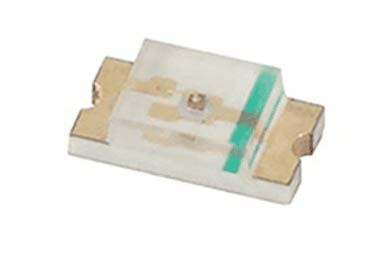

JSL-1206UGC is a surface-mount LED with yellow-green light emission and a clear lens. Its compact size of 3.2 x 1.6 x 1.1 mm makes it suitable for space-constrained applications such as backlighting in mobile devices, dashboards, LCD displays, and switches in automotive systems. The LED offers a typical luminous intensity of 35 mcd at 20 mA and a wide viewing angle of 120°, providing uniform light distribution even at low power. The typical forward voltage is 2.0 V at 20 mA, with a maximum rated current of 25 mA. The maximum pulse peak current is 100 mA (at 1 kHz and 10% duty cycle). The operating temperature range is -40 to +85 °C, making the component robust for industrial and automotive environments. The product is RoHS compliant and designed for surface mounting (SMD 1206).
