Product description

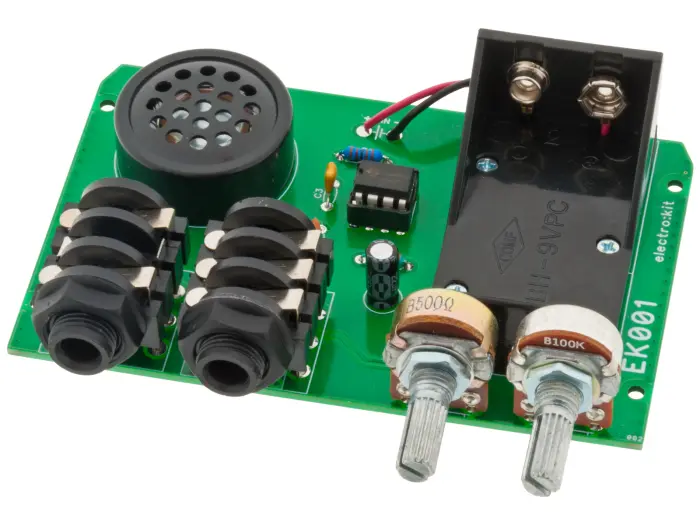

EK001 is an oscillator designed for use in Morse code training. The oscillator generates a tone as long as the Morse key is held down. Equipped with potentiometers for tone frequency and volume. The oscillator can be used with a loudspeaker or headphones. The switched headphone jack disconnects the loudspeaker when headphones are connected. Suitable enclosure for installation: 41011410. A drilling template for the enclosure is available in the manual. Supplied without a Morse key and battery.
Specifications:
- Tone: Adjustable 600 - 2000 Hz
- Volume: Adjustable
- Headphone jack: 6.3 mm
- Morse key jack: 6.3 mm
- Loudspeaker: Included
- Battery: 9 V (not included)
