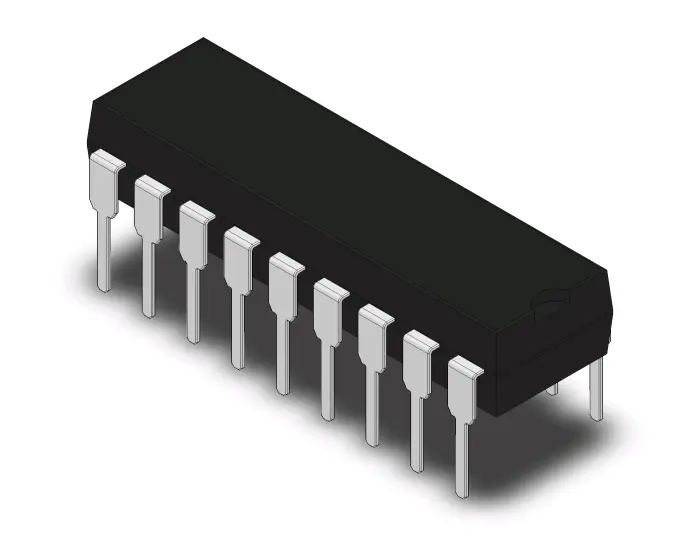

PIC16F628A-I/P DIP-18
Art no: 40360008
Microchip - PIC16F628A-I/P
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
8-bit Microcontroller based on the PIC RISC architecture.
Max CPU operating frequency: 20MHz
Flash: 2k words
RAM: 224B
EEPROM: 128B
Features
* Internal and external oscillator options:
- Precision internal 4 MHz oscillator factory calibrated to ±1%
- Low-power internal 48 kHz oscillator
- External Oscillator support for crystals and resonators
* Power-saving Sleep mode
* Programmable weak pull-ups on PORTB
* Multiplexed Master Clear/Input-pin
* Watchdog Timer with independent oscillator for reliable operation
* Low-voltage programming
* In-Circuit Serial Programming (via two pins)
* Programmable code protection
* Brown-out Reset
* Power-on Reset
* Power-up Timer and Oscillator Start-up Timer * Wide operating voltage range (2.0-5.5V)
* 16 I/O pins with individual direction control
* High current sink/source for direct LED drive
* Analog comparator module with:
- Two analog comparators
- Programmable on-chip voltage reference (VREF) module
- Selectable internal or external reference
- Comparator outputs are externally accessible
* Timer0: 8-bit timer/counter with 8-bit programmable prescaler
* Timer1: 16-bit timer/counter with external crystal/clock capability
* Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
* Capture, Compare, PWM module:
- 16-bit Capture/Compare
- 10-bit PWM
* Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI
Max CPU operating frequency: 20MHz
Flash: 2k words
RAM: 224B
EEPROM: 128B
Features
* Internal and external oscillator options:
- Precision internal 4 MHz oscillator factory calibrated to ±1%
- Low-power internal 48 kHz oscillator
- External Oscillator support for crystals and resonators
* Power-saving Sleep mode
* Programmable weak pull-ups on PORTB
* Multiplexed Master Clear/Input-pin
* Watchdog Timer with independent oscillator for reliable operation
* Low-voltage programming
* In-Circuit Serial Programming (via two pins)
* Programmable code protection
* Brown-out Reset
* Power-on Reset
* Power-up Timer and Oscillator Start-up Timer * Wide operating voltage range (2.0-5.5V)
* 16 I/O pins with individual direction control
* High current sink/source for direct LED drive
* Analog comparator module with:
- Two analog comparators
- Programmable on-chip voltage reference (VREF) module
- Selectable internal or external reference
- Comparator outputs are externally accessible
* Timer0: 8-bit timer/counter with 8-bit programmable prescaler
* Timer1: 16-bit timer/counter with external crystal/clock capability
* Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
* Capture, Compare, PWM module:
- 16-bit Capture/Compare
- 10-bit PWM
* Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI
Documents
Technical data
Attribute | Value |
---|---|
Architecture
|
8-bit
|
Case
|
DIP-18
|
Clock
|
20 MHz
|
Eeprom
|
0.125
|
Family
|
PIC16
|
Flash
|
3.5
|
Gpio
|
16
|
Pwm
|
1
|
Ram
|
0.2
|
Supply-voltage-max
|
5.5 V
|
Supply-voltage-min
|
3 V
|
Timers
|
3
|
Uart
|
1
|
SKU:
40360008MPN:
PIC16F628A-I/P
