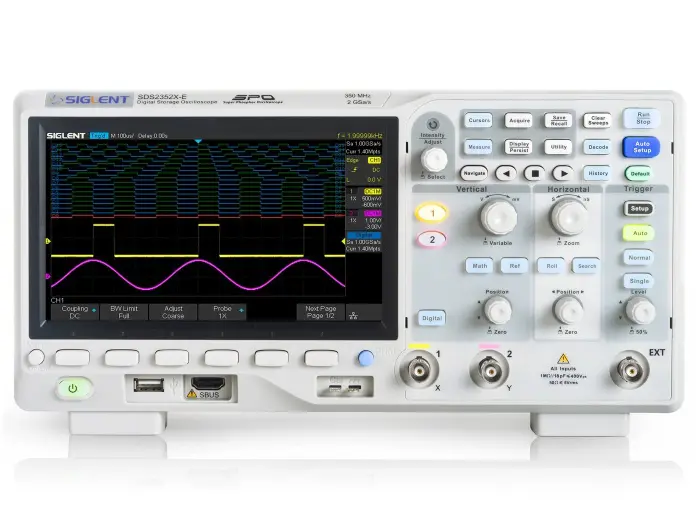

Oscilloscope 350MHz 2-ch Siglent SDS2352X-E

Art no: 41016820 - Siglent
Shop this product, Oscilloscope 350MHz 2-ch Siglent SDS2352X-E
price 10 445 SEK
Including 25% VAT
In stock, 1 pcs
Unit: Piece

10 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fdelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent's newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses upto 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.


Key Features



* 200MHz, 350MHz bandwidth models
* Real-time sampling rate up to 2 GSa/s (1 GSa/s per channel, if bothchannels active)
* The newest generation of SPO technology
· Waveform capture rate up to 110,000 wfm/s (normal mode), and
· 400,000 wfm/s (sequence mode)
· Record length up to 28 Mpts
· Digital trigger system
* Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
* Serial bus triggering and decoding (standard), supports protocols IIC, SPI,UART, CAN, LIN
* Video trigger, supports HDTV
* Low background noise with voltage scales from 500µV/div to 10V/div
* 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
* Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture qualifying events
* History waveform record (history) function (maximum recorded waveform length is 80,000 frames)
* Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
* 1 Mpt FFT
* Math and measurement functions use all sampled data points in memory (up to 28 Mpts)
* Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
* Preset key can be customized for user settings or factory "defaults"
* Security Erase mode
* High Speed hardware based Pass/ Fail function
* 16 Digital channels (MSO) (option)
* Bode plot
* Search and navigate
* USB AWG module(option)
* USB WIFI adapter(option)
* Web Browser based control
* Large 7 inch TFT -LCD display with 800 * 480 resolution
* Multiple interface types: USB Host, USB Device (USB -TMC), LAN, Pass / Fail, Trigger Out
* Supports SCPI remote control commands
* VXI-11+SCPI, Telnet (port 5024) +SCPI and Socket (port 5025) +SCPI programming over LAN
* Supports web control and virtual instrument control panel for both PC and mobile terminals
* Supports Multi-language display and embedded online help

Technical data

Technical data/attributes for this product
Attribute Value
Vertical resolution
8
Bandwidth
350 MHz
Channels
2
Level
Insteg
Touch screen
Nej
Web server
Ja
  • SKU:

    41016820
  • MPN:

    SDS2352X-E
