Product description

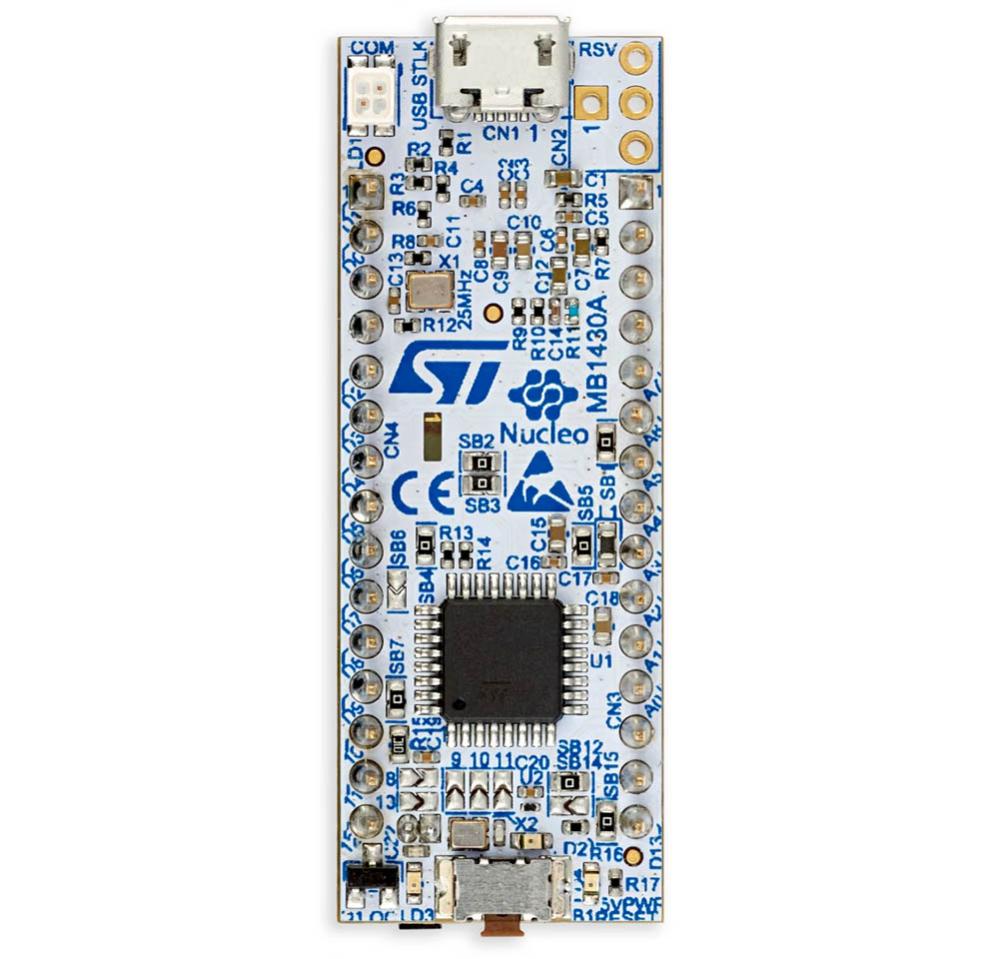

NUCLEO-G431KB is a development board in STMicroelectronics' STM32 Nucleo-32 series, based on the STM32G431KBT6 microcontroller. The board features an integrated STLINK-V3E debugger/programmer and therefore does not require a separate programming or debug probe.
The board features Arduino Nano V3 connectivity and can be powered via the ST-LINK USB VBUS or from an external power source. ST-LINK supports mass storage, Virtual COM port, and debug port. The STM32Cube MCU Package includes software libraries and examples.
Specifications:
- Manufacturer: STMicroelectronics
- Model: NUCLEO-G431KB
- Series: STM32 Nucleo-32
- Microcontroller: STM32G431KBT6
- MCU series: STM32G4
- Package: 32 pins
- Flash memory: 128 kB
- Debugger/programmer: Integrated STLINK-V3E
- ST-LINK USB connection: Micro-AB USB
- Expansion connector: Arduino Nano V3
- User LED: 1
- Push button: Reset
- Crystal oscillator: 24 MHz
- Power supply: ST-LINK USB VBUS or external power source
- Development environments: IAR Embedded Workbench, MDK-ARM, STM32CubeIDE
