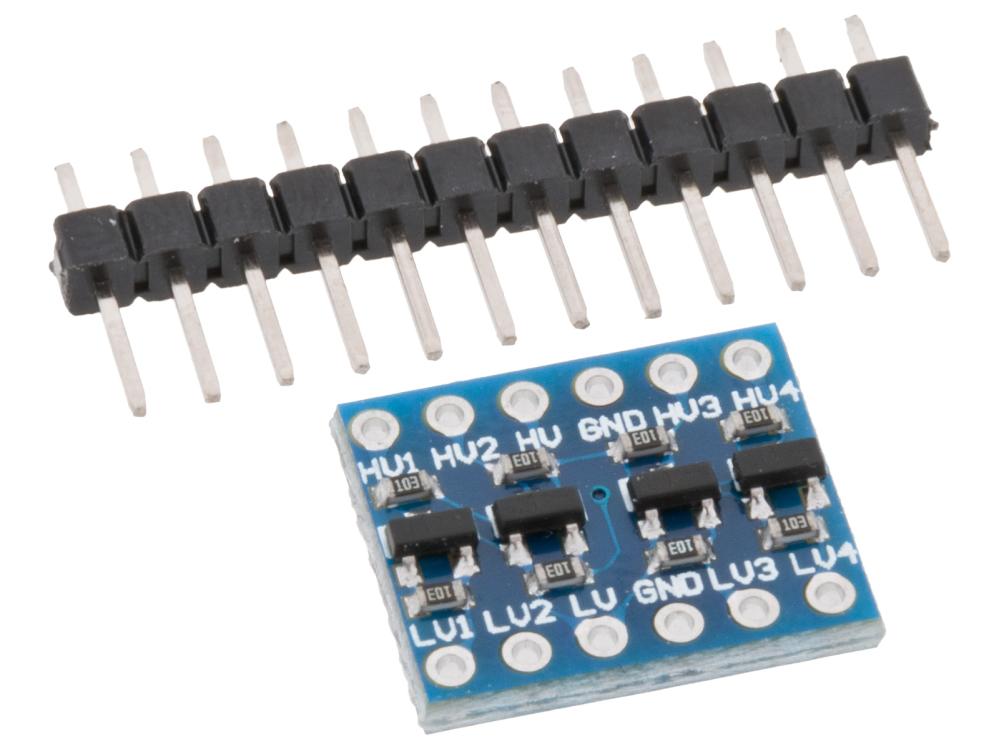

Logic level converter 4-ch Bi-directional 3.3V -- 5V @ electrokit (1 of 2)

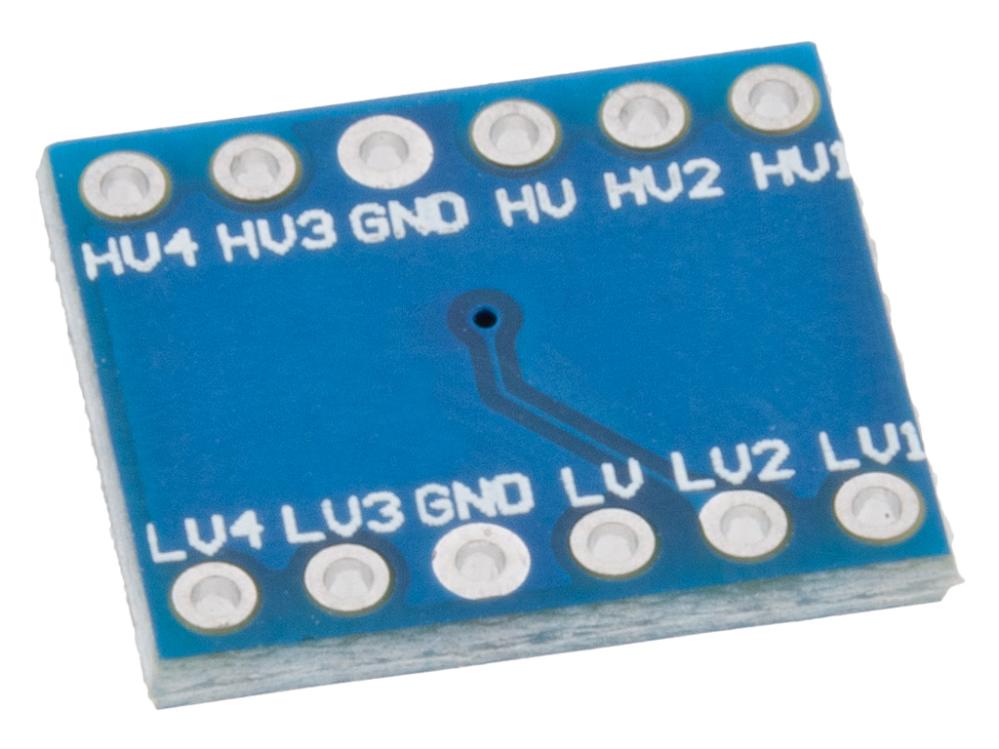

Logic level converter 4-ch Bi-directional 3.3V -- 5V @ electrokit (2 of 2)

Logic level converter 4-ch Bi-directional 3.3V -- 5V

Art no: 41017630

29 SEK

Including 25% VAT

Mängdrabatt:
1pcs = 29:- 5pcs = 130:50 10pcs = 246:50

Quantity discount
Quantity	Price
1 till 4	29 SEK
5 till 9	26.10 SEK
10 till 24	24.65 SEK
25 till	21.75 SEK

In stock, 63 pcs. Leveranstid ca 1-3 vardagar

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

4-channel bi-directional logic level converter for I2C and other slow digital interfaces. The module is based on BSS138 FETs with 10K pull-ups and is used to adapt logic levels between systems such as 5V and 3.3V devices. It is intended for logic level conversion and not for driving loads from the high-voltage side.

Specifications:

Channels: 4
FET: 4 x BSS138
Pull-ups: 10K
Low side: Down to 1.8V
High side: Up to 10V
Interface: I2C, TTL Serial, slow SPI <2MHz and other digital interfaces
Direction: Bi-directional and unidirectional
Included: Pin headers (not pre-soldered)
Dimensions: 15 x 12.5 mm
