Nano Shield

Art no: 41012443
Shop this product, Nano Shield
price 79 SEK
Including 25% VAT
In stock, 43 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

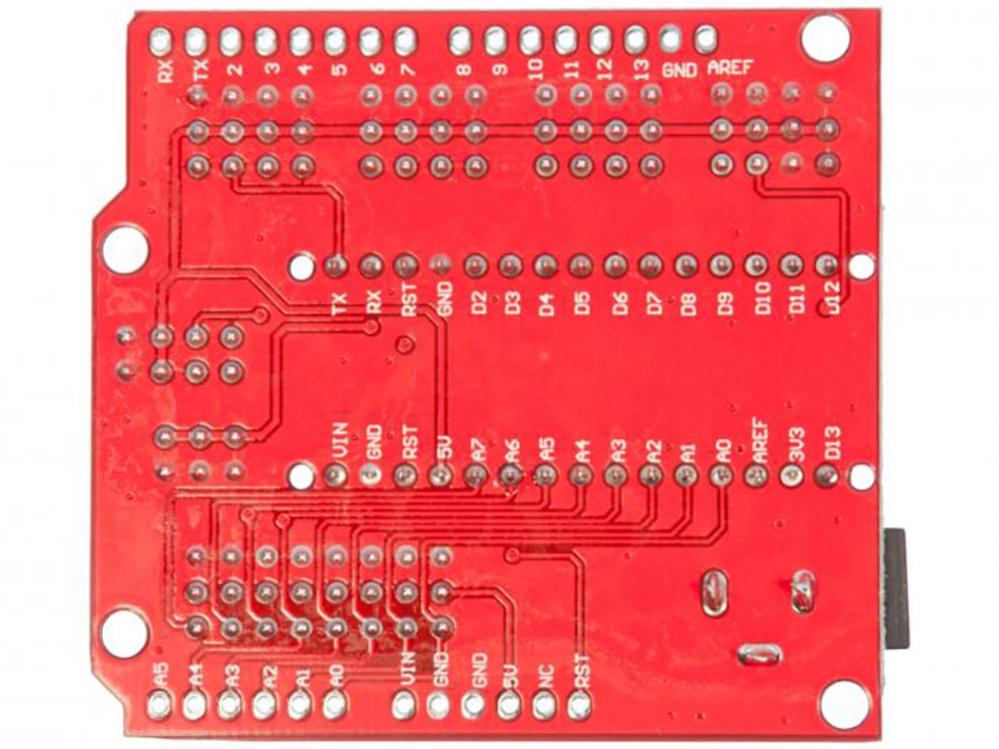

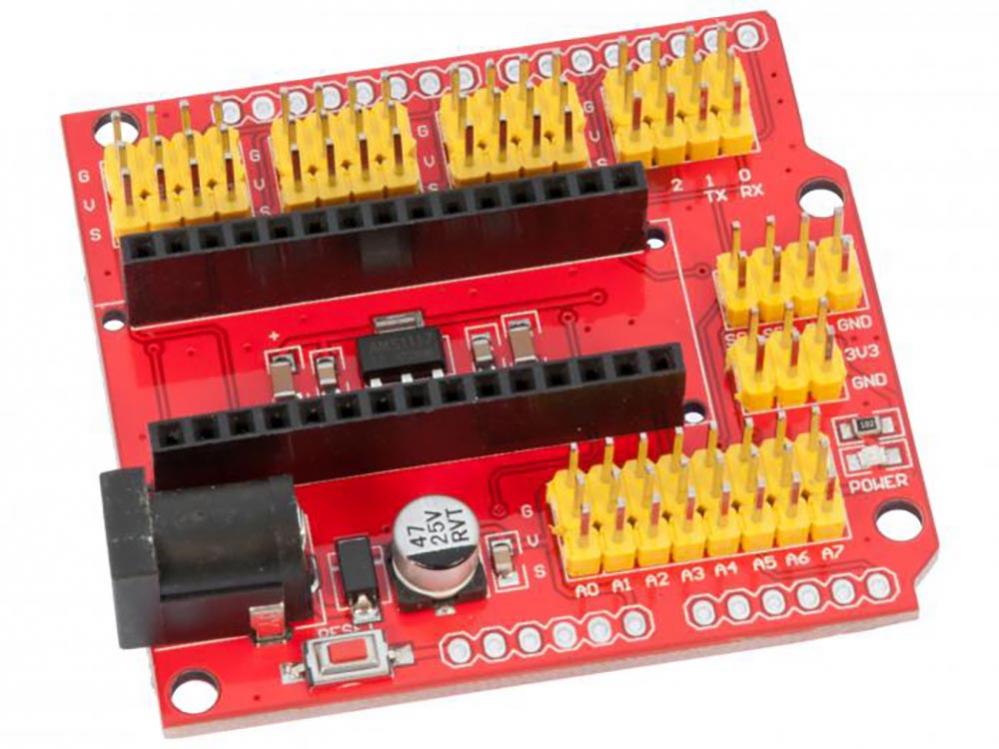

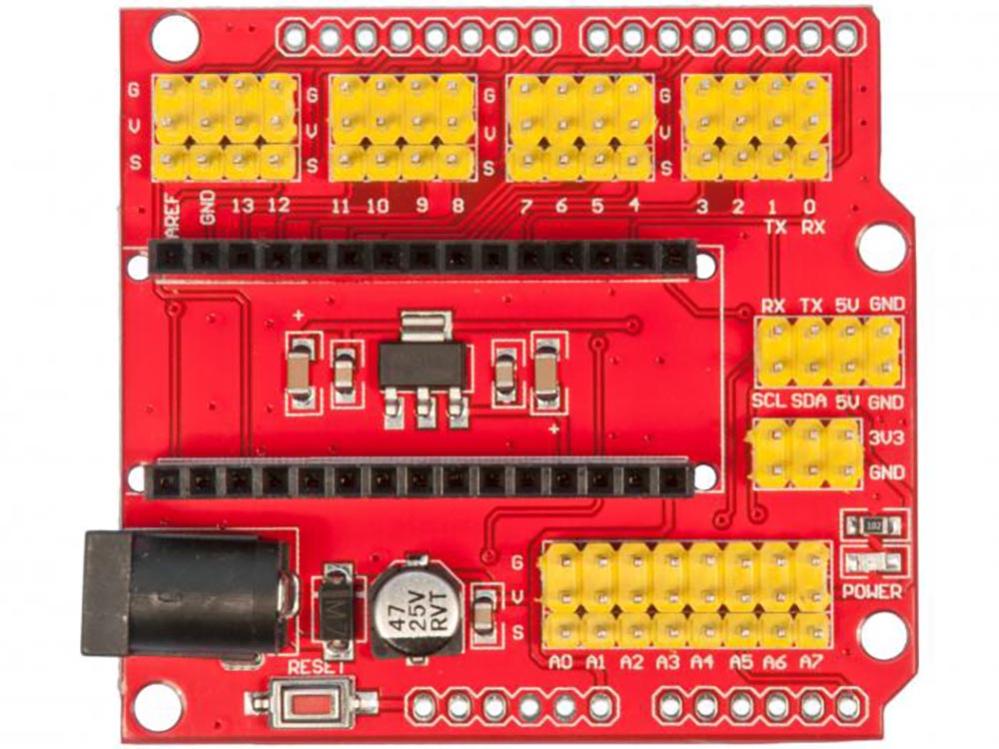

Shield for Arduino Nano. Breaks out all the GPIOs of the Nano to a more accesible format. The board has a good many connectors for various things, such as servos,sensors, I2C, UART, AREF and 3.3V output.

Connections:
* 14x Servo connectors (GND,VCC,SIG)
* 8x Connectors for ADC
* 6x PWM outputs
* 1x I2C connector (SCL,SDA,VCC,GND)
* 1x UART connector (RX,TX,VCC,GND)
* 3x 3.3V output

* Dimensions: 59 x 58mm
* Supply voltage: 7 - 12VDC

Technical data

Technical data/attributes for this product
Attribute Value
Formfactor
Arduino NANO
  • SKU:

    41012443
