Product description

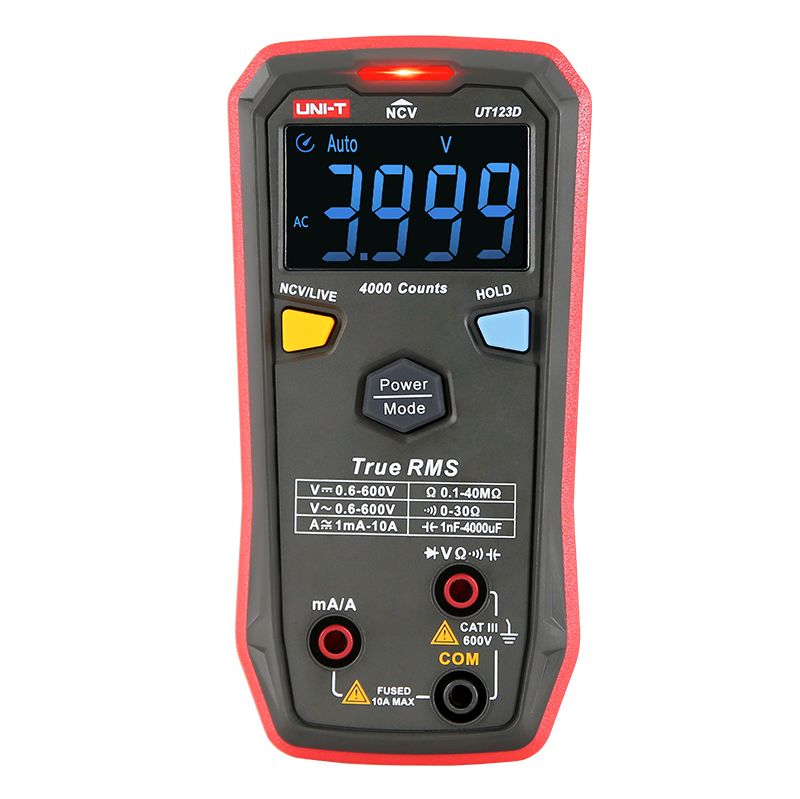

UNI-T UT123D is a smart digital multimeter developed to be extremely easy to use. You do not need to make any manual selections – the multimeter automatically identifies the type of measurement required. It is ideal for beginners and less experienced users who simply want a meter that works. Suitable for everything from servicing and troubleshooting to home use.
The instrument automatically detects AC/DC voltage, resistance, diode, and continuity measurements. This makes operation quick and easy, especially for less experienced users.
The clear EBTN display provides high contrast and good readability even in low-light environments. The instrument is also equipped with an NCV function for non-contact voltage detection, along with audible and visual indication for NCV, continuity, and low battery level.
Example applications:

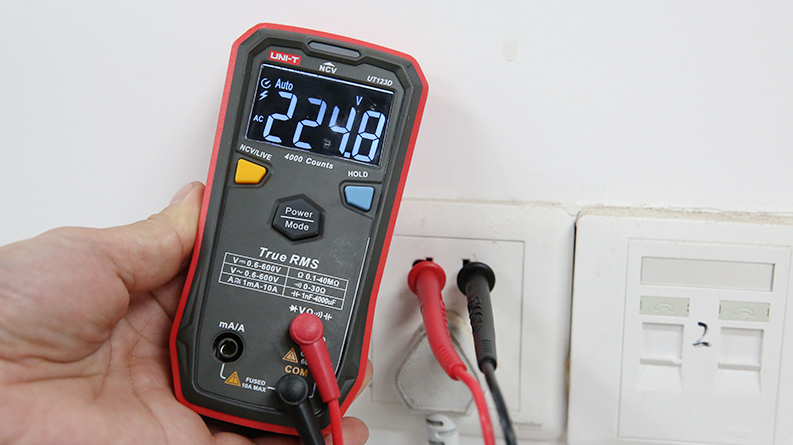

- Measurement of AC and DC voltage

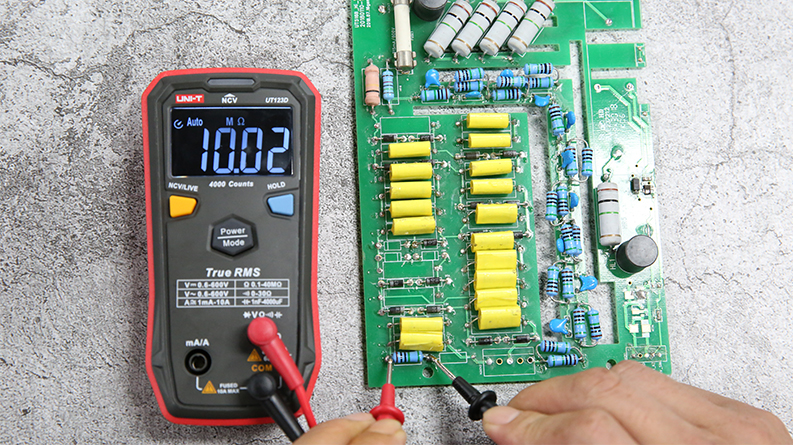

- Resistance and continuity testing

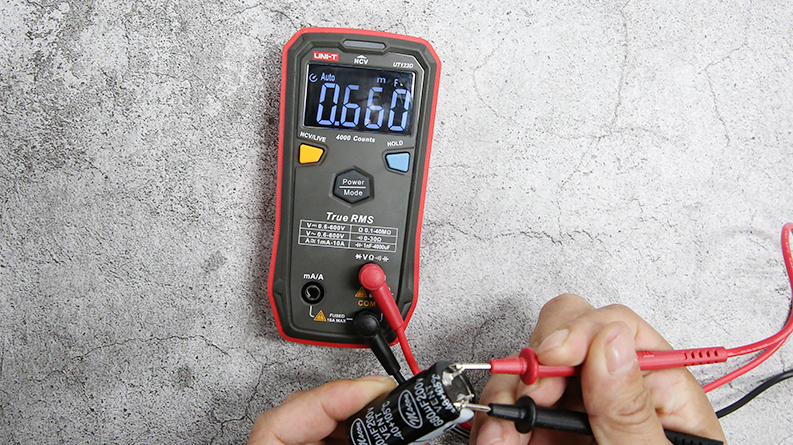

- Diode test and capacitance measurement

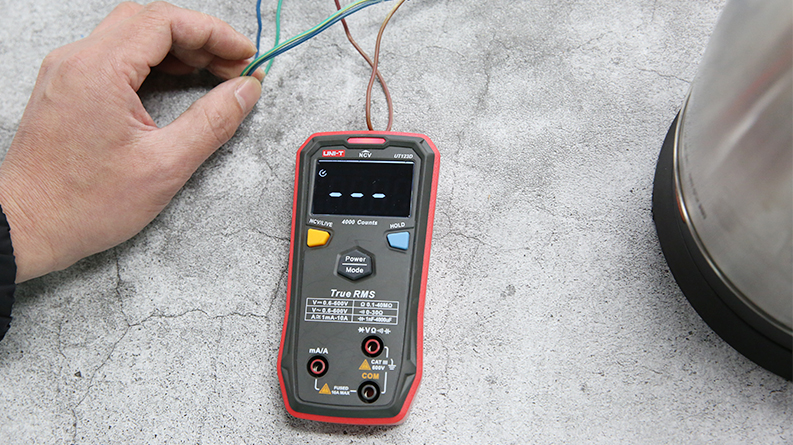

- Non-contact voltage detection (NCV)
- Electronics work and troubleshooting
- Automotive measurements
- Home and hobby use
Specifications:
- DC voltage: 600V
- AC voltage: 600V
- DC current: 10A
- AC current: 10A
- Resistance: 40MΩ
- Capacitance: 4000μF
- True RMS: Yes, measures all waveform types
- NCV: Yes, non-contact voltage detection
- Continuity test: Yes
- Diode test: Yes
- Data hold: Yes
- Auto power off: Yes
- Low battery indication: Yes
- Audible and visual indication: NCV, continuity, and battery level
- Category rating: CAT III 600V
- Display size: 44 x 26 mm
- Powered by: 2x AAA batteries (not included)
- Weight: 130 g
- Dimensions: 130 x 65 x 28 mm
Accuracy:
- DC voltage: ±(0.5%+3)
- AC voltage: ±(0.8%+3)
- DC current: ±(1%+3)
- AC current: ±(1.2%+3)
- Resistance: ±(0.8%+2)
- Capacitance: ±(4%+5)
Included accessories:
- Manual
- Test probes
