Product description

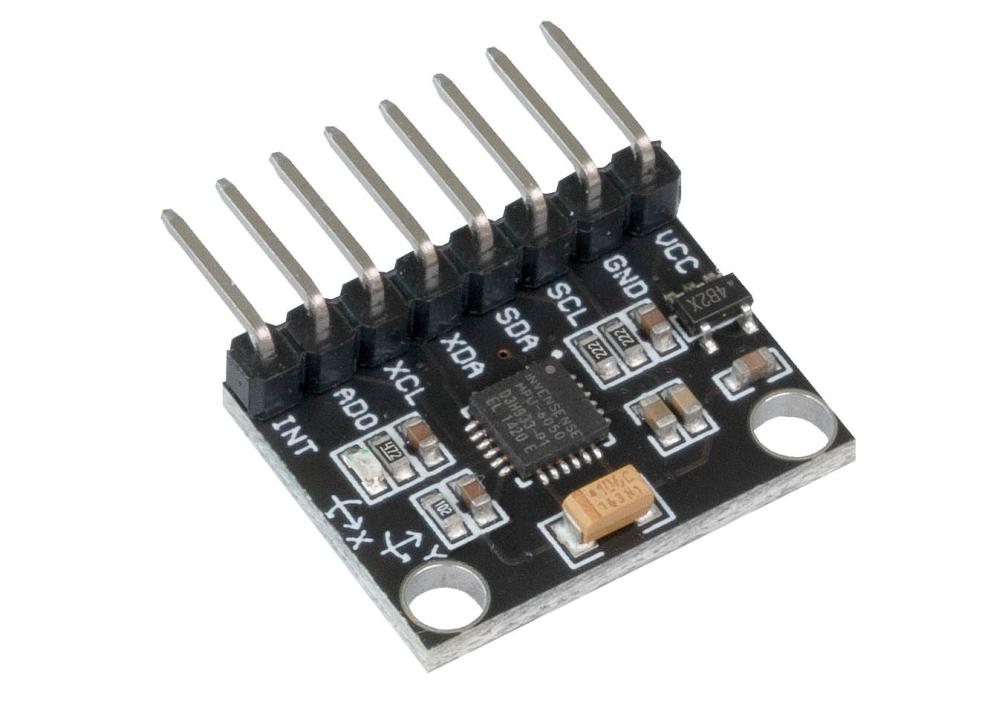

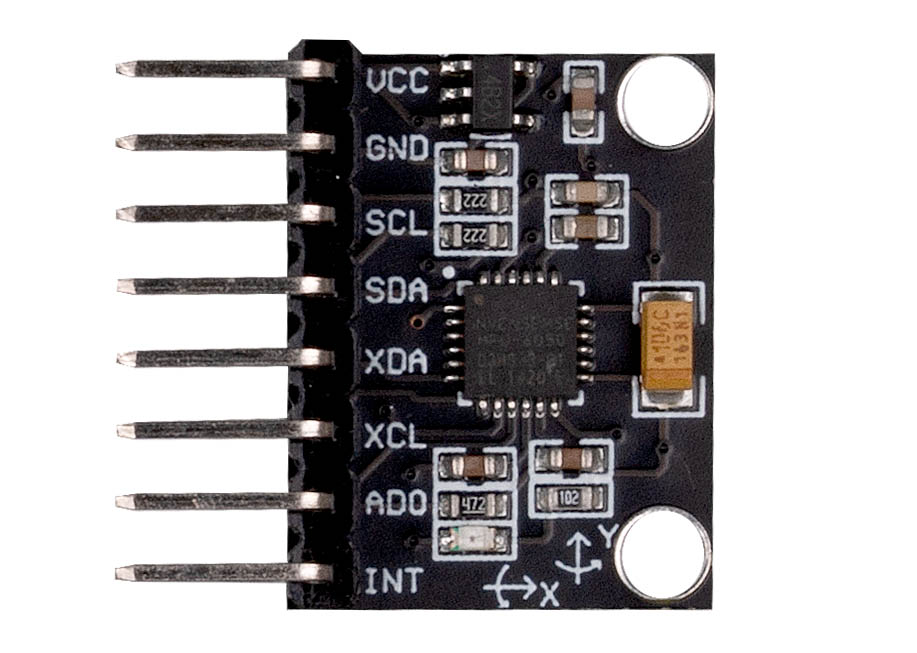

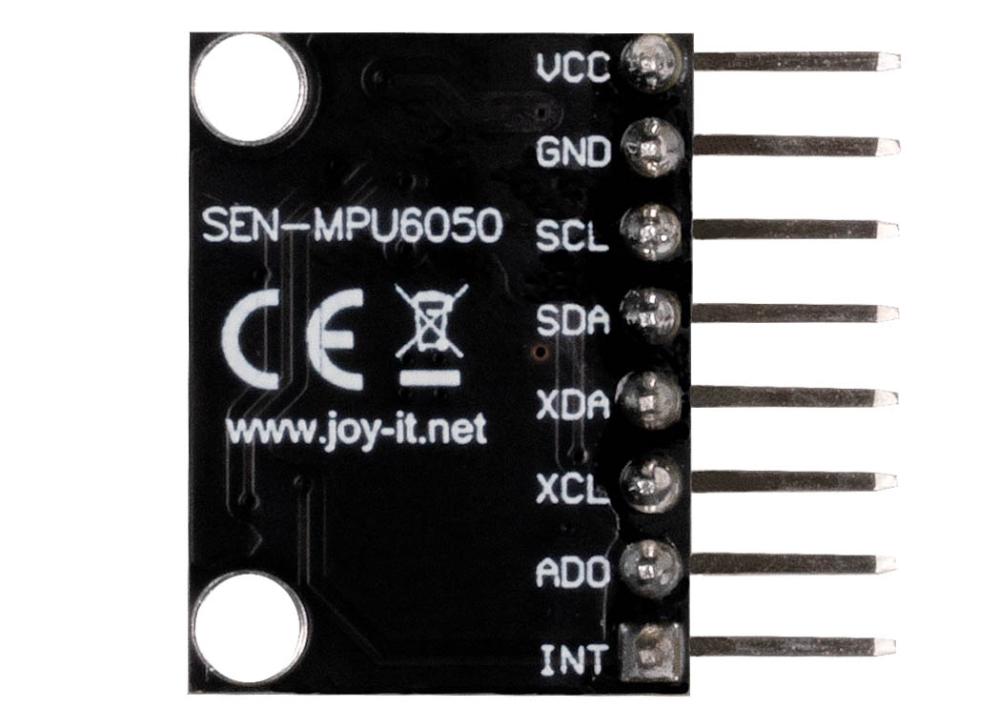

MPU6050 is a 6-axis motion sensor that combines a 3-axis accelerometer and a 3-axis gyroscope. Suitable for measuring linear acceleration and rotational speed in projects such as robotics, stabilization, navigation, and motion tracking. The sensor communicates via I²C and features a built-in 16-bit A/D converter as well as a low-voltage regulator. Includes standard pins with 2.54 mm pitch for use with e.g. breadboards. Supports multiple measurement ranges for both acceleration and angular velocity.
Specifications:
- IMU chip: MPU6050
- Supply voltage: 3.3 - 5 VDC
- Logic level: 3.3 V
- Degrees of freedom: 6 DOF
- Interface: I²C
- A/D converter: 16-bit
- Number of pins: 8
- Accelerometer range: ±2, ±4, ±8, ±16 g
- Gyroscope range: ±250, ±500, ±1000, ±2000 °/s
- Dimensions: 25 x 20 x 7 mm
