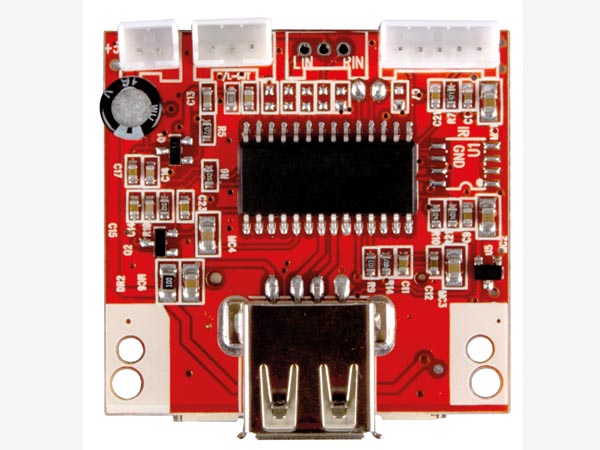

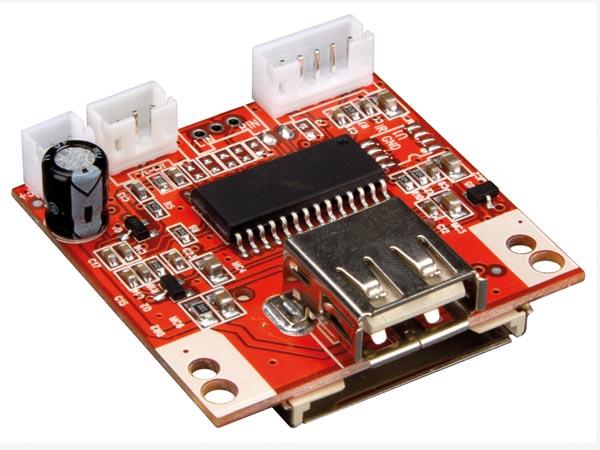

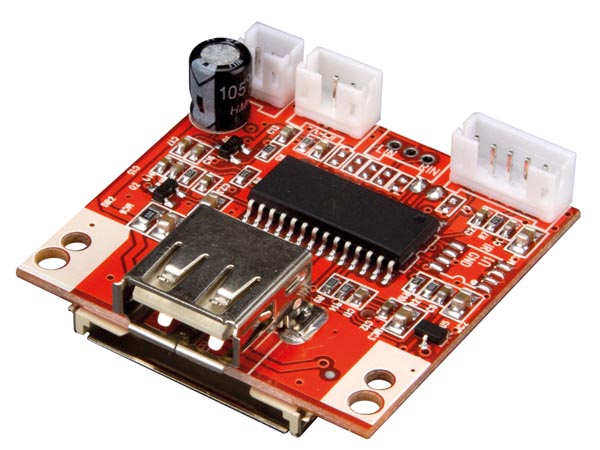

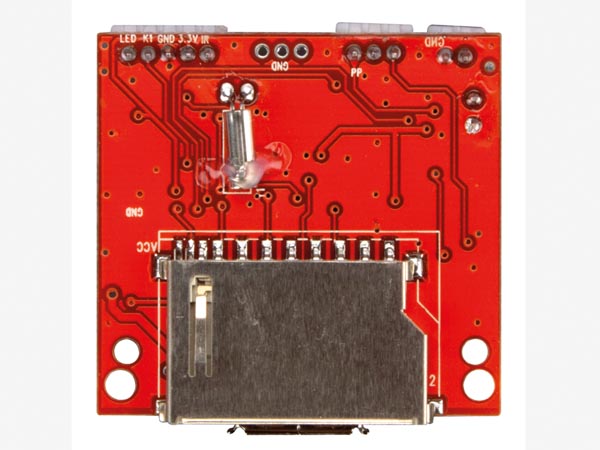

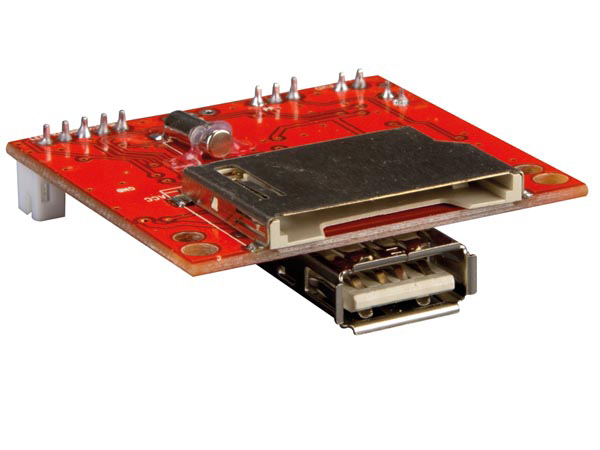

MP3 Jukebox

Barebone MP3 player. Reads MP3 files stored on a USB memory stick or SD card. Combine with a suitable amplifier to create a boombox! For automotive use (12V): Put a 68 ohm/1W resistor in series with the (+) of the power supply, to avoid excess dissipation.

Features:
* Pushbuttons for 'NEXT'-, 'PREVIOUS'- and 'PLAY/PAUSE'
* LED play/pause indicator
* Playback starts at power on
* Continuous looping of all tracks
* Stereo line level output

Specifications:
* Supported file format: mp3 (128kb/s, 192kb/s, 256kb/s, 320kb/s variable bit rate)
* Audio output: 500mV/47kOhm stereo line out
* Power supply: 5VDC or 9...12VDC/50mA max
* Dimensions: 45x40x8mm / 1.77x1.57x0.31"
