Push switch 19mm 1-p on-(on) vandal resistant IP65 @ electrokit
Push switch 19mm 1-p on-(on) vandal resistant IP65 @ electrokit

Push switch 19mm 1-p on-(on) vandal resistant IP65

Art no: 41033277
52 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 52:- 2pcs = 98:80 4pcs = 187:20

QuantityPrice
1 1
52 SEK
2 3
49.40 SEK
4 9
46.80 SEK
10
41.60 SEK
In stock, 19 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

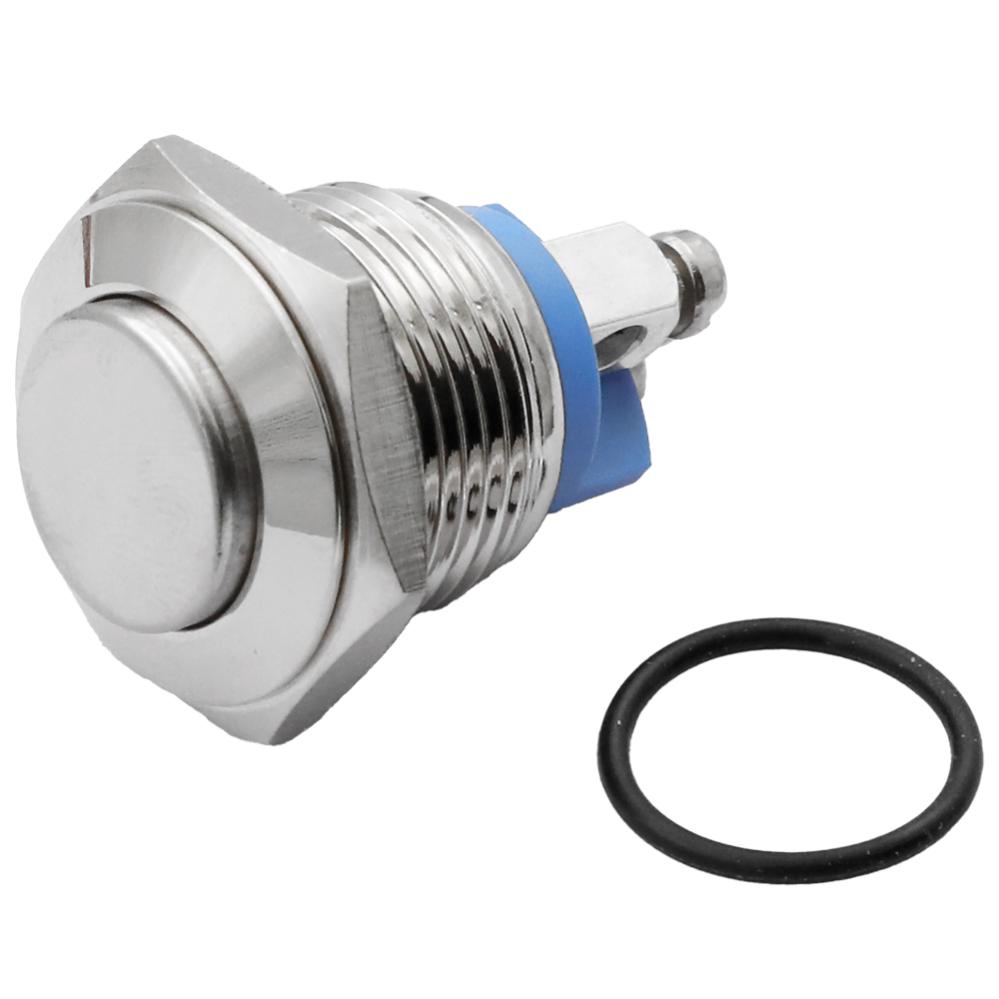

Vandal-proof momentary button (switch) for panel mounting. Prominent button.

Normally open, push-to-make (off-on).

Screw connection.

Waterproof according to IP65
Rated voltage/current (resistive load): 36V DC, 2A
Rated voltage/current (resistive load): 220V AC, 1A
Indication: none
Max contact resistance: 50mΩ

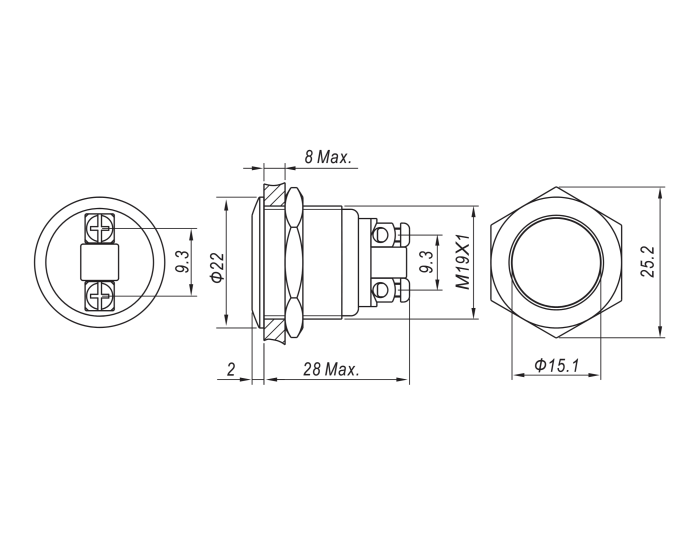

Mounting hole: Ø19mm
Mechanical life: >1000000 cycles
Electrical life: >50000 cycles
Operating temperature: -25 to +55°C
Operating force: 4N

Product information

  • SKU:

    41033277
