Product description

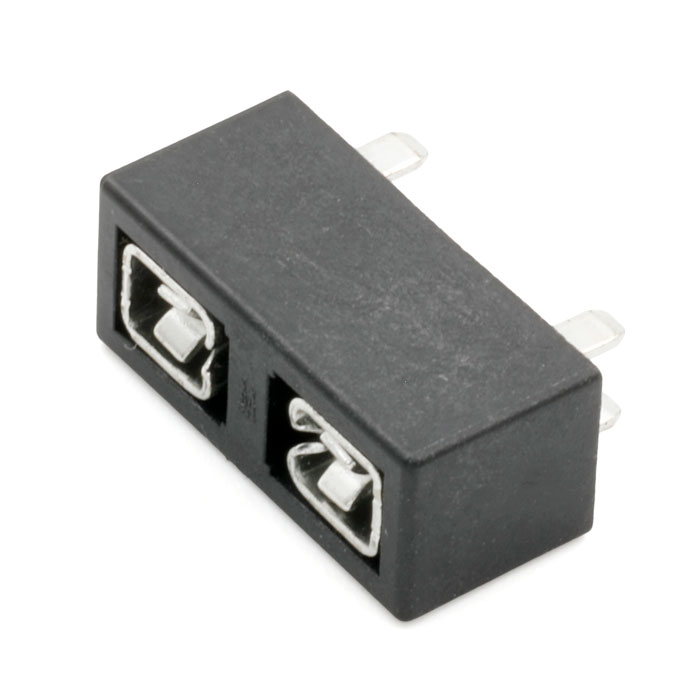

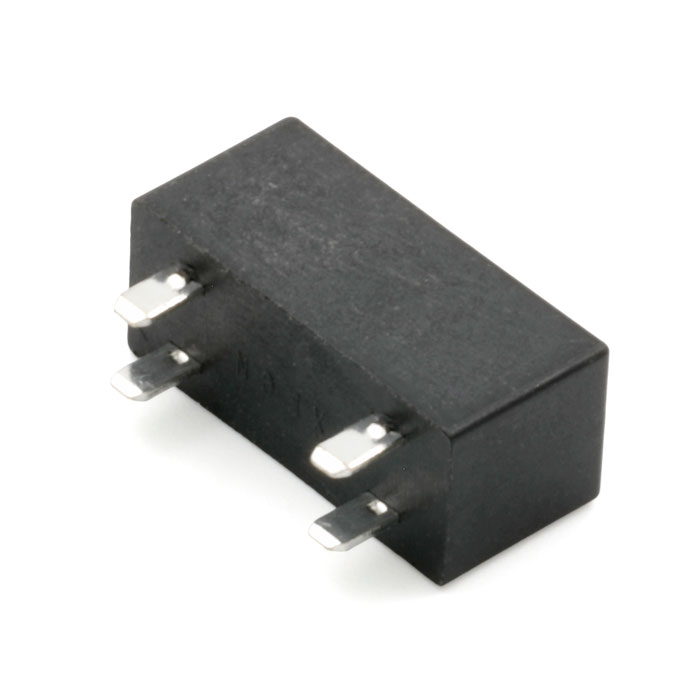

Fuse holder for PCB mounting, designed for MINI automotive blade fuses. The holder features an insulating housing made of flame-retardant thermoplastic and tin-plated copper-alloy terminals.
Specifications:
- Manufacturer: XFCN
- Model: XF-508P-B-B
- Type: Fuse holder
- Fuse type: automotive MINI / ATM blade fuse
- Mounting: PCB, THT
- Rated voltage: 500 V
- Current (max): 15 A (30 A)
- Insulation material: PET and PA66
- Flammability rating: UL94 V-0
- Terminals: Tin-plated copper alloy
- Insulation resistance: ≥10000 MΩ at 500 VDC
- Contact resistance: ≤5 mΩ
- Length: 16.00 mm
- Width: 6.70 mm
- Height above PCB: 7.35 mm
- Lead length: 2.85 mm
- Lead spacing (center-to-center): 9.80 mm
- Recommended hole diameter: ≥1.60 mm
