Product description

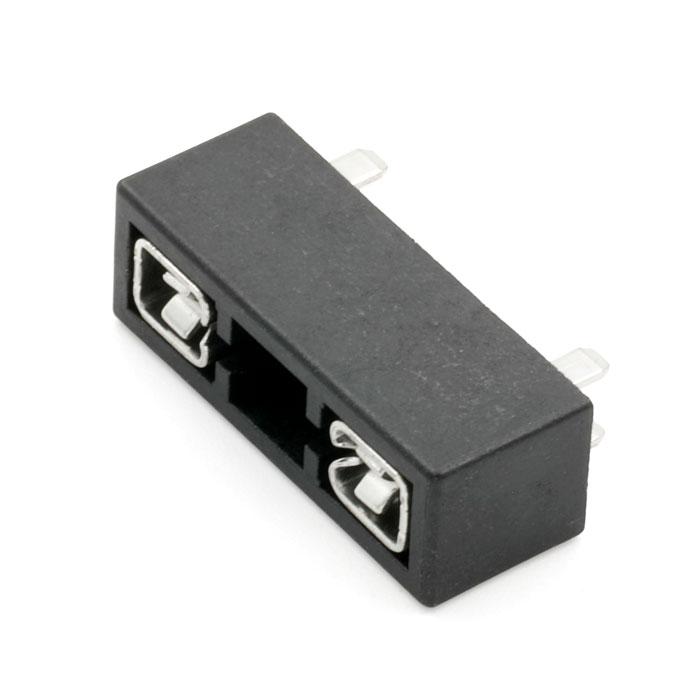

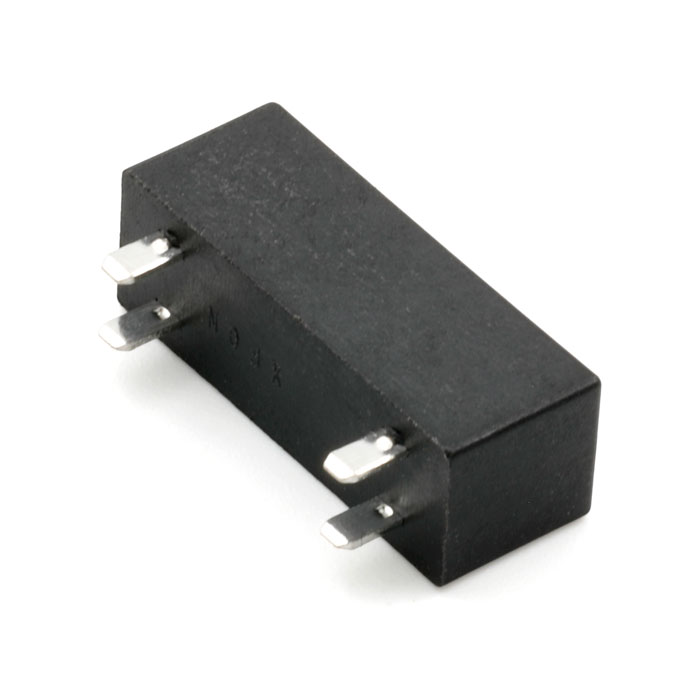

Fuse holder for PCB mounting, designed for MIDI / ATO / ATC automotive blade fuses. The holder features a black insulating housing made of flame-retardant thermoplastic and tin-plated copper-alloy terminals.
Specifications:
- Manufacturer: XFCN
- Model: XF-508P-A-B
- Type: Fuse holder for MIDI / ATO / ATC blade fuses
- Mounting: PCB, THT
- Rated voltage: 500 V
- Rated current (max): 15 A (30 A)
- Insulation material: PET and PA66
- Flammability rating: UL94 V-0
- Terminals: Tin-plated copper alloy
- Insulation resistance: ≥10000 MΩ at 500 VDC
- Contact resistance: ≤5 mΩ
- Ambient temperature: -40 to +125 °C
- Length: 19.80 mm
- Width: 6.70 mm
- Height above PCB: 7.35 mm
- Lead length: 2.85 mm
- Lead spacing, longitudinal (center-to-center): 13.47 mm
- Recommended hole diameter: ≥1.60 mm
