Mega proto screw shield

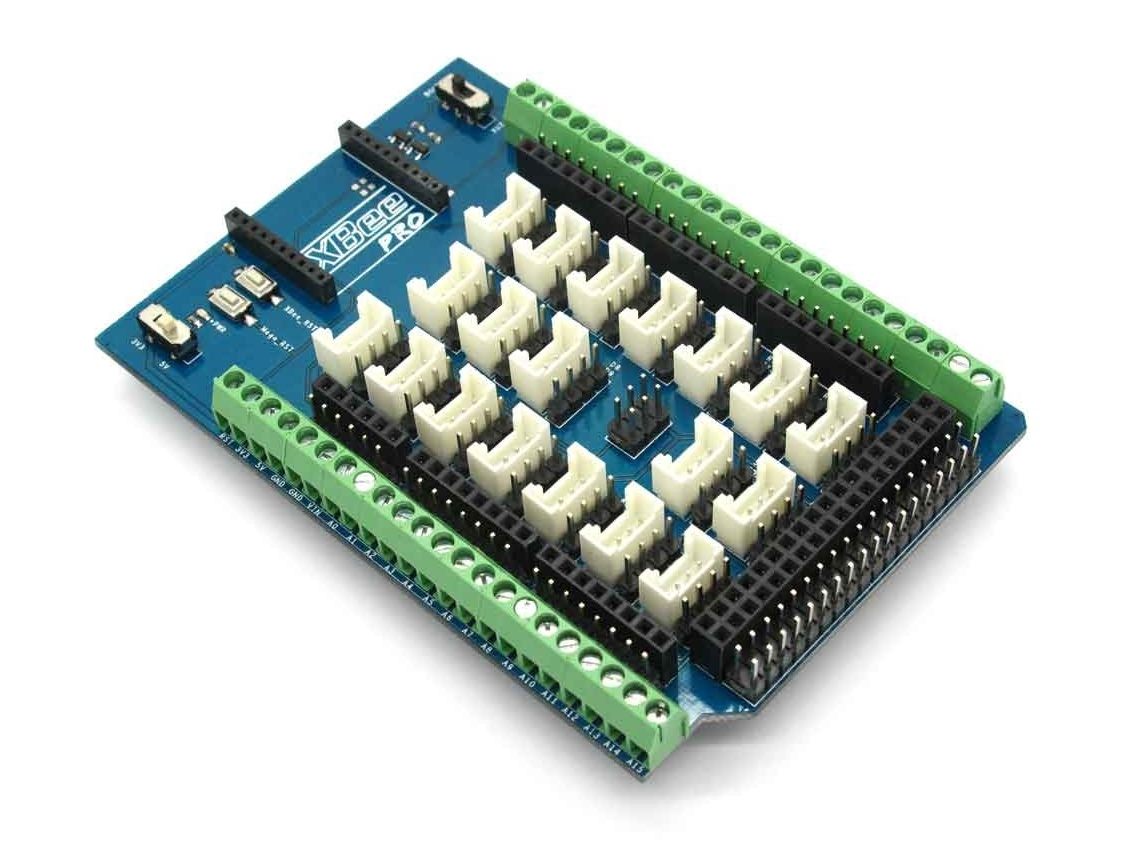

Mega Proto Screw Shield breaks out all pins of Arduino Mega 2560 and some of the pins are extended to 3.5mm-spacing screw terminals. Besides, it is equipped with 2.54 pitched universal electronic brick interface, 4-pin grove electronic brick interface as well as XBee interface for pins D0 ~ 21 and A0 ~ 15, which is a great help to design of our prototyping development board. In addition, the electronic brick interface has a level switch, which is compatible with mainboards of 3.3V operating level such as Arduino DUE.

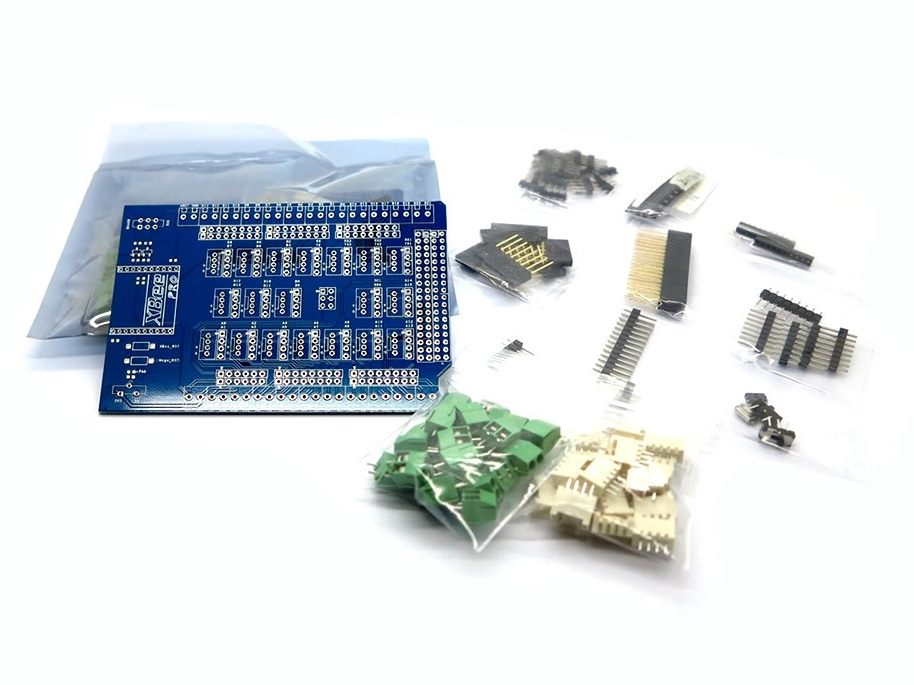

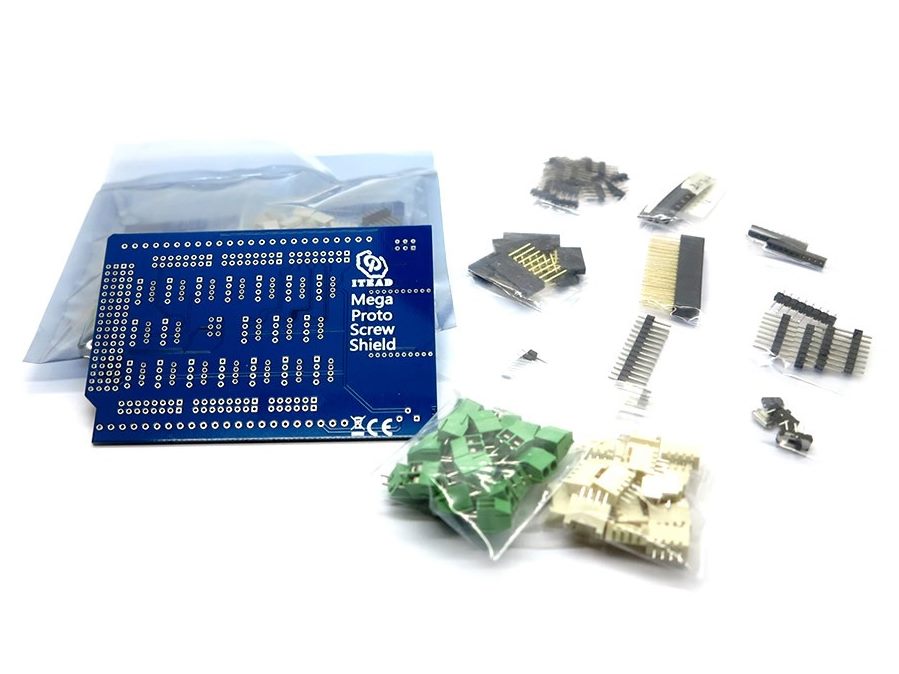

All of the components will NOT be welded, and we will attach them as accessories in the package.

PCB size 107.2mm X 73.3mm X 1.6mm
Operating level 3.3V or 5V
Indicator PWR
Interface 4-pin Grove interface, XBee interface, ISP
